Tractor · 2007Unverified

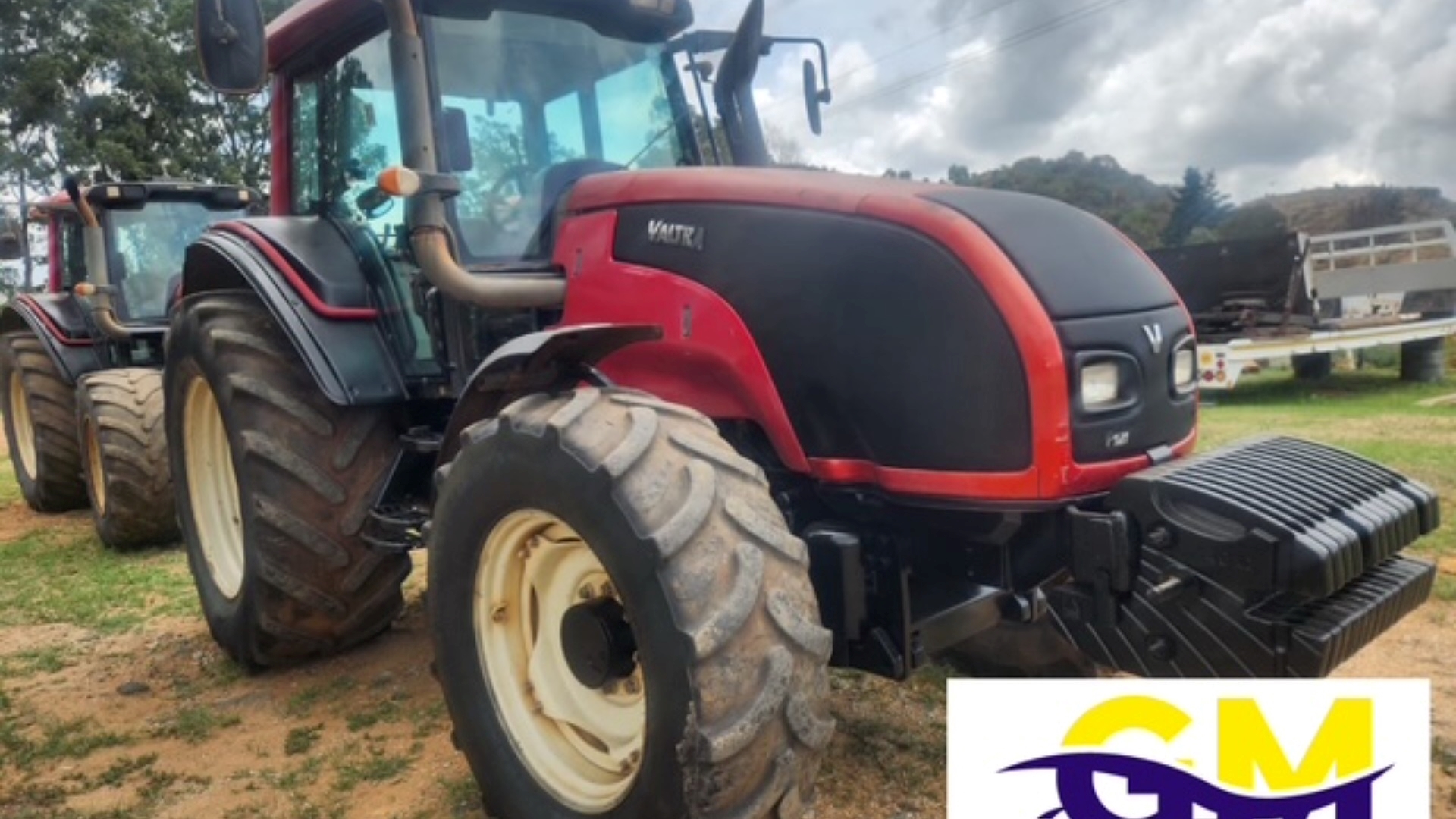

Valtra T121
Valtra T121 — T 1 Series · 133 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
133 hp
Weight
5651 kg
Hover a source tag to verify
Overview
ManufacturerValtraReference
Row-Crop tractorReference
Built in Suolahti, FinlandReference
Four-wheel driveReference
Differential lockfront and rearReference
Power steeringReference
Hydraulic disc brakesReference
Trailer brakespneumaticReference
Cab standard with air-conditioning.Reference
Variants
T121 Classicmechanical transmission and hydraulic controlReference
T121 HiTechelectronic transmission, mechanical hydraulicsReference
Engine
Sisu Diesel 6.6L 6-cyl dieselReference
Fuel tank165.0 LReference
Fuel tank169.9 LReference
Engine99.2 kWReference
Sisu Diesel 66 CTA-4VReference
turbocharged dieselReference
6-cylinder 24-valveReference
liquid-cooled inlineReference
Displacement6.6 LReference
Bore/Stroke108 x 120 mmReference
EmissionsTier 3Reference
Power99.2 kWReference
Fuel systemcommon railReference
Rated RPM2200Reference
Torque550.1 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
36-speed three-speed power shiftReference
TransmissionDeltaReference
Typethree-speed power shiftReference
Gears36 forward and reverseReference
Clutchwet discReference
Four gears in three ranges with three-speed power shift and power shuttle.Reference
PTO & Hydraulics
Typeopen centerReference
Pressure196.0 barReference
Pump flow73.1 lpmReference
Rear TypeIIIReference
Rear lift7702 kgReference
Front lift3499 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540E@1539Reference
Engine RPM540@1874Reference
Engine RPM1000@2000Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase274 cmReference
Weight5651 kgReference
Front tire14.9R28Reference
Rear tire20.8R38Reference
Ag front14.9R28Reference
Ag rear20.8R38Reference
Length515 cmReference
Width233 cmReference
Height (cab)299 cmReference
Height (exhaust)290 cmReference
Ground clearance54 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Battery AH184Reference
Speeds
With 650/65R42 rear tires and 40kph transmission option.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
