Tractor · 2022Unverified

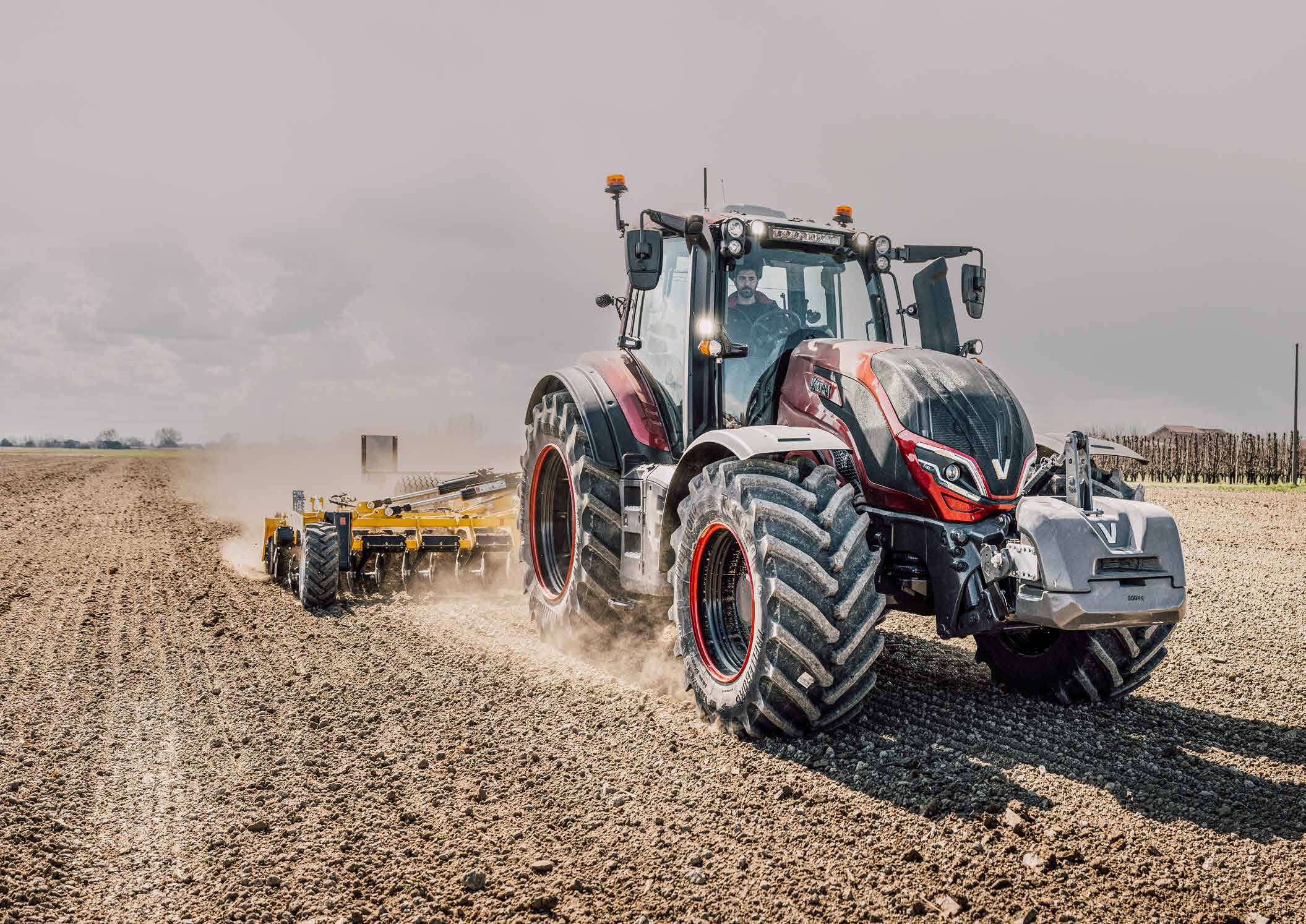

Valtra T145

Name: Valtra T145
Brand: Valtra

Valtra T145 — T 5 Series · 155 hp. Reference specifications; pending source verification.

The Valtra T145 is a tractor with a rated power of 155 hp, positioning it at the higher end of its class. It was manufactured in 2022. The tractor features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with a four-wheel drive transmission that includes a powershift system. Its operating weight is listed as 7667 kg.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

155 hp

Max power

170 hp (1,900 rpm)

Weight

7667 kg

Catalogue coverage

Variants represented

Richest spec table

97 rows

Recorded power

155 hp

Recorded weight

7667 kg

Transmissions

30-speed five-speed power shift

Production years

2022-2022

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerValtra (a part of AGCO)Reference

Row-Crop tractorReference

Built in Suolahti, FinlandReference

Four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

AGCO Power 6.6L 6-cyl dieselReference

Fuel tank380.0 LReference

Fuel tank249.8 LReference

Exhaust fluid (DEF)70.0 LReference

Engine (max)115.6 kWReference

Engine (boost)126.8 kWReference

AGCO Power 66 LFTN-D5Reference

turbocharged intercooled dieselReference

6-cylinder 24-valveReference

liquid-cooled inlineReference

Displacement6.6 LReference

Bore/Stroke108 x 120 mmReference

EmissionsStage VReference

Maximum Power115.6 kWReference

Boost Power126.8 kWReference

Rated RPM2100Reference

Torque640.0 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Fuel TypeDieselReference

No of Cylinders6Reference

Rated engine speed2,100 rpmReference

Emissions complianceStage VReference

Engine torque at rated speed680 NmReference

Interval for engine oil change600 hReference

Transmission

30-speed five-speed power shiftReference

continuously-variable transmissionReference

Typefive-speed power shiftReference

Gears30 forward and reverseReference

Clutchwet discReference

Five power shift gears in four fields ranges and two creeper ranges with power shuttle.Reference

Typecontinuously-variable transmissionReference

Gearsinfinite forward and reverseReference

Transmission TypePowershiftReference

forward and reverse options30x30Reference

Wheel Drive4WDReference

PTO & Hydraulics

Typeopen centerReference

Typeclosed center load-sensingReference

Rear valves5Reference

Front valves4Reference

Pump flow73.1 lpmReference

Pump flow90.1 lpmReference

Pump flow115.1 lpmReference

Pump flow160.1 lpmReference

Pump flow199.8 lpmReference

Rear TypeIIIReference

Rear lift8259 kgReference

Rear lift9687 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Engine RPM540E@1522Reference

Engine RPM540@1890Reference

Engine RPM1000@1897Reference

Front PTOindependentReference

Front PTO Type1000Reference

Engine RPM1000@2000Reference

Dimensions

Wheelbase299 cmReference

Weight7667 kgReference

Front tire540/65R28Reference

Rear tire650/65R38Reference

Standard tires (ag)Front: 540/65R28. Rear: 650/65R38Reference

Optional tires (ag)Front: 600/65R28. Rear: 710/70R38Reference

Length580 cmReference

Width255 cmReference

Height (cab)312 cmReference

Max weight13500 kgReference

Clearance (rear axle)59 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Capacities

Capacity6.6 LReference

Diesel exhaust fluid (DEF) tank70 LReference

Power

Max Power170 hp (1,900 rpm)Reference

Rated Power155 hpReference

PTO

Rear PTO RPM1,000 rpmReference

Front PTO PowerAvailableReference

Engine Speed on Rear PTO speed1,897 rpmReference

Engine Speed on Front PTO speed2,000 rpmReference

Hydraulics

Pump Rated Output (total)115 l/minReference

Hydraulics TypeOpen center/Load SensingReference

Remote Valves9Reference

General

SCV controlJoystick: AvailableReference

Dimensions & weight

Overall Height3,130 mmReference

Overall Length5,800 mmReference

Overall Width2,550 mmReference

Ground Clearance560 mmReference

Turning radius5.25 m (without Brakes)Reference

Overall weight7,300 kgReference

Operator station

Cab AvailabilityTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
