Tractor · 2009Unverified

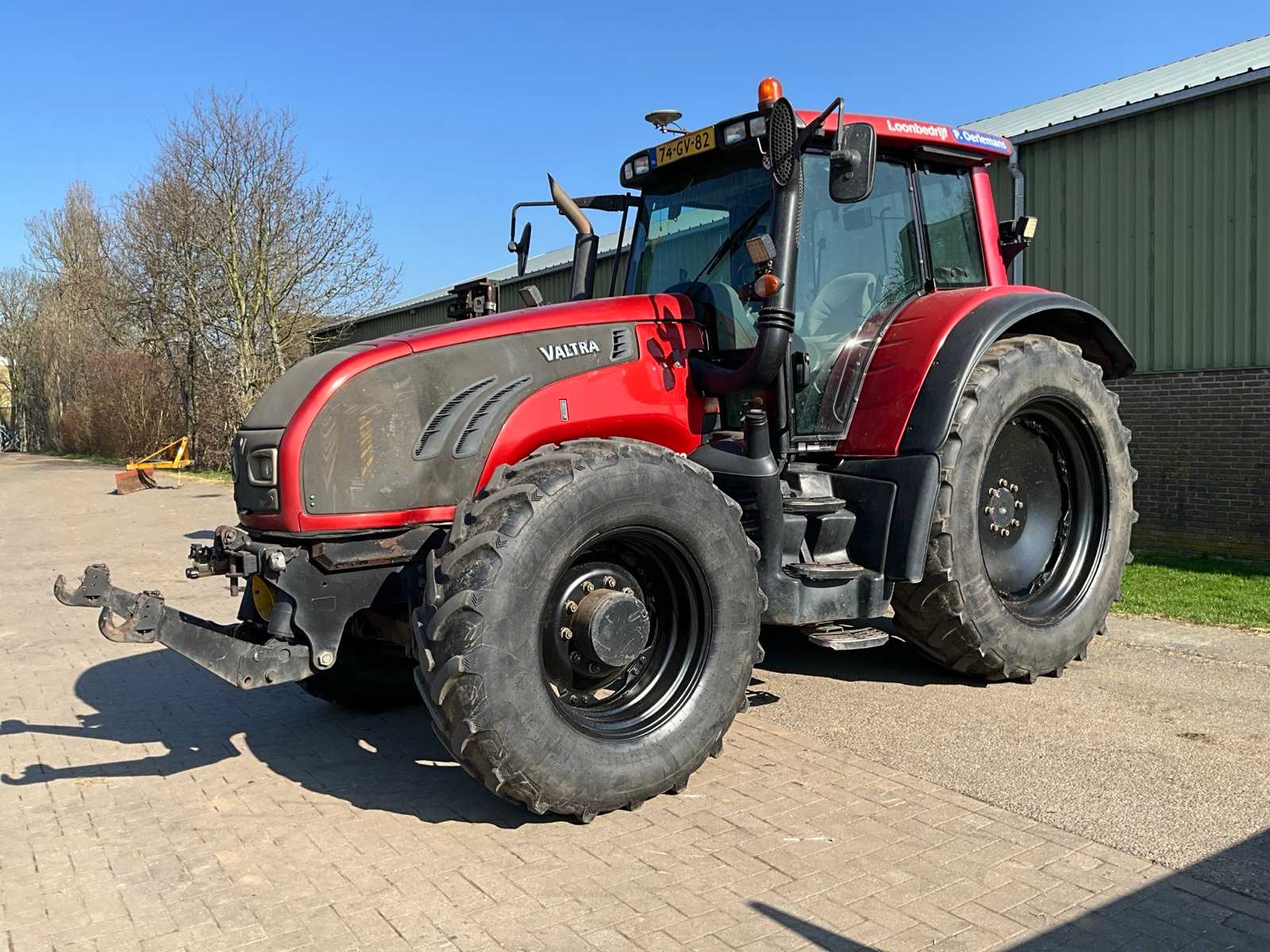

Valtra T152
Valtra T152 — T 2 Series · 150 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
150 hp
Weight
5860 kg
Hover a source tag to verify
Overview
ManufacturerValtra (a part of AGCO)Reference
Row-Crop tractorReference
Built in Suolahti, FinlandReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Variants
Versupower shiftReference
DirectCVTReference
Engine
SisuPower 6.6L 6-cyl dieselReference
Engine (gross)111.9 kWReference
Engine (max)116.3 kWReference
SisuPower 66 CTA-4VReference
turbocharged dieselReference
6-cylinder 24-valveReference
liquid-cooled inlineReference
Displacement6.6 LReference
Bore/Stroke108 x 120 mmReference
Rated Power (gross)111.9 kWReference
Maximum Power (gross)116.3 kWReference
Maximum Power (gross)121.5 kWReference
Rated RPM2200Reference
Torque630.5 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
30-speed five-speed power shiftReference
continuously-variable transmissionReference
TransmissionVersuReference
Typefive-speed power shiftReference
Gears30 forward and reverseReference
Clutchwet discReference
Five power shift gears in six ranges with power shuttle.Reference
TransmissionNordic CVTReference
Typecontinuously-variable transmissionReference
Gearsinfinite forward and reverseReference
Capacities
Fuel375.1 LReference
PTO & Hydraulics
Hydraulic system46.9 LReference
Typeload-sensingReference
Capacity46.9 LReference
Rear valves3 to 5Reference
Front valves3Reference
Pump flow115.1 lpmReference
Pump flow160.1 lpmReference
Rear TypeIIIReference
Rear lift8099 kgReference
Rear lift8500 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Engine RPM540E@1539Reference
Engine RPM540@1874Reference
Engine RPM1000@2000Reference
Dimensions
Wheelbase274 cmReference
Weight5860 kgReference
Front tire540/65R28Reference
Rear tire650/65R38Reference
Standard tires (ag)Front: 540/65R28. Rear: 650/65R38Reference
Length514 cmReference
Width233 cmReference
Height (cab)299 cmReference
Clearance (rear axle)55 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
