Tractor · 2012Unverified

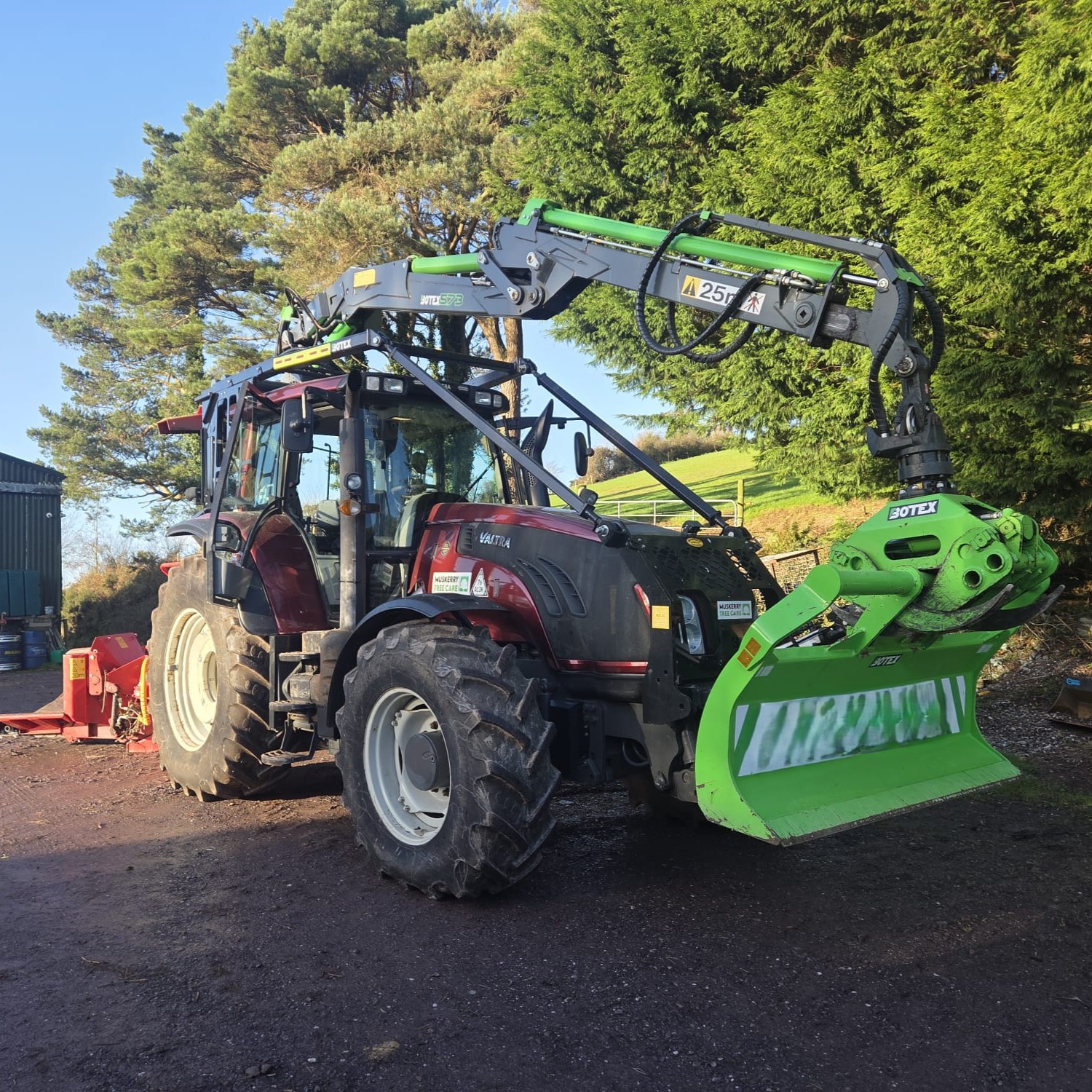

Valtra T163

Name: Valtra T163
Brand: Valtra

Valtra T163 — T 3 Series · 170 hp. Reference specifications; pending source verification.

The Valtra T163 is a tractor with a power output of 170 hp, positioning it among the more powerful models in its class. Manufactured from 2012 to 2015, this model features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, which drives a four-wheel drive system via a continuously variable transmission. The T163 is designed for use on plots of land ranging from approximately 600 to 1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

170 hp

Catalogue coverage

Variants represented

Richest spec table

60 rows

Recorded power

170 hp

Transmissions

30-speed five-speed power shift

Production years

2012-2015

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerValtra (a part of AGCO)Reference

Row-Crop tractorReference

Built in Suolahti, FinlandReference

Four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

AGCO Power 7.4L 6-cyl dieselReference

Fuel tank285.0 LReference

Fuel tank375.1 LReference

Exhaust fluid (DEF)26.9 LReference

Engine (max)126.8 kWReference

Engine (boost)138.0 kWReference

AGCO Power 74 AWI-4VReference

turbocharged intercooled dieselReference

6-cylinder 24-valveReference

liquid-cooled inlineReference

Displacement7.4 LReference

Bore/Stroke108 x 134 mmReference

EmissionsStage IIIBReference

Maximum Power126.8 kWReference

Boost Power138.0 kWReference

Torque740.4 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Transmission

30-speed five-speed power shiftReference

continuously-variable transmissionReference

TransmissionVersuReference

Typefive-speed power shiftReference

Gears30 forward and reverseReference

Clutchwet discReference

TransmissionNordic CVTReference

Typecontinuously-variable transmissionReference

Gearsinfinite forward and reverseReference

PTO & Hydraulics

Typeclosed center load-sensingReference

Rear valves7Reference

Front valves3Reference

Pump flow115.1 lpmReference

Pump flow160.1 lpmReference

Rear TypeIIIReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Engine RPM540E@1539Reference

Engine RPM540@1874Reference

Engine RPM1000@2000Reference

Front PTOindependentReference

Front PTO Type1000Reference

Engine RPM1000@1920Reference

Dimensions

Wheelbase274 cmReference

Front tire16.9R28Reference

Rear tire20.8R38Reference

Standard tires (ag)Front: 16.9R28. Rear: 20.8R38Reference

Length514 cmReference

Width233 cmReference

Height (cab)304 cmReference

Clearance (rear axle)59 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
