Tractor · 2007Unverified

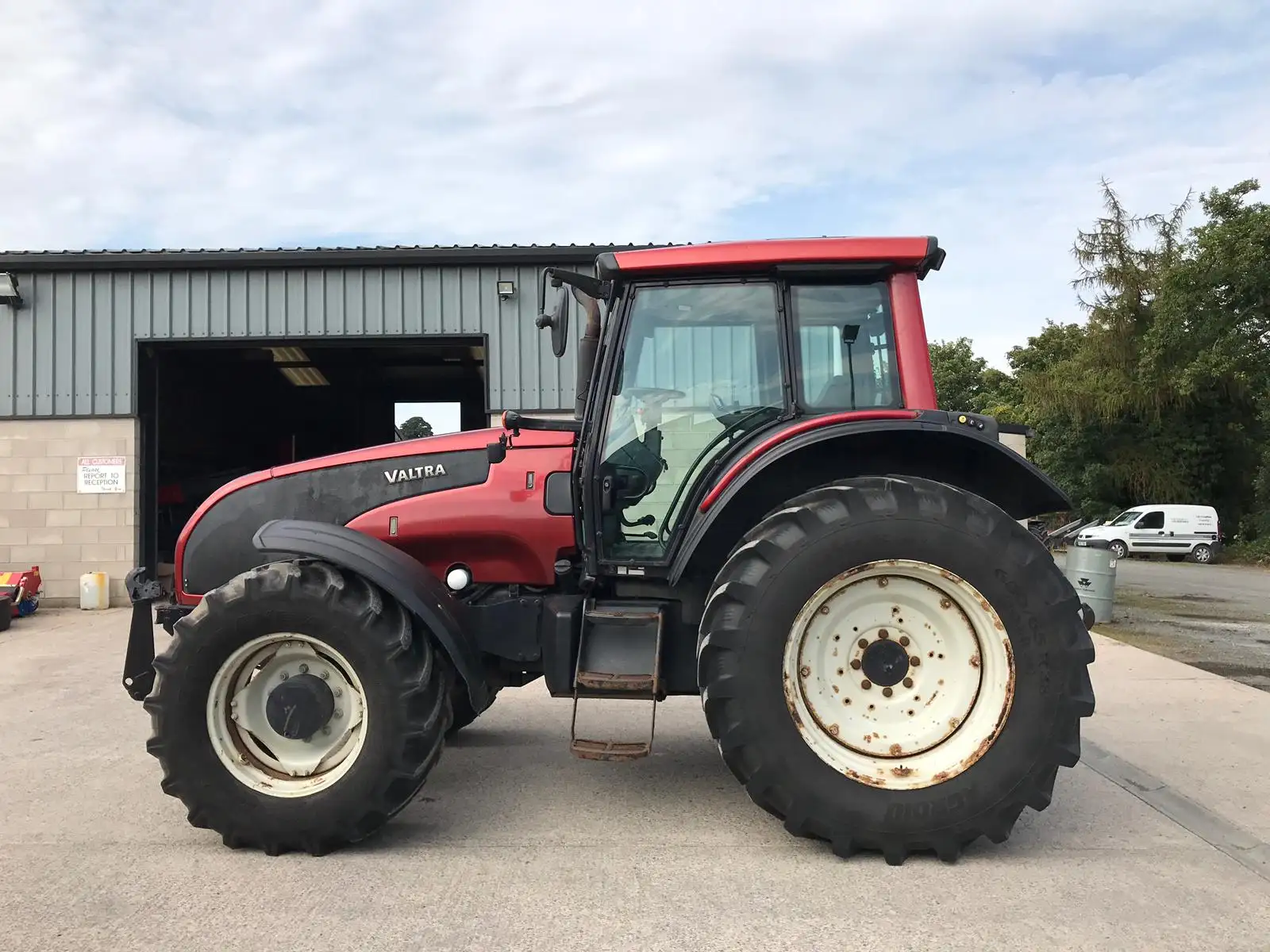

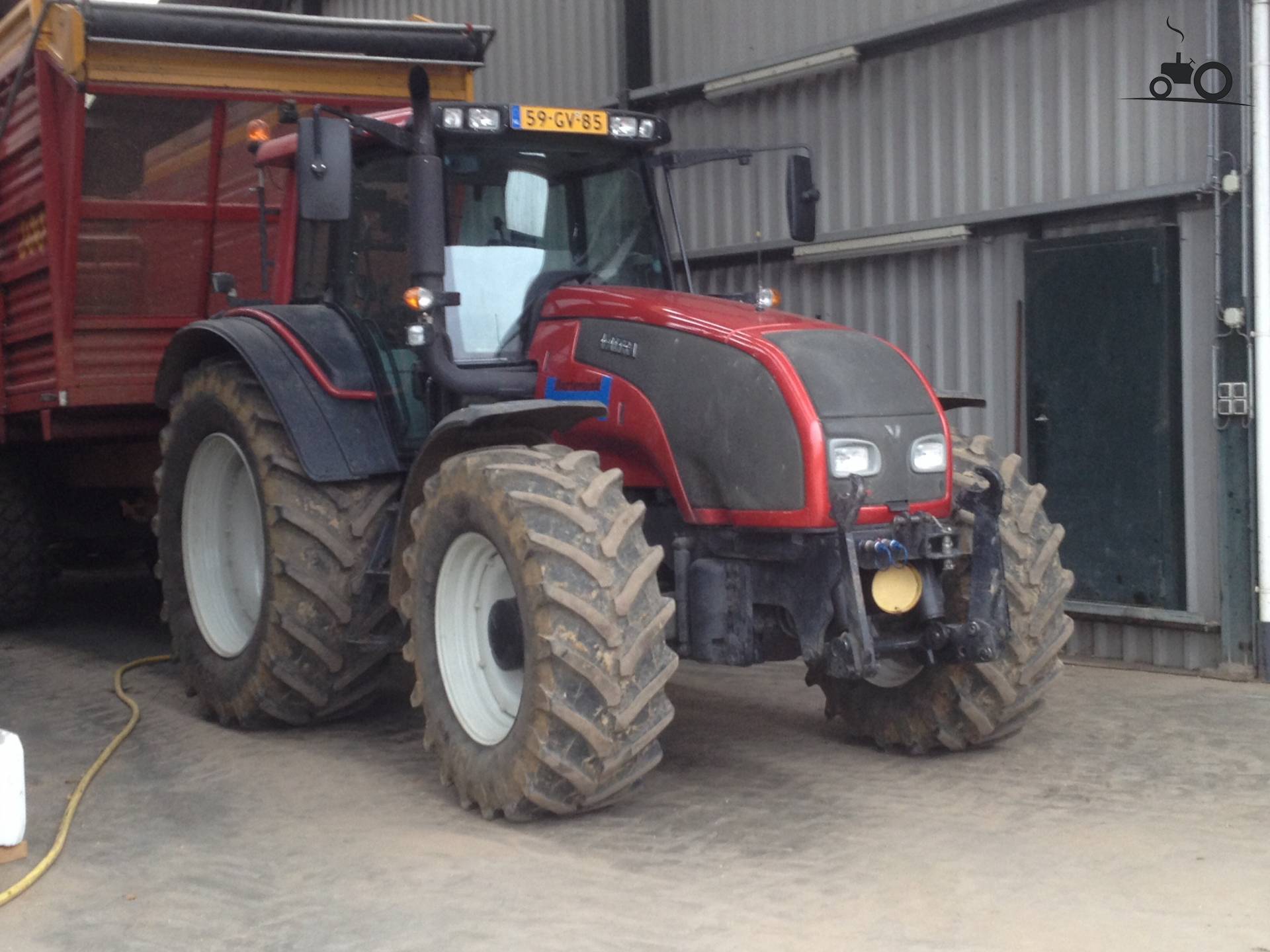

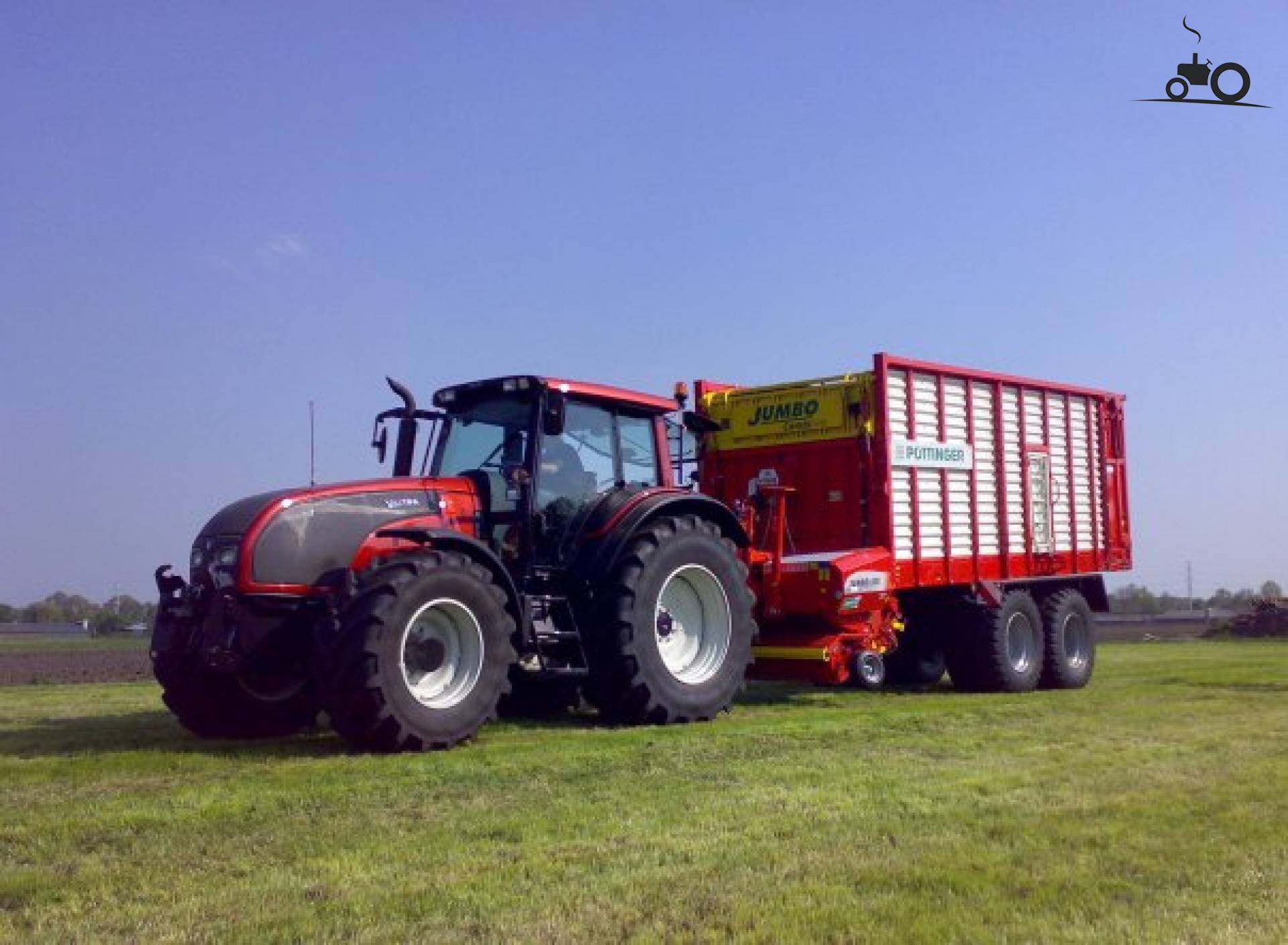

Valtra T171
Valtra T171 — T 1 Series · 180 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
180 hp
Weight
5951 kg
Hover a source tag to verify
Overview
ManufacturerValtraReference
Row-Crop tractorReference
Built in Suolahti, FinlandReference
Four-wheel driveReference
Differential lockfront and rearReference
Power steeringReference
Hydraulic disc brakesReference
Trailer brakespneumaticReference
Cab standard with air-conditioning.Reference
Variants
T171 Classicmechanical transmission and hydraulic controlReference
T171 HiTechelectronic transmission, mechanical hydraulicsReference
T171 Advanceeletronic transmission and hydraulic controlReference
Engine
Sisu Diesel 7.4L 6-cyl dieselReference
Fuel tank165.0 LReference
Fuel tank169.9 LReference
Engine134.2 kWReference
Sisu Diesel 74 CTA-4VReference
turbocharged dieselReference
6-cylinder 24-valveReference
liquid-cooled inlineReference
Displacement7.4 LReference
Bore/Stroke108 x 134 mmReference
EmissionsTier 3Reference
Power134.2 kWReference
Fuel systemcommon railReference
Rated RPM2200Reference
Torque670.1 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
36-speed three-speed power shiftReference
TransmissionDeltaReference
Typethree-speed power shiftReference
Gears36 forward and reverseReference
Classic Clutchdry discReference
HiTech Clutchwet discReference
Four gears in three ranges with three-speed power shift and power shuttle.Reference
PTO & Hydraulics
Typeopen centerReference
Pressure196.0 barReference
Pressure205.0 barReference
Pump flow73.1 lpmReference
Pump flow115.1 lpmReference
Rear TypeIIIReference
Rear lift7702 kgReference
Rear lift8101 kgReference
Front lift3499 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540E@1539Reference
Engine RPM540@1874Reference
Engine RPM1000@2000Reference
Front PTOindependentReference
Front PTO Type1000Reference
Dimensions
Wheelbase274 cmReference
Weight5951 kgReference
Front tire460/85R30Reference
Rear tire20.8R42Reference
Ag front460/85R30Reference
Ag rear20.8R42Reference
Length515 cmReference
Width233 cmReference
Height (cab)340 cmReference
Height (exhaust)300 cmReference
Ground clearance59 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Battery AH184Reference
Speeds
With 650/65R42 rear tires and 50kph transmission option.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
