Tractor · 2002Unverified

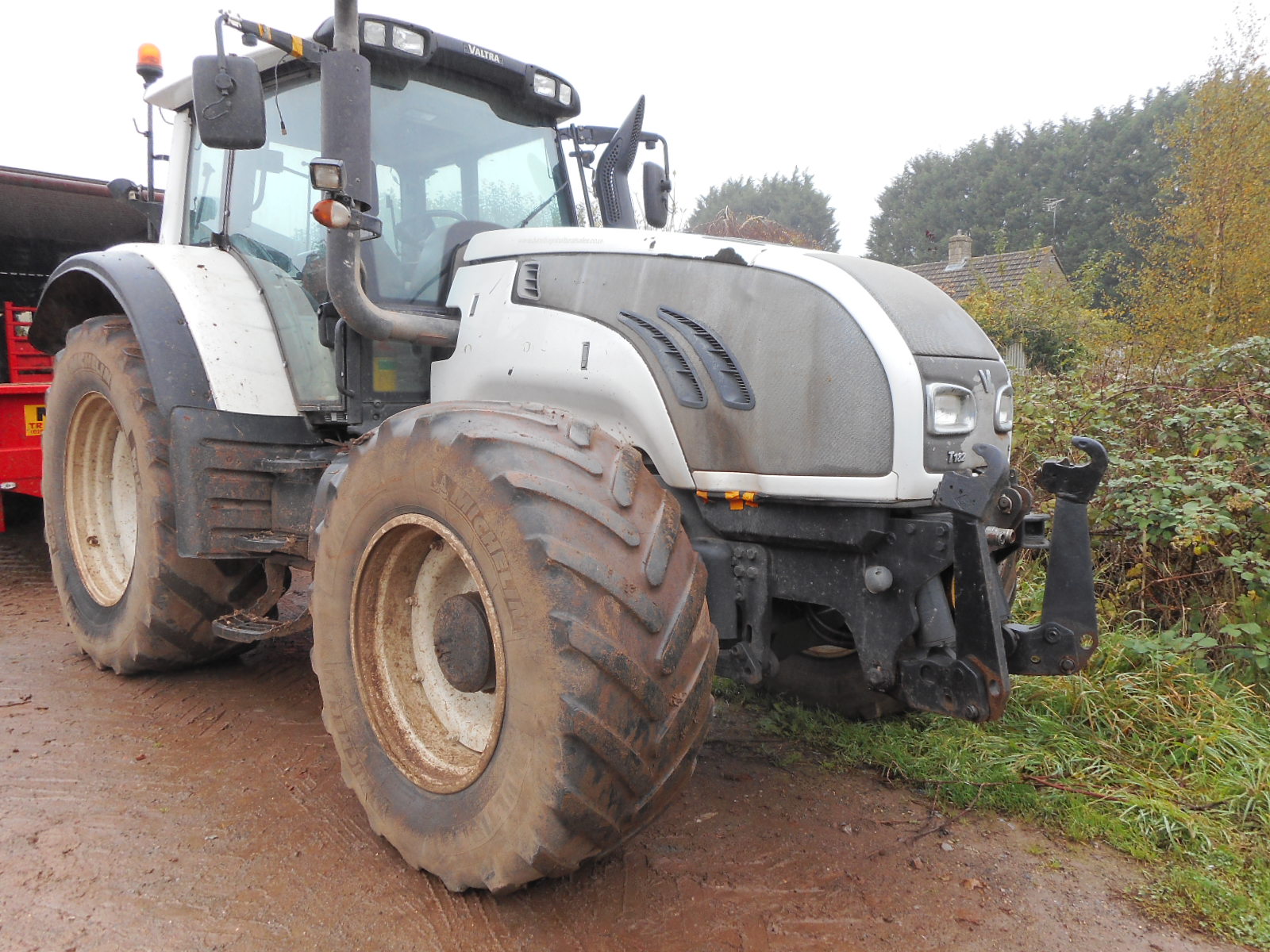

Valtra T180
Valtra T180 — Model year 2002-20042004-2007 · 174 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
174 hp
Weight
5950 kg
Hover a source tag to verify
Overview
ManufacturerValtraReference
Row-Crop tractorReference
Built in Suolahti, FinlandReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Sisu Diesel 7.4L 6-cyl dieselReference
Fuel tank165.0 LReference
Engine (gross)129.8 kWReference
Engine (max)140.9 kWReference
Sisu Diesel 634 DSRAEReference
intercooled turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
The Sigma Power electronic fuel injection provides different power levels based on load. The engine is rated at 174 HP and increases to 189 HP with the 2nd or 3rd power shift gears are selected.Reference
Displacement7.4 LReference
Bore/Stroke108 x 134 mmReference
Power (gross)129.8 kWReference
Maximum Power140.9 kWReference
Cooling systemviscous fanReference
Rated RPM2100Reference
Torque745.1 NmReference
Torque RPM1400Reference
Starter volts12Reference
Starter power3.6 kWReference
Transmission
36-speed 3-speed power shiftReference
Type3-speed power shiftReference
Gears36 forward and reverseReference
Clutchwet discReference
Three speed power shift with power shuttle.Reference
PTO & Hydraulics
Typeload sensingReference
Pressure196.0 barReference
Valves2 to 4Reference
Total flow90.1 lpmReference
Rear TypeIIIReference
Rear lift (at ends)7700 kgReference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Rear PTO Type540E/1000Reference
Engine RPM540@1874Reference
Engine RPM1000@2000Reference
Dimensions
Wheelbase274 cmReference
Weight5950 kgReference
Front tire16.9R28Reference
Rear tire20.8R38Reference
Ag front16.9R28Reference
Ag rear20.8R38Reference
Length514 cmReference
Width233 cmReference
Height (cab)303 cmReference
Height (exhaust)296 cmReference
Clearance (front axle)59 cmReference
Clearance (rear axle)59 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
