Tractor · 2022Unverified

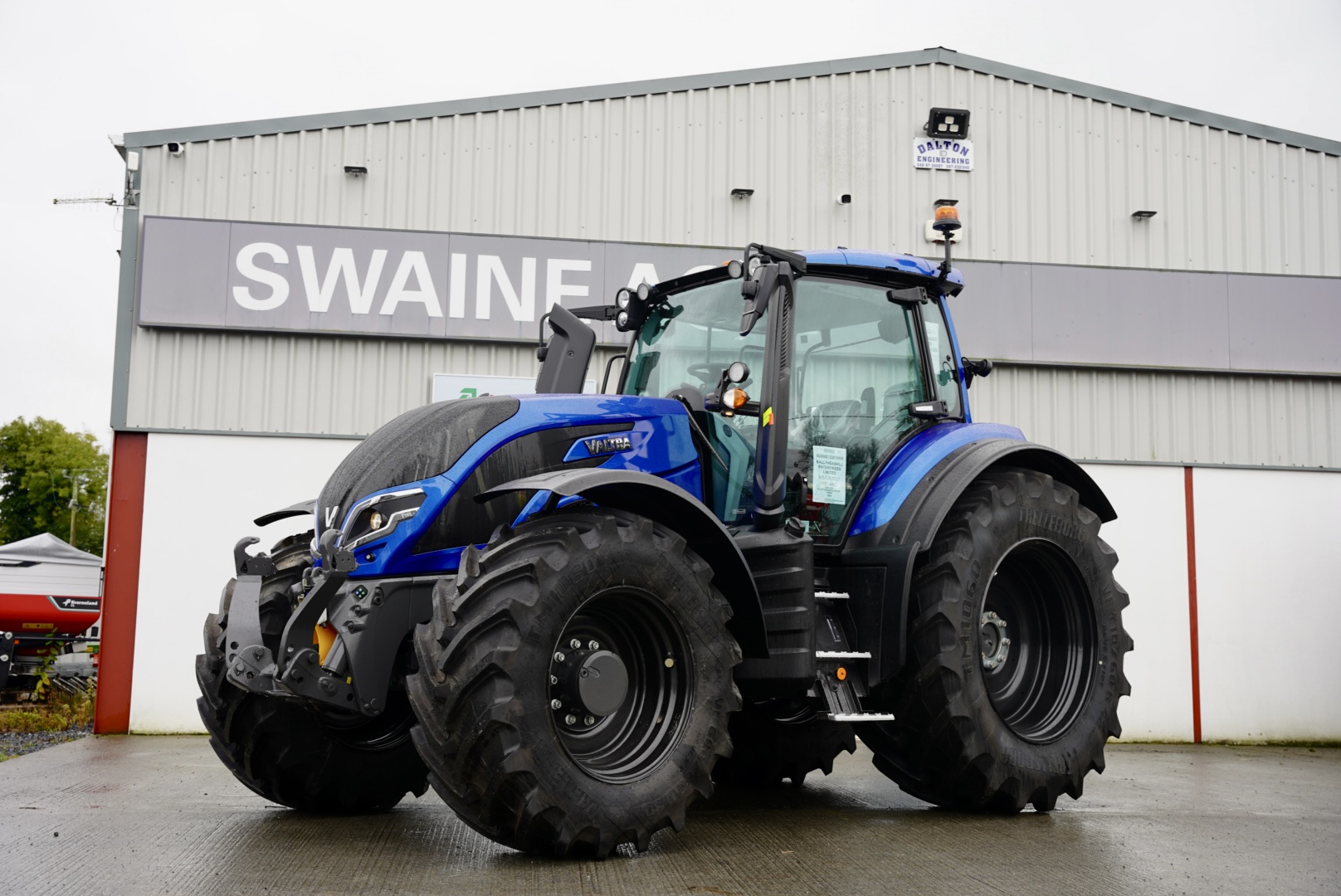

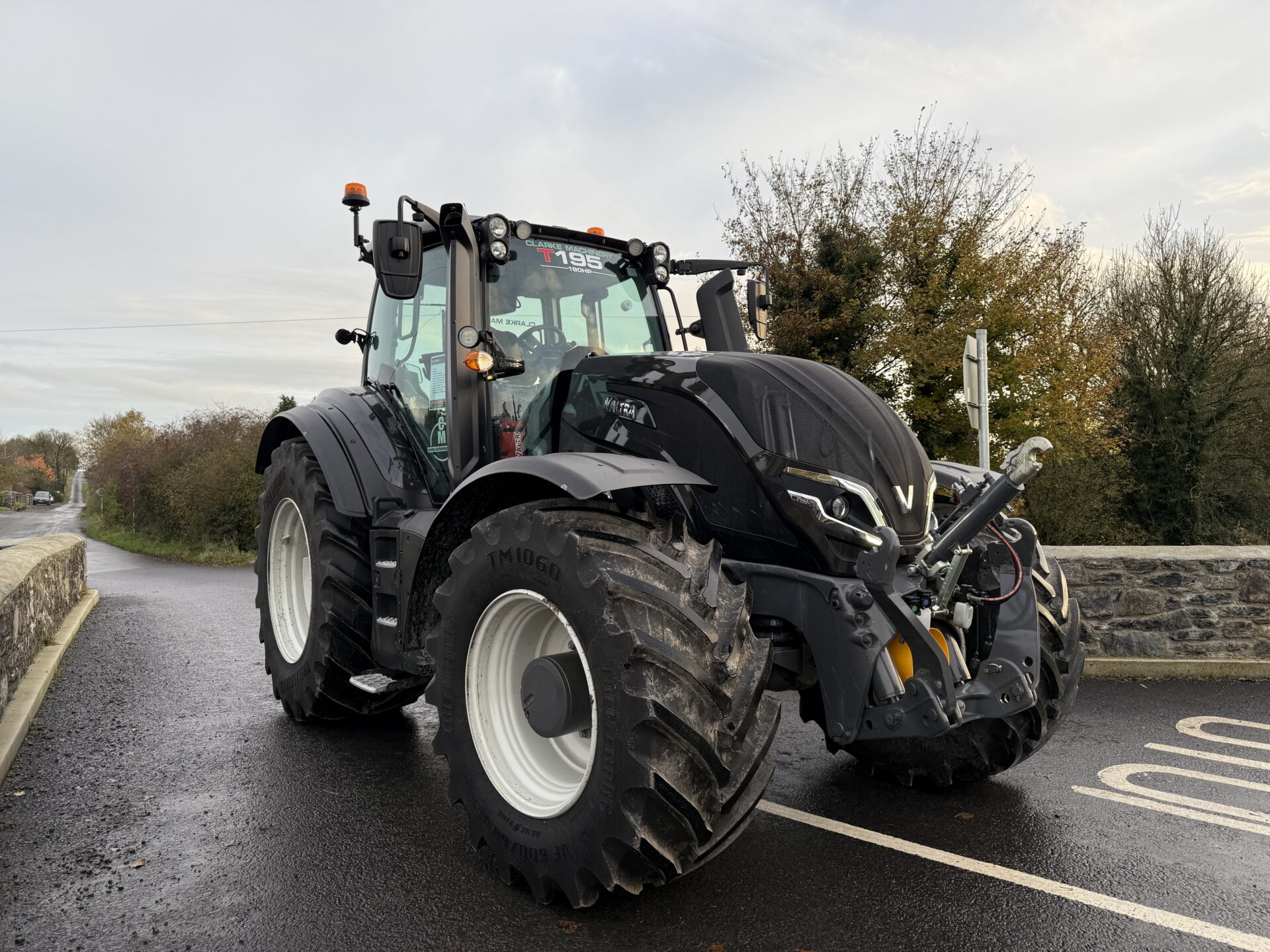

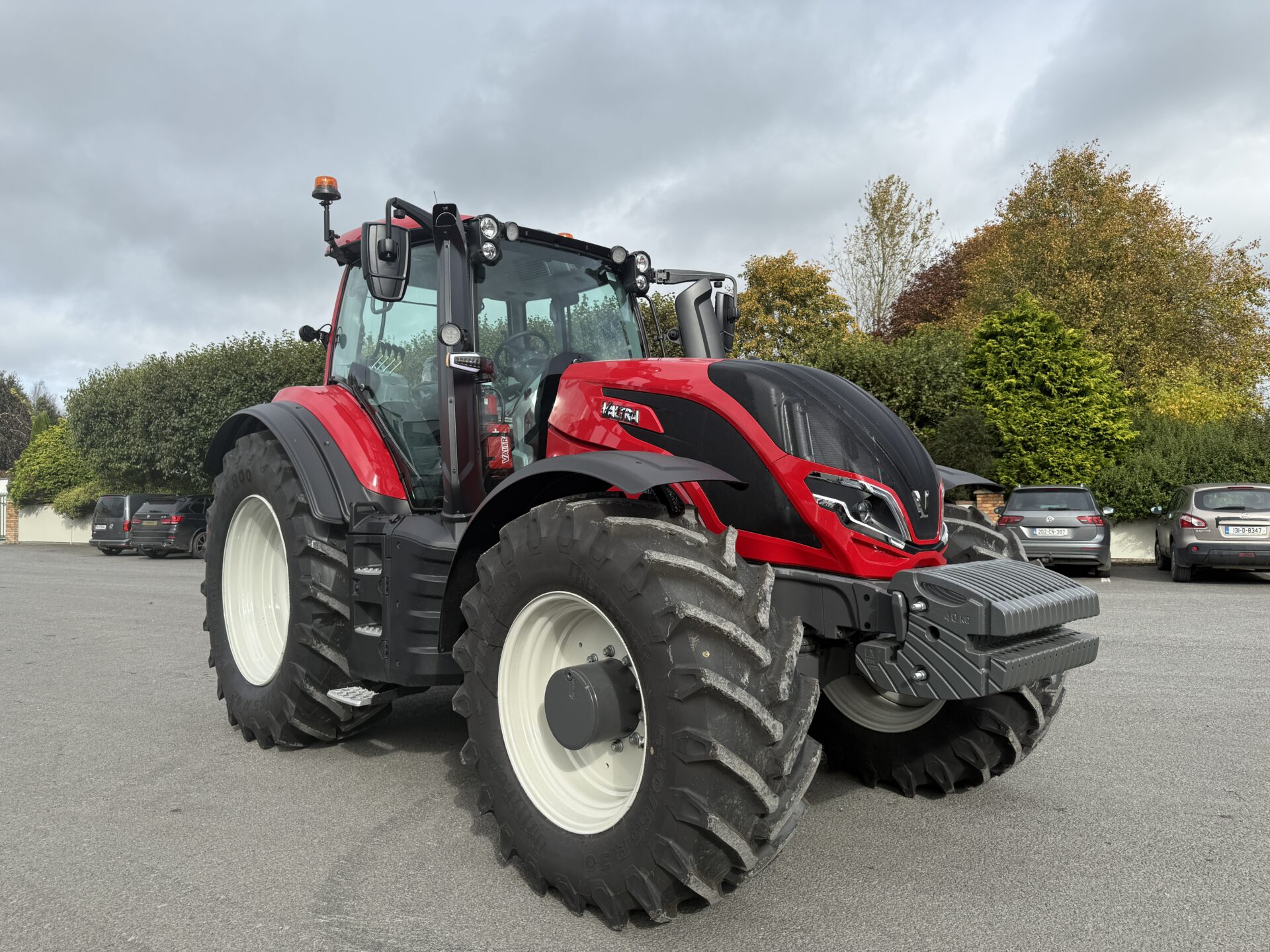

Valtra T195
Valtra T195 — T 5 Series · 195 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
195 hp
Weight
7667 kg
Hover a source tag to verify
Overview
ManufacturerValtra (a part of AGCO)Reference
Row-Crop tractorReference
Built in Suolahti, FinlandReference
Four-wheel driveReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
AGCO Power 7.4L 6-cyl dieselReference
Fuel tank380.0 LReference
Fuel tank249.8 LReference
Exhaust fluid (DEF)70.0 LReference
Engine (max)145.4 kWReference
Engine (boost)156.6 kWReference
AGCO Power 74 LFTN-D5Reference
turbocharged intercooled dieselReference
6-cylinder 24-valveReference
liquid-cooled inlineReference
Displacement7.4 LReference
Bore/Stroke108 x 134 mmReference
EmissionsStage VReference
Maximum Power145.4 kWReference
Boost Power156.6 kWReference
Rated RPM2100Reference
Torque800.0 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
30-speed five-speed power shiftReference
continuously-variable transmissionReference
Typefive-speed power shiftReference
Gears30 forward and reverseReference
Clutchwet discReference
Five power shift gears in four fields ranges and two creeper ranges with power shuttle.Reference
Typecontinuously-variable transmissionReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Typeopen centerReference
Typeclosed center load-sensingReference
Rear valves5Reference
Front valves4Reference
Pump flow73.1 lpmReference
Pump flow90.1 lpmReference
Pump flow115.1 lpmReference
Pump flow160.1 lpmReference
Pump flow199.8 lpmReference
Rear TypeIIIReference
Rear lift8259 kgReference
Rear lift9687 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Engine RPM540E@1522Reference
Engine RPM540@1890Reference
Engine RPM1000@1897Reference
Front PTOindependentReference
Front PTO Type1000Reference
Engine RPM1000@2000Reference
Dimensions
Wheelbase299 cmReference
Weight7667 kgReference
Front tire540/65R28Reference
Rear tire650/65R38Reference
Standard tires (ag)Front: 540/65R28. Rear: 650/65R38Reference
Optional tires (ag)Front: 600/65R28. Rear: 710/70R38Reference
Length580 cmReference
Width255 cmReference
Height (cab)312 cmReference
Max weight13500 kgReference
Clearance (rear axle)59 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
