Tractor · 2014Unverified

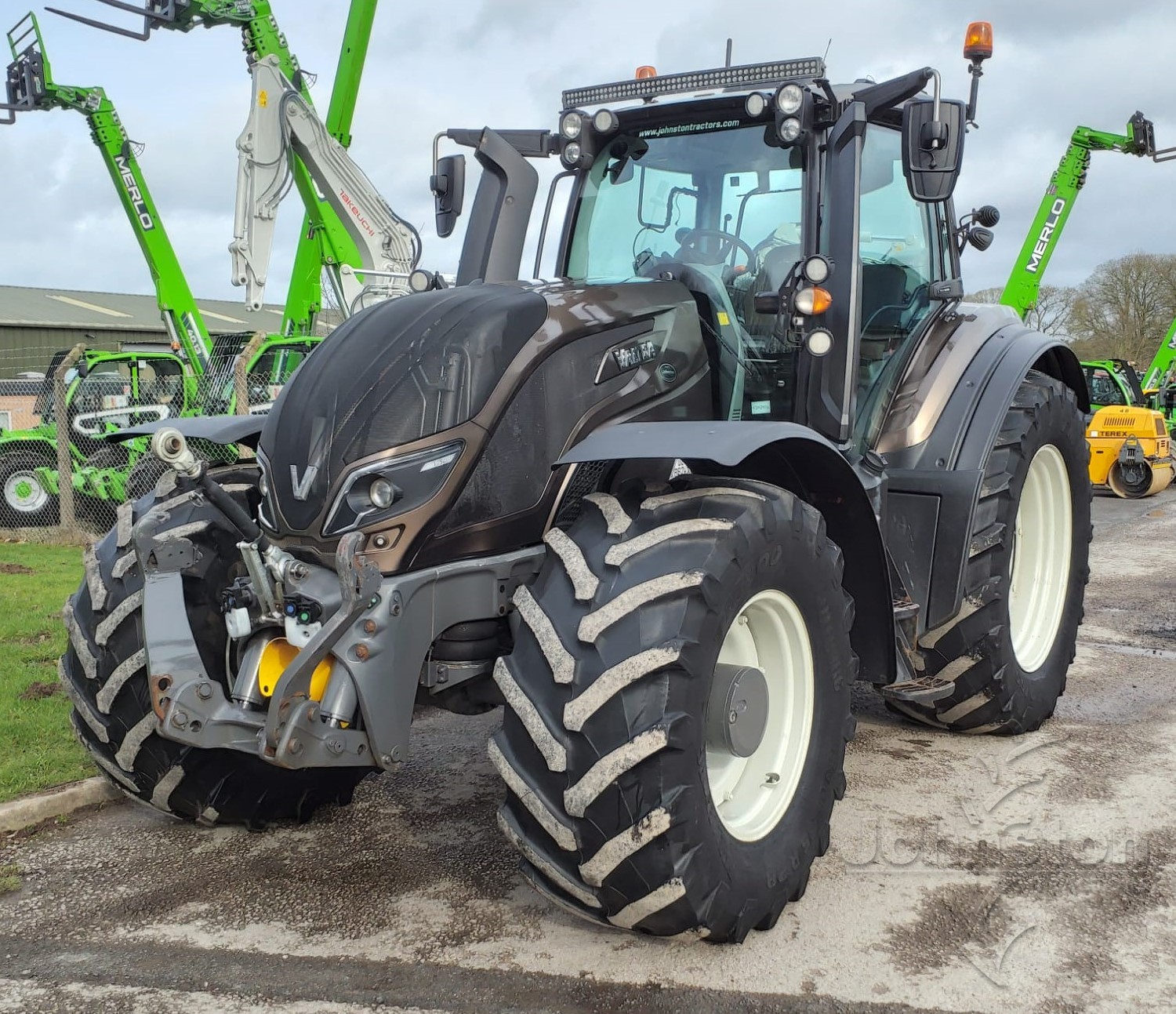

Valtra T254

Name: Valtra T254
Brand: Valtra

Valtra T254 — T 4 Series · 235 hp. Reference specifications; pending source verification.

The Valtra T254 is a tractor with a rated power of 235 hp, placing it at the higher end of its power class. This model was produced from 2014 to 2021. It is equipped with a 6-cylinder turbocharged intercooled diesel liquid-cooled engine and a four-wheel drive system with a powershift transmission. The Valtra T254 has an operating weight of 13500 kg and is suitable for operations on areas ranging from 600 to 1500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

235 hp

Weight

13500 kg

Catalogue coverage

Variants represented

Richest spec table

55 rows

Recorded power

235 hp

Recorded weight

13500 kg

Transmissions

30-speed five-speed power shift

Production years

2014-2021

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerValtra (a part of AGCO)Reference

Row-Crop tractorReference

Built in Suolahti, FinlandReference

Four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

AGCO Power 7.4L 6-cyl dieselReference

Fuel tank380.0 LReference

Exhaust fluid (DEF)70.0 LReference

Engine (max)175.2 kWReference

Engine (boost)202.1 kWReference

AGCO Power 74 LFTN-D5Reference

turbocharged intercooled dieselReference

6-cylinder 24-valveReference

liquid-cooled inlineReference

Displacement7.4 LReference

Bore/Stroke108 x 134 mmReference

EmissionsStage VReference

Maximum Power175.2 kWReference

Boost Power202.1 kWReference

Rated RPM2100Reference

Torque930.2 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Transmission

30-speed five-speed power shiftReference

Typefive-speed power shiftReference

Gears30 forward and reverseReference

Clutchwet discReference

Five power shift gears in four fields ranges and two creeper ranges with power shuttle.Reference

PTO & Hydraulics

Typeopen centerReference

Typeclosed center load-sensingReference

Rear valves5Reference

Front valves4Reference

Pump flow72.7 lpmReference

Pump flow89.3 lpmReference

Pump flow115.1 lpmReference

Pump flow160.1 lpmReference

Pump flow199.8 lpmReference

Rear TypeIIIReference

Rear lift7953 kgReference

Rear lift9177 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Front PTOindependentReference

Front PTO Type1000Reference

Dimensions

Wheelbase299 cmReference

Weight13500 kgReference

Length580 cmReference

Height (cab)312 cmReference

Ground clearance59 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
