Tractor · 2022Unverified

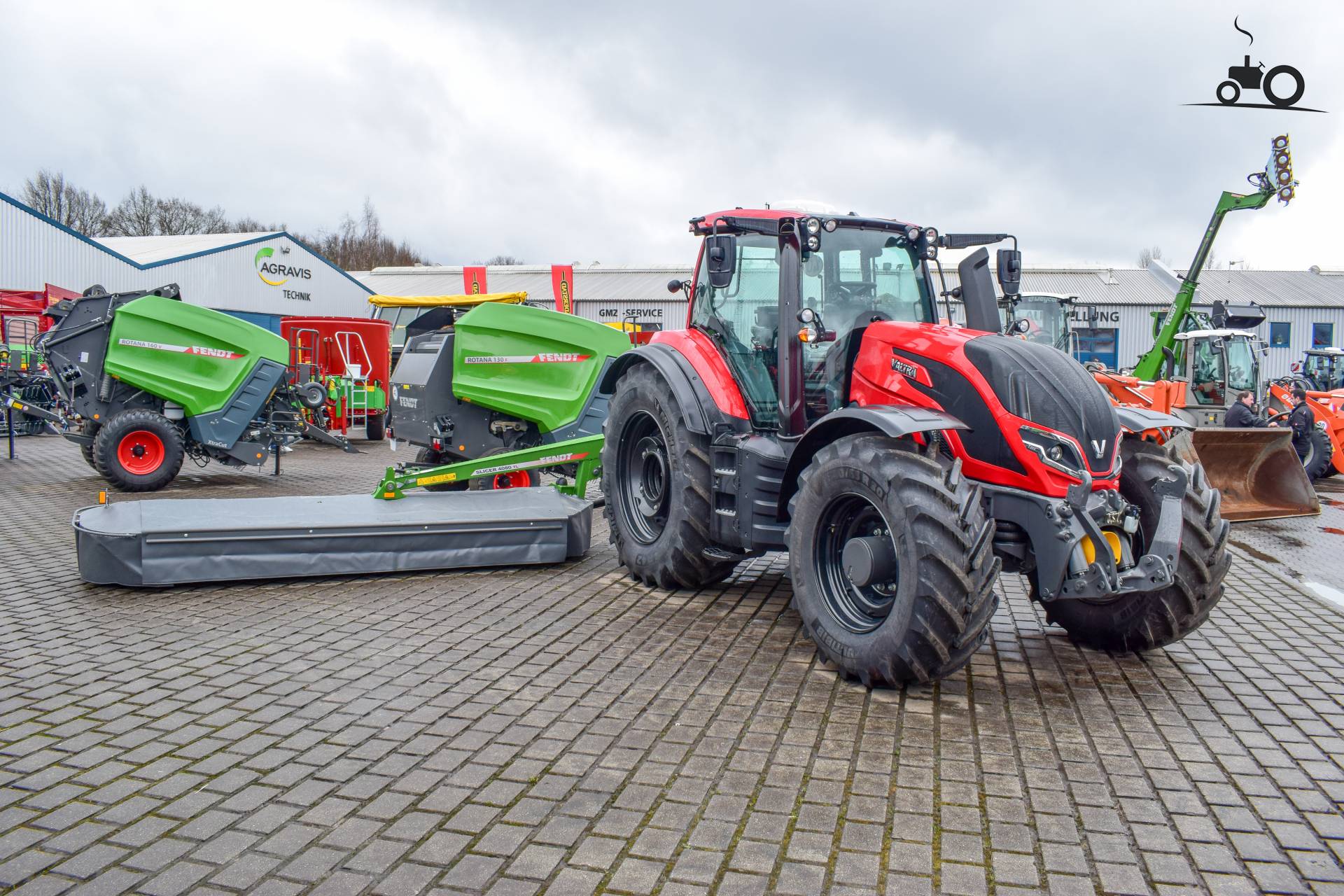

Valtra T255

Name: Valtra T255
Brand: Valtra

Valtra T255 — T 5 Series · 235 hp. Reference specifications; pending source verification.

The Valtra T255 is a tractor with a rated power of 235 hp, positioning it at the higher end of its class. Introduced in 2022, this model features a 6-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with four-wheel drive and a powershift transmission. It has an operating weight of 7667 kg, and is suited for operations on land ranging from 600 to 1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

235 hp

Max power

271 hp (1,900 rpm)

Weight

7667 kg

Catalogue coverage

Variants represented

Richest spec table

94 rows

Recorded power

235 hp

Recorded weight

7667 kg

Transmissions

30-speed five-speed power shift

Production years

2022-2022

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerValtra (a part of AGCO)Reference

Row-Crop tractorReference

Built in Suolahti, FinlandReference

Four-wheel driveReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

AGCO Power 7.4L 6-cyl dieselReference

Fuel tank380.0 LReference

Fuel tank249.8 LReference

Exhaust fluid (DEF)70.0 LReference

Engine (max)175.2 kWReference

Engine (boost)202.1 kWReference

AGCO Power 74 LFTN-D5Reference

turbocharged intercooled dieselReference

6-cylinder 24-valveReference

liquid-cooled inlineReference

Displacement7.4 LReference

Bore/Stroke108 x 134 mmReference

EmissionsStage VReference

Maximum Power175.2 kWReference

Boost Power202.1 kWReference

Rated RPM2100Reference

Torque930.2 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Fuel TypeDieselReference

No of Cylinders6Reference

Rated engine speed2,100 rpmReference

Emissions complianceStage VReference

Engine torque at rated speed1,000 NmReference

Interval for engine oil change600 hReference

Transmission

30-speed five-speed power shiftReference

Typefive-speed power shiftReference

Gears30 forward and reverseReference

Clutchwet discReference

Five power shift gears in four fields ranges and two creeper ranges with power shuttle.Reference

Transmission TypePowershiftReference

forward and reverse options30x30Reference

Wheel Drive4WDReference

PTO & Hydraulics

Typeopen centerReference

Typeclosed center load-sensingReference

Rear valves5Reference

Front valves4Reference

Pump flow73.1 lpmReference

Pump flow90.1 lpmReference

Pump flow115.1 lpmReference

Pump flow160.1 lpmReference

Pump flow199.8 lpmReference

Rear TypeIIIReference

Rear lift8259 kgReference

Rear lift9687 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Engine RPM540E@1522Reference

Engine RPM540@1890Reference

Engine RPM1000@1897Reference

Front PTOindependentReference

Front PTO Type1000Reference

Engine RPM1000@2000Reference

Dimensions

Wheelbase299 cmReference

Weight7667 kgReference

Front tire540/65R28Reference

Rear tire650/65R38Reference

Standard tires (ag)Front: 540/65R28. Rear: 650/65R38Reference

Optional tires (ag)Front: 600/65R28. Rear: 710/70R38Reference

Length580 cmReference

Width255 cmReference

Height (cab)312 cmReference

Max weight13500 kgReference

Clearance (rear axle)59 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Capacities

Capacity7.4 LReference

Diesel exhaust fluid (DEF) tank70 LReference

Power

Max Power271 hp (1,900 rpm)Reference

Rated Power235 hpReference

PTO

Rear PTO RPM1,000 rpmReference

Front PTO PowerAvailableReference

Engine Speed on Front PTO speed2,000 rpmReference

Engine Speed on Rear PTO speed1,897 rpmReference

Hydraulics

Pump Rated Output (total)115 l/minReference

Hydraulics TypeOpen center/Load SensingReference

Remote Valves9Reference

General

SCV controlJoystick: AvailableReference

Dimensions & weight

Overall Height3,130 mmReference

Overall Length5,800 mmReference

Overall Width2,550 mmReference

Ground Clearance560 mmReference

Turning radius5.25 m (without Brakes)Reference

Overall weight7,300 kgReference

Operator station

Cab AvailabilityTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
