Industrial Tractor · 1998Unverified

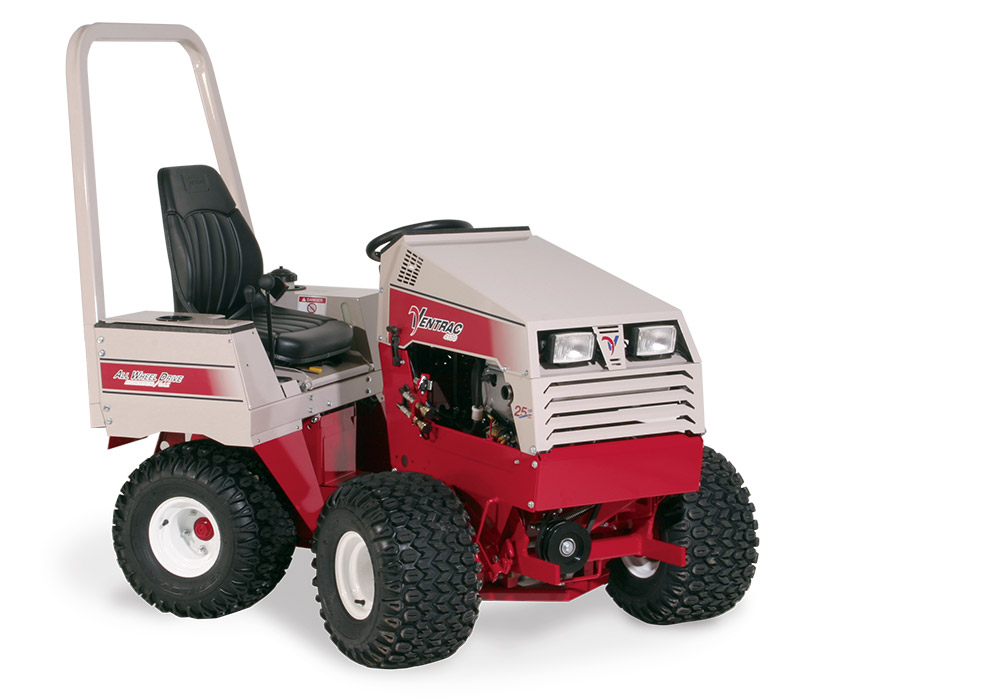

Ventrac 4000

Name: Ventrac 4000
Brand: Ventrac

Ventrac 4000 — Industrial tractor · 31 hp. Reference specifications; pending source verification.

The Ventrac 4000 is a compact industrial tractor with a rated output of 31 hp. It was manufactured from 1998 to 2002. The tractor features a 3-cylinder diesel liquid-cooled engine, which powers a four-wheel drive system through a hydrostatic transmission. Its listed weight is 612 kg, making it suitable for tasks covering areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

31 hp

Weight

612 kg

Catalogue coverage

Variants represented

Richest spec table

53 rows

Recorded power

31 hp

Recorded weight

612 kg

Transmissions

hydrostatic

Production years

1998-2002

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerVentracReference

Industrial tractorReference

Built in Orrville, Ohio, USAReference

Four-wheel driveReference

Two-post ROPS.Reference

Engine

Kubota 0.7L 3-cyl gasolineReference

Mitsubishi 3-cyl dieselReference

Dihatsu 1.0L 3-cyl gasolineReference

Dihatsu 0.8L 3-cyl dieselReference

Fuel tank27.4 LReference

Engine23.1 kWReference

Kubota WG750Reference

gasolineReference

3-cylinderReference

liquid-cooledReference

Displacement0.7 LReference

Bore/Stroke68 x 68 mmReference

Power18.6 kWReference

StarterelectricReference

Starter volts12Reference

MitsubishiReference

dieselReference

Dihatsu 580447Reference

liquid-cooled horizontal-shaft inlineReference

Displacement1.0 LReference

Bore/Stroke72 x 78 mmReference

Power23.1 kWReference

Firing order1-2-3Reference

Dihatsu 582447Reference

horizontal-shaft inlineReference

Displacement0.8 LReference

Bore/Stroke68 x 78 mmReference

Power19.8 kWReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

Sauer-Danfoss 15 pump with Peerless 2600 transaxles.Reference

PTO & Hydraulics

Rear TypeIReference

Dimensions

Wheelbase104 cmReference

Weight612 kgReference

Ag front22x11-8Reference

Ag rear22x11-8Reference

Lawn/turf front22x12-8Reference

Lawn/turf rear22x12-8Reference

Length177 cmReference

Width121 cmReference

Height (ROPS)170 cmReference

Ventrac 4000 attachments

60" front-mount mower deckReference

72" front-mount mower deckReference

bladeReference

Attachment overview

60" front-mount mower deckReference

72" front-mount mower deckReference

BladeReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
