Industrial Tractor · 2012Unverified

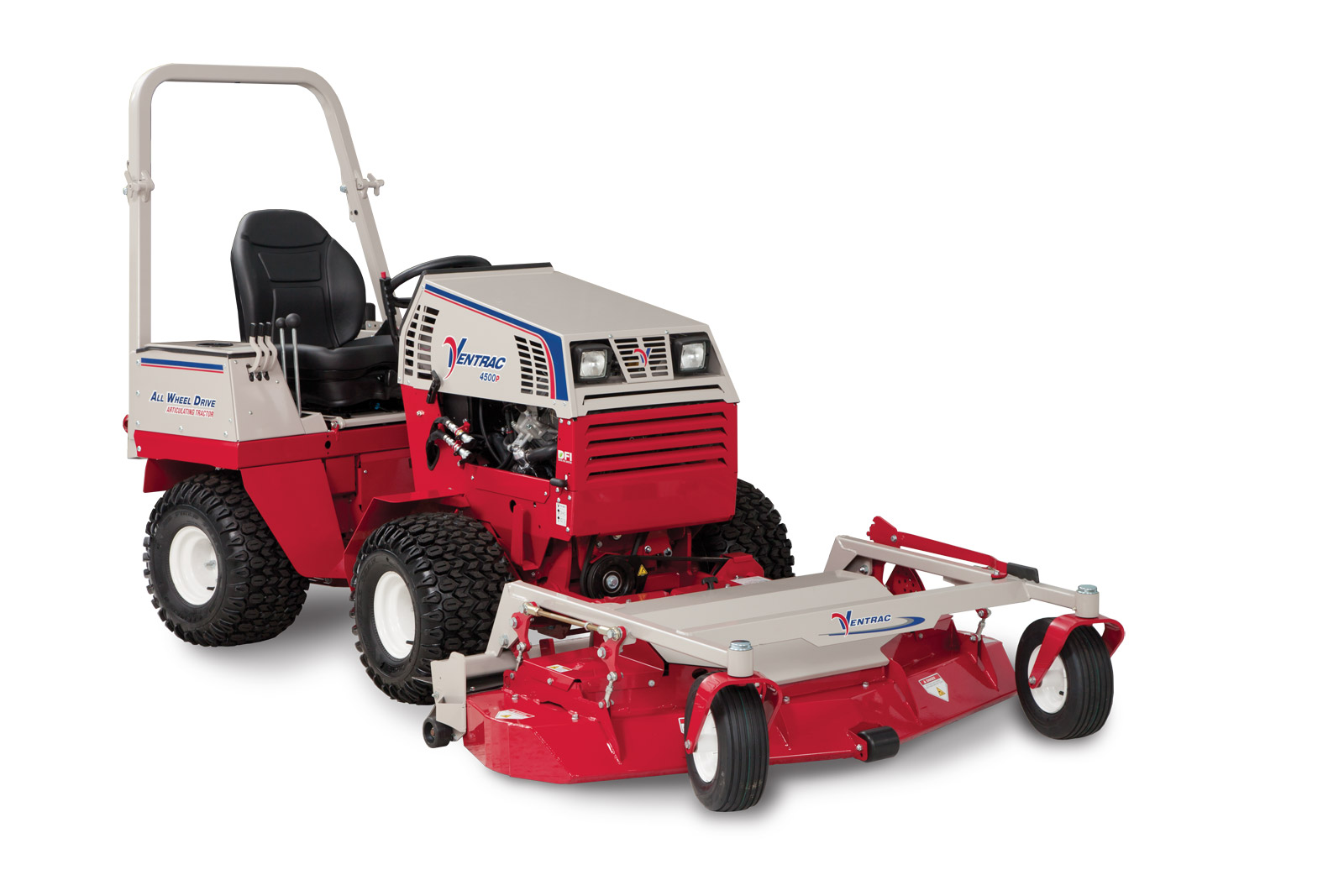

Ventrac 4500P
Ventrac 4500P — Groundskeeping tractor · 31 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
31 hp
Weight
1575 to 1670 pounds
Hover a source tag to verify
Overview
ManufacturerVentracReference
Groundskeeping tractorReference
Built in Orrville, Ohio, USAReference
Four-wheel driveReference
Articulated power steeringReference
Two-post folding ROPS. Weather cab optional.Reference
Variants
4500Kair-cooled gasReference
4500Pliquid-cooled gasReference
4500YdieselReference
4500ZKubota gas/LPReference
Engine
Kawasaki 0.8L 2-cyl gasolineReference
Fuel tank22.7 LReference
Engine23.1 kWReference
Kawasaki FD851DReference
gasolineReference
2-cylinderReference
liquid-cooled horizontal-shaft V-TwinReference
Displacement0.8 LReference
Bore/Stroke81 x 79 mmReference
Power23.1 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TransmissionSauer Danfoss 15Reference
Typeshaft-driven hydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
Rear TypeIReference
TypeVentrac Mount SystemReference
Front PTOindependentReference
ClutchelectricReference
Dimensions
Wheelbase114 cmReference
Weight1575 to 1670 poundsReference
Ag front21x11-8Reference
Ag rear21x11-8Reference
Lawn/turf front22x12-8Reference
Lawn/turf rear22x12-8Reference
Length207 cmReference
Width123 cmReference
Height (ROPS)172 cmReference
Height (ROPS)137 cmReference
Weight714 kgReference
Weight757 kgReference
Ground clearance12 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps30Reference
Battery CCA475Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
