· 2012 Unverified Ventrac 4500Z Ventrac 4500Z — Groundskeeping tractor · 33 hp. Reference specifications; pending source verification.

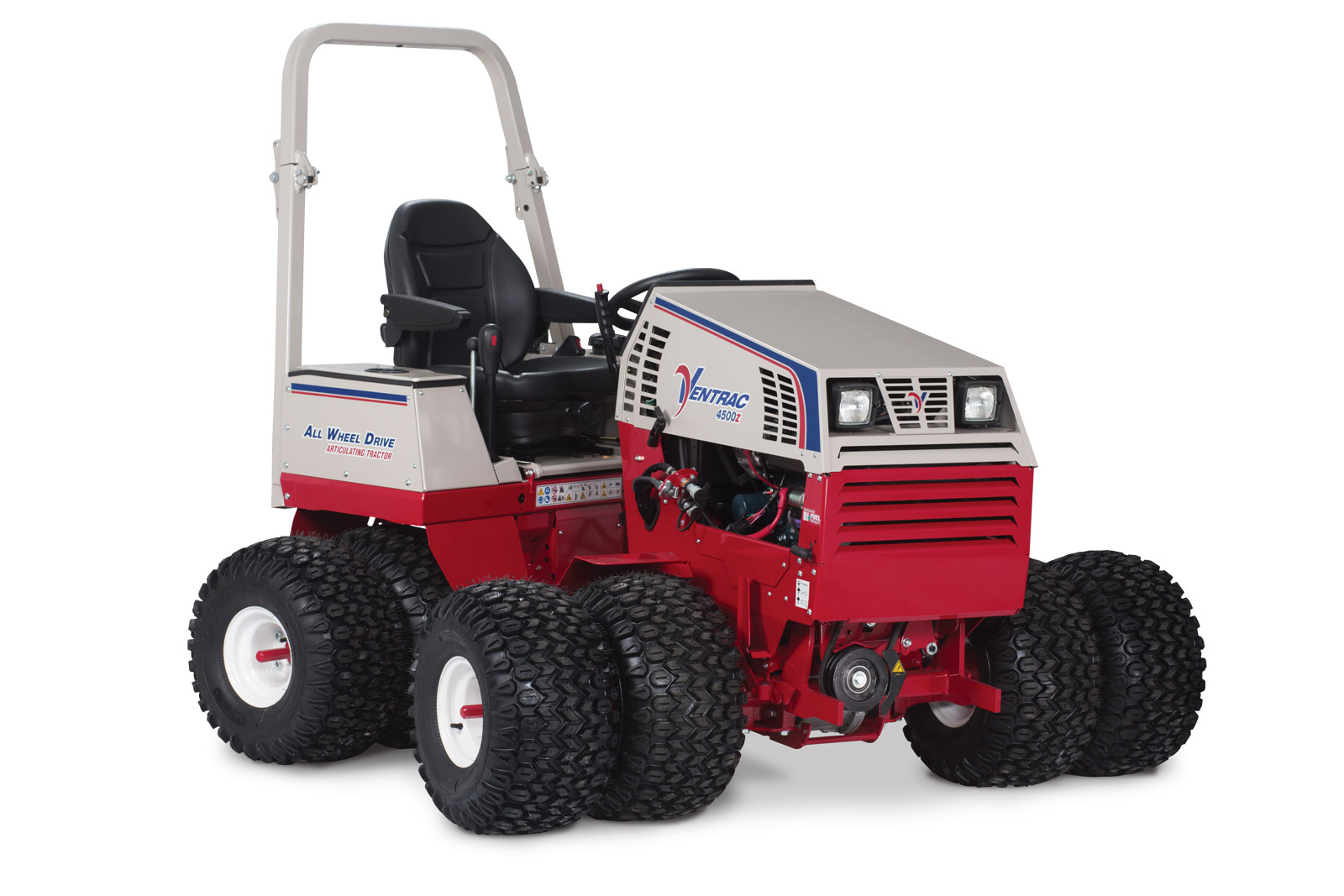

The Ventrac 4500Z is a compact industrial tractor, boasting a 33 hp rated output. It was manufactured from 2012 to 2021. The tractor features a 3-cylinder diesel liquid-cooled engine, coupled with a hydrostatic transmission and four-wheel drive system. Its listed weight ranges from 1655 to 1750 pounds.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Weight
1655 to 1750 pounds
Richest spec table
73 rows
Production years
2012-2021
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Specifications Description Maintenance Troubleshooting Ownership Reviews Q&A Docs & sources
Hover a source tag to verify UK metric US imperial
Manufacturer Ventrac Reference
Groundskeeping tractor Reference
Built in Orrville, Ohio, USA Reference
Four-wheel drive Reference
Articulated power steering Reference
Two-post folding ROPS. Weather cab optional. Reference
4500K air-cooled gas Reference
4500P liquid-cooled gas Reference
4500Y diesel Reference
4500Z Kubota gas/LP Reference
Kubota 1.0L 3-cyl LP-gas Reference
Gasoline Fuel tank 22.7 L Reference
LP-gas Fuel tank 59.8 L Reference
Engine 24.2 kW Reference
Kubota Reference
LP-gas Reference
3-cylinder Reference
liquid-cooled horizontal-shaft Reference
Displacement 1.0 L Reference
Bore/Stroke 74 x 74 mm Reference
Power 24.2 kW Reference
Rated RPM 3600 Reference
Starter electric Reference
Starter volts 12 Reference
Fuel Type Gas Reference
No of Cylinders 3 Reference
Cooling system Liquid Reference
hydrostatic Reference
Transmission Sauer Danfoss 15 Reference
Type shaft-driven hydrostatic Reference
Gears infinite forward and reverse (2-range) Reference
Transmission Type HST Reference
forward and reverse options 10 x 8 mph Reference
Wheel Drive AWD Reference
Rear Type I Reference
Type Ventrac Mount System Reference
Front PTO independent Reference
Clutch electric Reference
Wheelbase 114 cm Reference
Weight 1655 to 1750 pounds Reference
Ag front 21x11-8 Reference
Ag rear 21x11-8 Reference
Lawn/turf front 22x12-8 Reference
Lawn/turf rear 22x12-8 Reference
Gasoline Length 207 cm Reference
LP-gas Length 251 cm Reference
Width 123 cm Reference
Height (ROPS) 172 cm Reference
Height (ROPS) 137 cm Reference
Weight 750 kg Reference
Weight 793 kg Reference
Ground clearance 12 cm Reference
Ground negative Reference
Charging system alternator Reference
Charging amps 60 Reference
Battery CCA 475 Reference
Battery volts 12 Reference
Alternator size 60 amp Reference
Make & Model WG972-GL Reference
Type of headlight bulb (2) 55W Halogen Lights Reference
Capacity 962 cc Reference
Fuel tank 22.7 L Reference
Max Power 32.5 hp Reference
Rear Hitch category (SAE designation) Category 1 Reference
Height Over ROPS 172.7 cm Reference
Overall Length 207 cm Reference
Overall Width 123.2 cm Reference
Turning radius 99.1 cm Reference
Overall weight 750.7 kg Reference
Front Wheel Type 22x12-8 Reference
Cab Availability Optional Reference
Seat Suspension true Reference
Steering type Power Steering Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
