Industrial Tractor · 2021Unverified

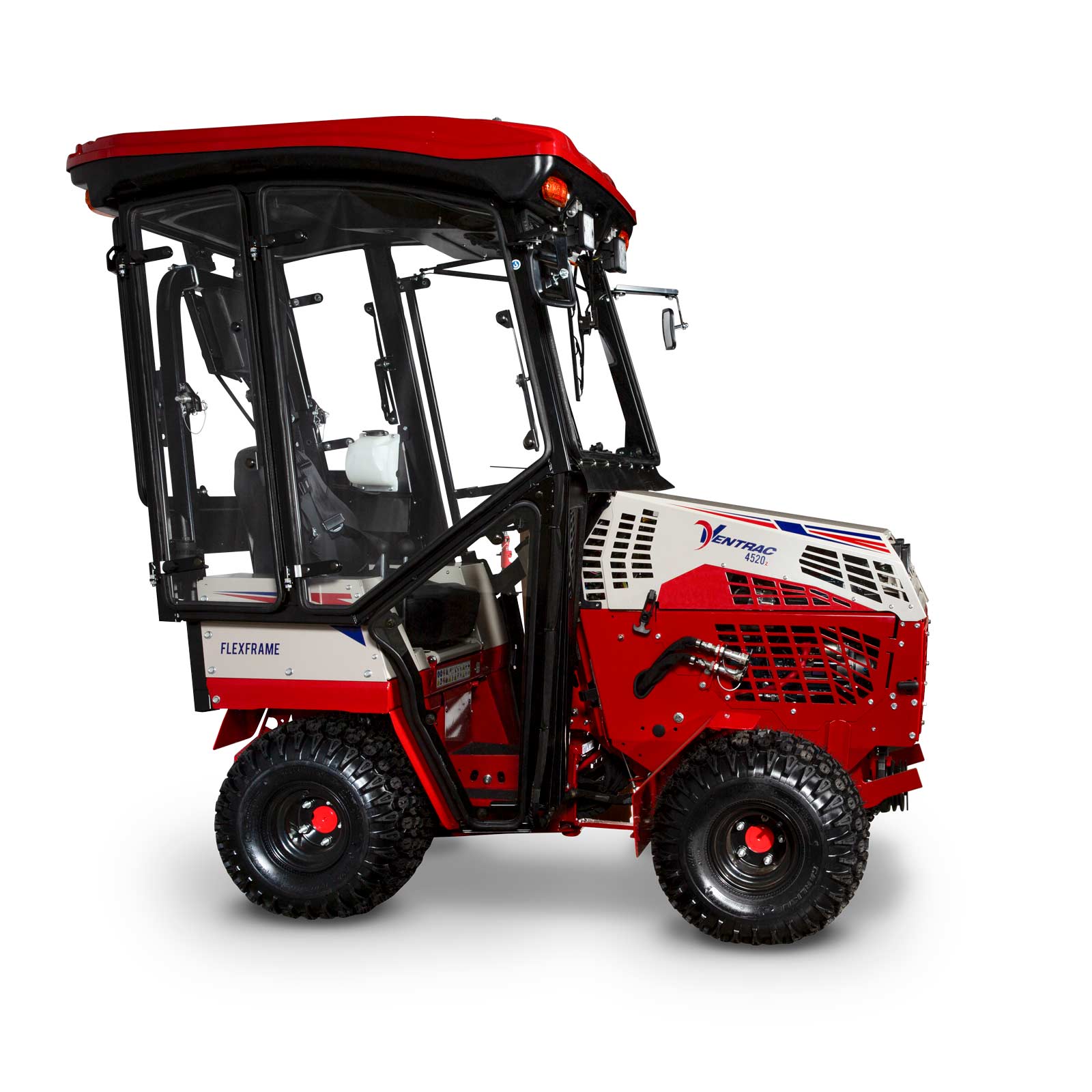

Ventrac 4520K

Name: Ventrac 4520K
Brand: Ventrac

Ventrac 4520K — Groundskeeping tractor · 31 hp. Reference specifications; pending source verification.

The Ventrac 4520K is a tractor model rated at approximately 31 horsepower, which positions it at the lighter end of its class. Introduced in 2021, it features a 2-cylinder diesel air-cooled engine and four-wheel drive with a hydrostatic transmission. The machine has an operating weight of 607 kg and is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

31 hp

Max power

31 hp

Weight

607 kg

Catalogue coverage

Variants represented

Richest spec table

76 rows

Recorded power

31 hp

Recorded weight

607 kg

Transmissions

hydrostatic

Production years

2021

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerVentrac (a part of Toro)Reference

Groundskeeping tractorReference

Original price was $24,225 in 2022Reference

Four-wheel driveReference

Articulated power steeringReference

Mechanical band brakesReference

Two-post folding ROPS. Cab optional with available heat.Reference

Variants

4520KVanguard engineReference

4520PKawasaki engineReference

4520YKubota diesel engineReference

4520ZKubota gas engineReference

Engine

Vanguard 0.9L 2-cyl gasolineReference

Fuel tank22.7 LReference

Engine (gross)23.1 kWReference

Vanguard M54Reference

gasolineReference

2-cylinderReference

air-cooled horizontal-shaft V-TwinReference

Displacement0.9 LReference

Bore/Stroke86 x 78 mmReference

Power (gross)23.1 kWReference

Compression8.2:1Reference

StarterelectricReference

Starter volts12Reference

Fuel TypeGasolineReference

No of Cylinders2Reference

Rated engine speed3,600 rpmReference

Engine torque at rated speed14.3 mReference

Cooling systemAir CooledReference

Transmission

hydrostaticReference

Typeshaft-driven hydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

Transmission TypeHSTReference

forward and reverse options10 x 8 mphReference

Wheel DriveAWDReference

PTO & Hydraulics

Rear TypeIReference

TypeVentrac Mount SystemReference

Front PTOindependentReference

Clutchelectrio-magneticReference

Dimensions

Wheelbase114 cmReference

Weight607 kgReference

Front tire22x12-8Reference

Rear tire22x12-8Reference

Ag front21x11-8Reference

Ag rear21x11-8Reference

Lawn/turf front22x11-10Reference

Lawn/turf rear22x11-10Reference

Industrial front22x12-8Reference

Industrial rear22x12-8Reference

Length207 cmReference

Length233 cmReference

Width123 cmReference

Height (ROPS)172 cmReference

Height (Folded ROPS)137 cmReference

Ground clearance12 cmReference

4520K Serial Numbers

Location:Serial number plate on the left side of the front unit, below the steering column.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps50Reference

Battery CCA475Reference

Battery volts12Reference

Alternator size50 ampReference

Battery options475 CCA (Group 51R)Reference

Capacities

Capacity896 ccReference

Power

Max Power31 hpReference

Hydraulics

Rear Hitch category (SAE designation)Category 1Reference

Dimensions & weight

Height Over ROPS172.7 cmReference

Overall Length207 cmReference

Overall Width123.2 cmReference

Turning radius99.1 cmReference

Overall weight628.2 kgReference

Wheels & tyres

Front Wheel Type22x12-8Reference

Operator station

Cab AvailabilityOptionalReference

Seat SuspensiontrueReference

Steering & brakes

Steering typePower SteeringReference

General

Type of headlight bulb(4) LED 1,000 LumenReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
