Industrial Tractor · 2021Unverified

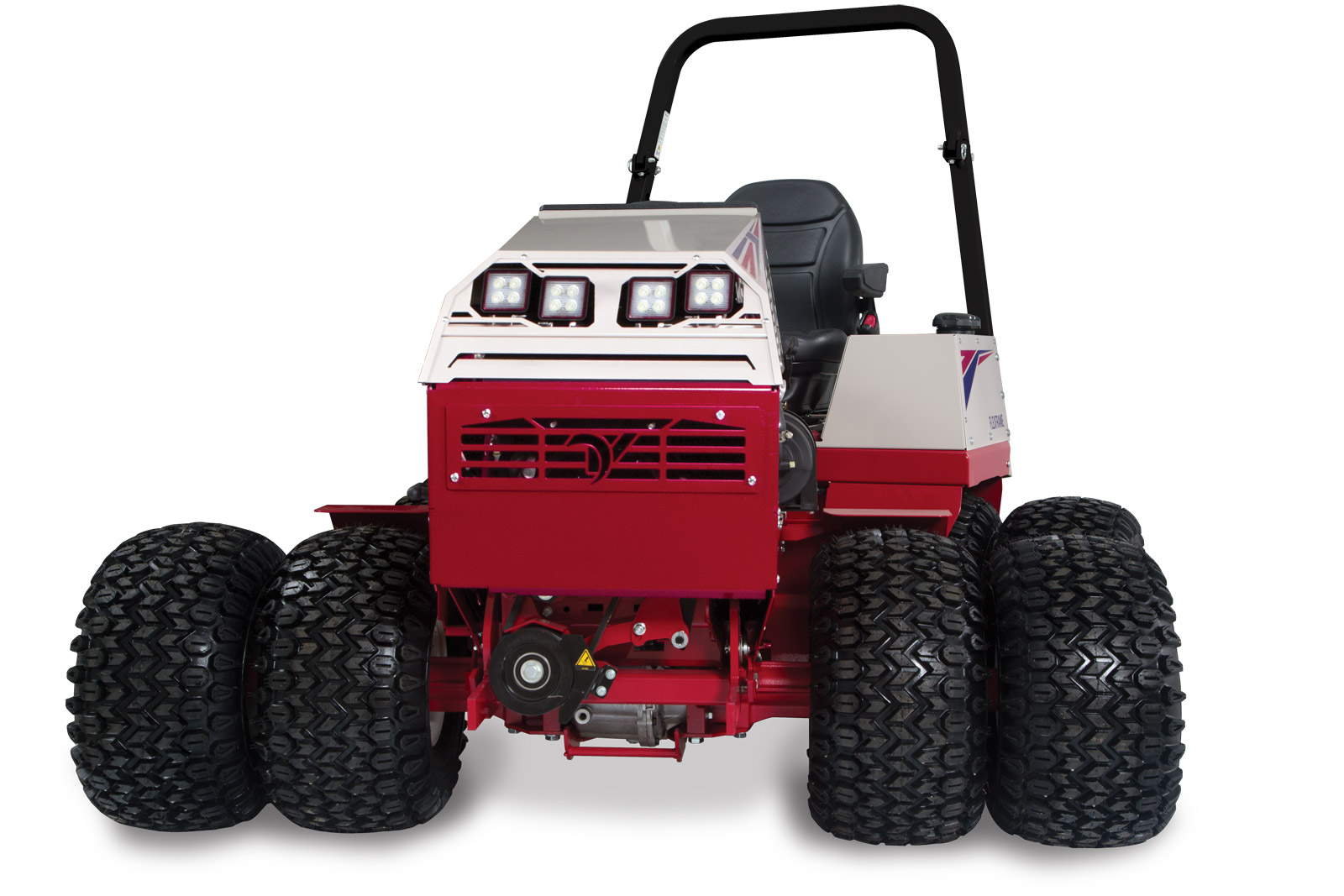

Ventrac 4520Z

Name: Ventrac 4520Z
Brand: Ventrac

Ventrac 4520Z — Groundskeeping tractor · 33 hp. Reference specifications; pending source verification.

The Ventrac 4520Z is a compact industrial tractor with a rated output of 33 hp. Introduced in 2021, it is equipped with a 3-cylinder diesel liquid-cooled engine, which powers four-wheel drive via a hydrostatic transmission. The model has a listed weight of 750 kg and is designed for use on areas of approximately 200 acres. Further specifications for the UK and US can be found in the accompanying table.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

33 hp

Max power

32.5 hp

Weight

750 kg

Catalogue coverage

Variants represented

Richest spec table

75 rows

Recorded power

33 hp

Recorded weight

750 kg

Transmissions

hydrostatic

Production years

2021

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerVentrac (a part of Toro)Reference

Groundskeeping tractorReference

Original price was $28,765 in 2022Reference

Four-wheel driveReference

Articulated power steeringReference

Mechanical band brakesReference

Two-post folding ROPS. Cab optional with available heat.Reference

Variants

4520KVanguard engineReference

4520PKawasaki engineReference

4520YKubota diesel engineReference

4520ZKubota gas engineReference

Engine

Kubota 1.0L 3-cyl gasolineReference

Fuel tank22.7 LReference

Engine (gross)24.2 kWReference

Kubota WG972-GLReference

gasolineReference

3-cylinderReference

liquid-cooled horizontal-shaft inlineReference

Displacement1.0 LReference

Bore/Stroke74 x 74 mmReference

Power (gross)24.2 kWReference

StarterelectricReference

Starter volts12Reference

Fuel TypeGasolineReference

No of Cylinders3Reference

Rated engine speed3,600 rpmReference

Engine torque at rated speed15.5 mReference

Transmission

hydrostaticReference

TransmissionDanfossReference

Typeshaft-driven hydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

Transmission TypeHSTReference

forward and reverse options10F x 8RReference

Wheel DriveAWDReference

PTO & Hydraulics

Rear TypeIReference

TypeVentrac Mount SystemReference

Front PTOindependentReference

Clutchelectrio-magneticReference

Dimensions

Wheelbase114 cmReference

Weight750 kgReference

Front tire22x12-8Reference

Rear tire22x12-8Reference

Ag front21x11-8Reference

Ag rear21x11-8Reference

Lawn/turf front22x11-10Reference

Lawn/turf rear22x11-10Reference

Industrial front22x12-8Reference

Industrial rear22x12-8Reference

Length207 cmReference

Length233 cmReference

Width123 cmReference

Height (ROPS)172 cmReference

Height (Folded ROPS)137 cmReference

Ground clearance12 cmReference

4520Z Serial Numbers

Location:Serial number plate on the left side of the front unit, below the steering column.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery CCA475Reference

Battery volts12Reference

Alternator size60 AmpReference

Battery options475 CCA (Group 51R)Reference

General

Make & ModelWG972-GLReference

Type of headlight bulb(4) LED 1,000 LumenReference

Capacities

Capacity962 ccReference

Power

Max Power32.5 hpReference

Hydraulics

Rear Hitch category (SAE designation)Category 1Reference

Dimensions & weight

Height Over ROPS172.7 cmReference

Overall Length207 cmReference

Overall Width123.2 cmReference

Turning radius99.1 cmReference

Overall weight766.6 kgReference

Wheels & tyres

Front Wheel Type22x12-8Reference

Operator station

Cab AvailabilityOptionalReference

Seat SuspensiontrueReference

Steering & brakes

Steering typePower SteeringReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
