Tractor · 1986Unverified

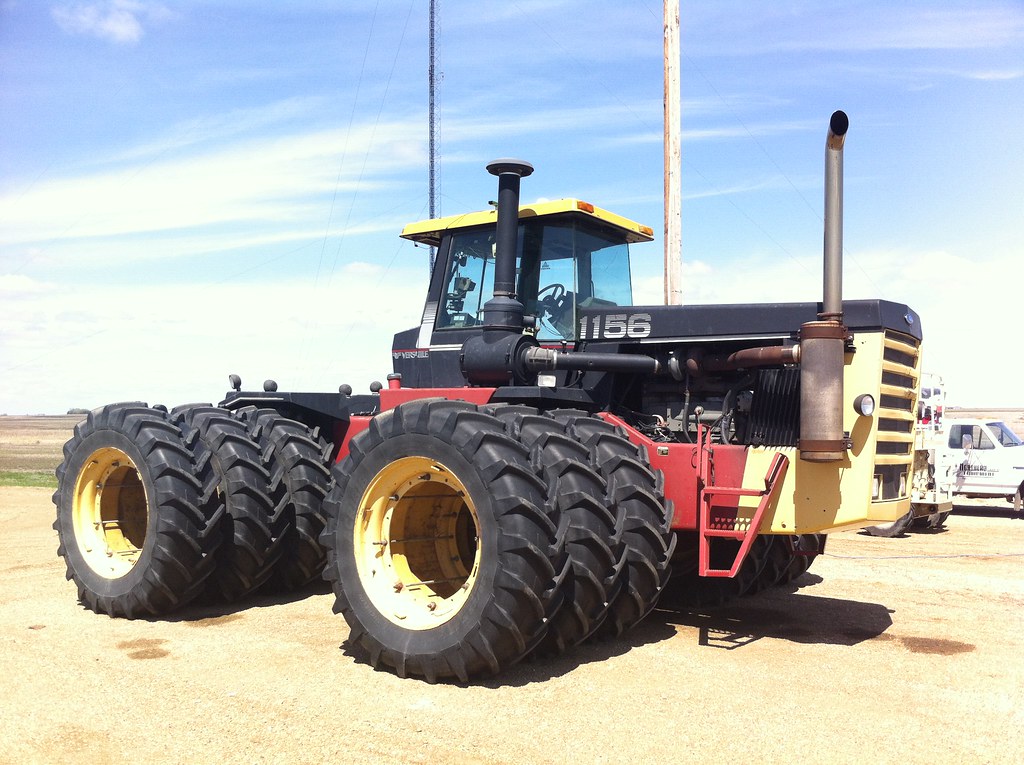

Versatile 1156
Versatile 1156 — Four-wheel Drive (4WD) tractor · 470 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
470 hp
Weight
11566 kg
Hover a source tag to verify
Overview
ManufacturerVersatileReference
Four-wheel Drive (4WD) tractorReference
Built in Winnipeg, Manitoba, CanadaReference
Original price was $171,000 in 1991Reference
Four-wheel driveReference
Steeringhydrostatic powerReference
Disc and caliper brakesReference
Cab standard with air-conditioning and AM/FM stereo cassette radio.Reference
Engine
Cummins 18.8L 6-cyl dieselReference
Engine350.5 kWReference
Cummins KTA 1150-CReference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement18.8 LReference
Bore/Stroke159 x 159 mmReference
Power350.5 kWReference
Rated RPM2100Reference
Torque2128.9 NmReference
Torque RPM1500Reference
Starter volts12Reference
Coolant capacity80.4 LReference
Transmission
8-speedReference
Gears8 forward and 4 reverseReference
Four speeds in two ranges.Reference
Capacities
Fuel1514.0 LReference
PTO & Hydraulics
Hydraulic system378.5 LReference
Typeclosed center load-sensingReference
Capacity378.5 LReference
Pressure172.4 barReference
Valves5Reference
Pump flow104.8 lpmReference
Total flow208.2 lpmReference
Rear PTO Type1000Reference
Dimensions
Wheelbase355 cmReference
Weight11566 kgReference
Front tire30.5-32Reference
Rear tire30.5-32Reference
Ag front30.5-32Reference
Ag rear30.5-32Reference
Length688 cmReference
Max weight21092 kgReference
1156 Serial Numbers
Location:Serial number plate on the cab door post.Reference
19861156 86 270301Reference
19871156 87 ------Reference
19881156 88 331116Reference
19891156 89 ------Reference
19901156 90 ------Reference
19911156 91 D475128Reference
Final1156 91 D475197Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Batteries4Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
