Tractor · 1967Unverified

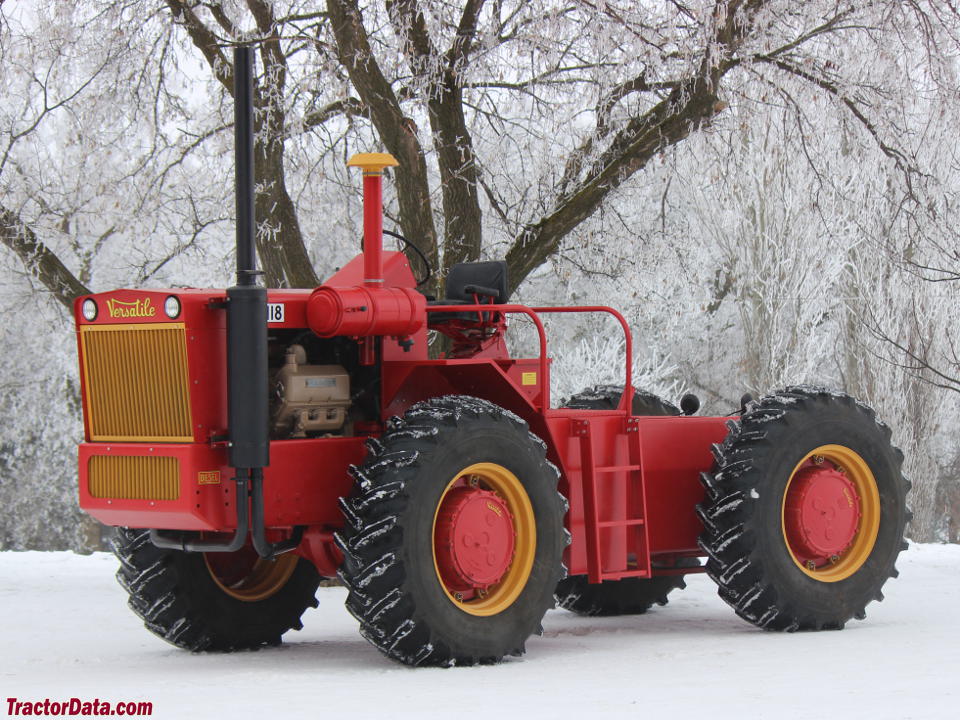

Versatile 118
Versatile 118 — Four-wheel Drive (4WD) tractor · 135 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
135 hp
Weight
5738 kg
Hover a source tag to verify
Overview
ManufacturerVersatileReference
Four-wheel Drive (4WD) tractorReference
Built in Winnipeg, Manitoba, CanadaReference
Original price was $15,500 in 1970Reference
Four-wheel driveReference
Final drivesplanetaryReference
Articulated power steeringReference
Hydraulic drum brakesReference
Open operator station. Cab optional.Reference
Engine
Cummins 5.8L 6-cyl dieselReference
Fuel tank204.4 LReference
Engine100.7 kWReference
Cummins V6-140Reference
dieselReference
6-cylinderReference
liquid-cooled V-6Reference
Displacement5.8 LReference
Bore/Stroke117 x 89 mmReference
Power100.7 kWReference
Air cleanerdryReference
Compression17.4:1Reference
Rated RPM3000Reference
StarterelectricReference
Starter volts12Reference
Transmission
9-speed gearReference
TransmissionVersatileReference
TypegearReference
Gears9 forward and 3 reverseReference
Clutchmechanical dry discReference
PTO & Hydraulics
Typeopen centerReference
Pressure120.7 barReference
Valves3Reference
Pump flow47.3 lpmReference
Pump flow62.5 lpmReference
Rear TypeIII/IIReference
Rear lift (at 24"/610mm)2721 kgReference
Rear PTOliveReference
Rear PTO Type1000Reference
Engine RPM1000@2700Reference
Dimensions
Wheelbase304 cmReference
Weight5738 kgReference
Front tire18.4-30Reference
Rear tire18.4-30Reference
Ag front18.4-30Reference
Ag rear18.4-30Reference
Ag front23.1-30Reference
Ag front18.4-38Reference
Ag rear23.1-30Reference
Ag rear18.4-38Reference
Length533 cmReference
Width241 cmReference
Height (steering wheel)254 cmReference
118 Serial Numbers
19674001Reference
19684301Reference
19694565Reference
19704646Reference
19714737Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery AH204Reference
Speeds
With 18.4-30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
