Tractor · 1977Unverified
Versatile 150
Versatile 150 · 54 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
54 hp
Weight
3538 kg
Hover a source tag to verify
Overview
ManufacturerVersatileReference
Built in Winnipeg, Manitoba, CanadaReference
Original price was $21,500 in 1981Reference
Four-wheel driveReference
Steeringhydrostatic powerReference
Differential hydraulic disc brakesReference
ROPS standard. Optional isolated cab with air-conditioning.Reference
Engine
Perkins 3.9L 4-cyl dieselReference
Engine52.9 kWReference
PerkinsReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke98 x 127 mmReference
Power52.9 kWReference
Air cleanerDonaldson dry typeReference
Compression16:1Reference
Rated RPM2250Reference
Torque260.4 NmReference
Torque RPM1350Reference
Starter volts12Reference
Coolant capacity16.1 LReference
Transmission
hydrostaticReference
TransmissionEaton 46Reference
TypehydrostaticReference
Gearsinfinite forward and reverse (three-range)Reference
PTO & Hydraulics
PTO (claimed)40.3 kWReference
Hydraulic system151.4 LReference
Typeopen centerReference
Capacity151.4 LReference
Pressure155.1 barReference
Valves2 or 3Reference
Pump flow56.8 lpmReference
Steering flow18.9 lpmReference
Rear TypeIIReference
Rear PTO Type540Reference
Capacities
Fuel128.7 LReference
Dimensions
Wheelbase203 cmReference
Weight3538 kgReference
Front tire11.2x24Reference
Rear tire11.2x24Reference
Ag front11.2x24Reference
Ag front13.6x24Reference
Ag rear11.2x24Reference
Ag rear13.6x24Reference
Length381 cmReference
Width196 cmReference
Height (cab)276 cmReference
Operating weight3538 kgReference
Max weight4853 kgReference
Front tread157 to 213 cmReference
Rear tread157 to 213 cmReference
Versatile 150 attachments
front-end loaderReference
150 Serial Numbers
Location:Serial number plate on the floor of the cab, near the base of the tractor seat.Reference
1977000028Reference
1978000425Reference
1979------Reference
1980000750Reference
1981001150Reference
Final001549Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemDelco alternatorReference
Charging amps72Reference
Batteries2Reference
Battery CCA450Reference
Battery volts12Reference
Battery AH95Reference
Attachment overview

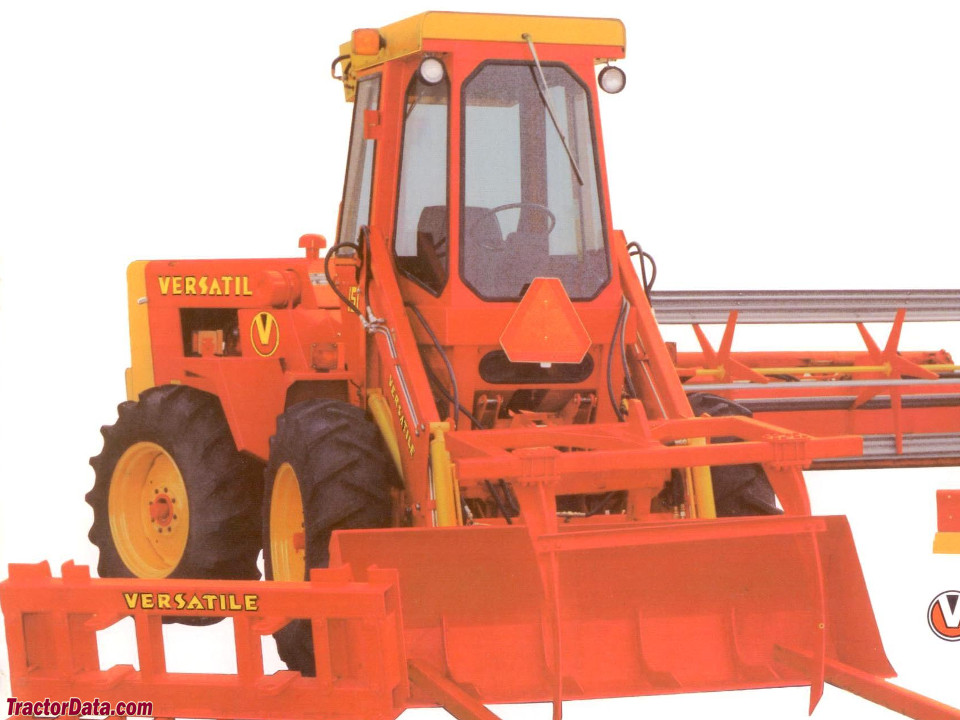

A loader is typical equipment for a Versatile 150 and the 150's advertising boasted a variety of attachments, including 24 (model 2400) and 28 (model 2800) foot swather tables.Reference
Speeds
13.6x24Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
