Tractor · 1982Unverified

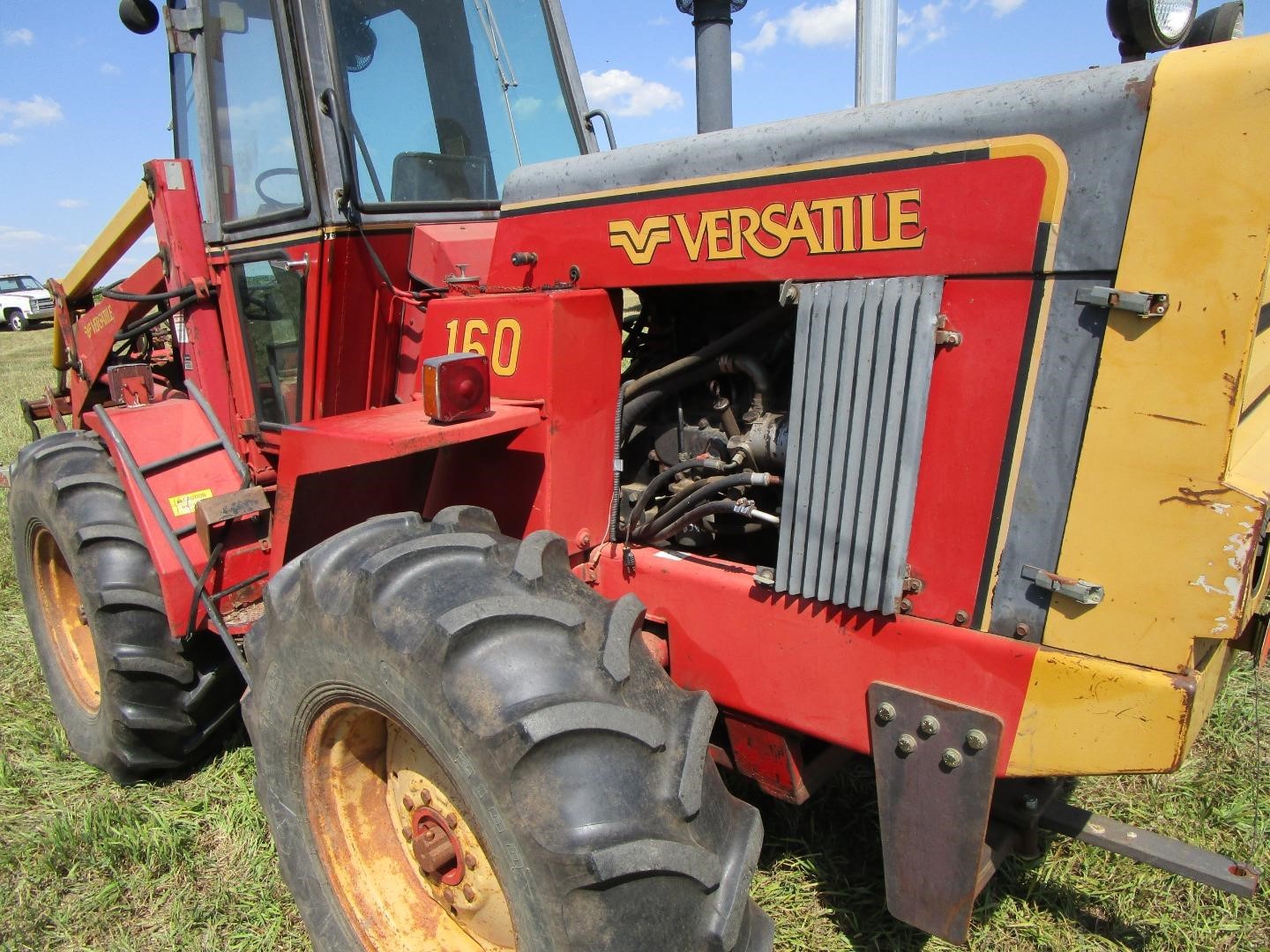

Versatile 160
Versatile 160 · 65 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
65 hp
Weight
8950 to 10700 pounds
Hover a source tag to verify
Overview
ManufacturerVersatileReference
Built in Winnipeg, Manitoba, CanadaReference
Original price was $39,000 in 1983Reference
Four-wheel driveReference
Articulated power steeringReference
Disc brakesReference
Cab standard with air-conditioningReference
Engine
Waukesha 3.6L 4-cyl dieselReference
Fuel tank128.7 LReference
Engine62.6 kWReference
WaukeshaReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.6 LReference
Bore/Stroke98 x 118 mmReference
Power62.6 kWReference
Air cleanerdual elementReference
Rated RPM2500Reference
Starter volts12Reference
Coolant capacity16.1 LReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (three-range)Reference
PTO & Hydraulics
PTO (claimed)48.5 kWReference
Typeopen centerReference
Pressure172.4 barReference
Valves3Reference
Pump flow56.8 lpmReference
Rear TypeII/IReference
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
Wheelbase203 cmReference
Weight8950 to 10700 poundsReference
Front tire13.6-24Reference
Rear tire13.6-24Reference
Ag front13.6-24Reference
Ag rear13.6-24Reference
Length381 cmReference
Length500 cmReference
Height (cab)276 cmReference
Operating weight4059 kgReference
Operating weight4853 kgReference
Versatile 160 attachments
front-end loaderReference
160 Serial Numbers
1982001601Reference
1983002407Reference
Final002756Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps72Reference
Batteries2Reference
Battery CCA525Reference
Battery volts12Reference
Attachment overview
The loader was standard equipment for the Versatile 160.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
