Tractor · 2020Unverified

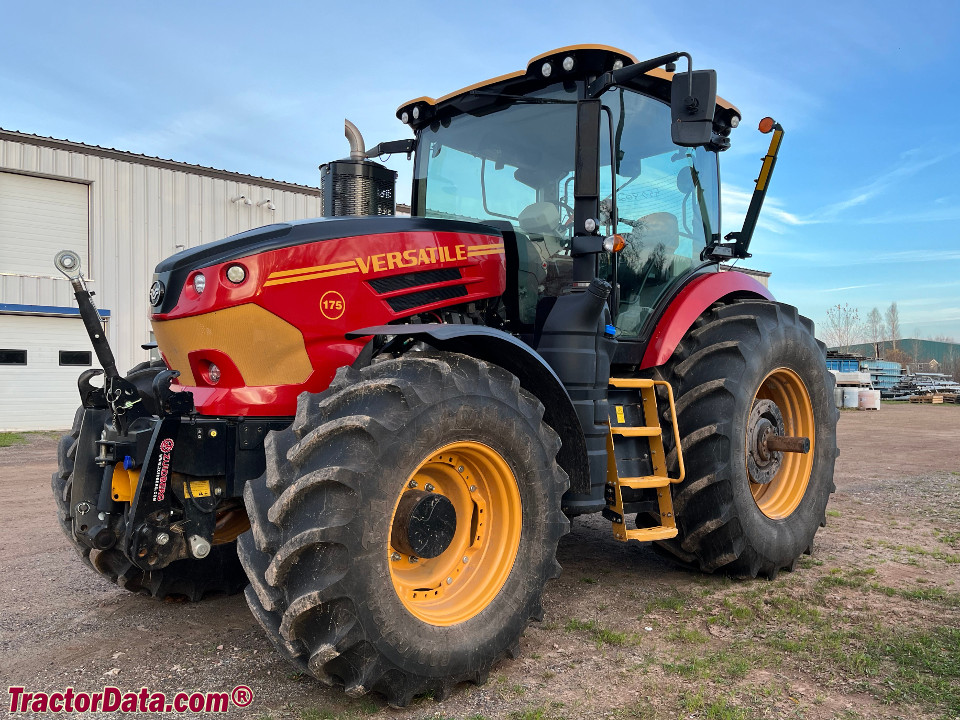

Versatile 175 Nemesis
Versatile 175 Nemesis — Nemesis Series · 147 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
147 hp
Weight
8845 kg
Hover a source tag to verify
Overview
ManufacturerVersatile (a part of Rostselmash)Reference
Row-Crop tractorReference
Built in Winnigpeg, Manitoba, CanadaReference
Original price was $161,758 in 2020Reference
Four-wheel driveReference
Power steeringReference
Trailer brakeshydraulicReference
Cab standard with air-conditioning.Reference
Engine
Cummins 6.7L 6-cyl dieselReference
Fuel tank374.7 LReference
Exhaust fluid (DEF)34.1 LReference
Engine130.5 kWReference
Cummins B6.7Reference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement6.7 LReference
Bore/Stroke107 x 124 mmReference
EmissionsStage VReference
Power130.5 kWReference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Transmission
30-speed partial power shiftReference
TransmissionZF TPT20Reference
Typepartial power shiftReference
Gears30 forward and 15 reverseReference
Six-speed power shift with power shuttle.Reference
PTO & Hydraulics
PTO (claimed)109.6 kWReference
Typeclosed center load-sensingReference
Pressure200.0 barReference
Valves3 to 5Reference
Pump flow117.3 lpmReference
Pump flow159.0 lpmReference
Rear TypeIII/IIINReference
Rear lift7049 kgReference
Front HitchIIINReference
Front lift3999 kgReference
DrawbarCat. 3Reference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Rear PTO Type1000 (1.75)Reference
Dimensions
Wheelbase289 cmReference
Weight8845 kgReference
Front tire600/65R28Reference
Rear tire710/70R38Reference
Standard tires (ag)Front: 600/65R28. Rear: 710/70R38Reference
Optional tires (ag)Front: 380/85R34. Rear: 380/90R50Reference
Optional tires (ag)Front: 380/85R34. Rear: 480/80R46Reference
Optional tires (ag)Front: 480/70R30. Rear: 520/85R42Reference
Optional tires (ag)Front: 480/70R30. Rear: 620/70R42Reference
Height (cab)325 cmReference
Bar rear axle104 by 2489 mmReference
Bar rear axle104 by 2997 mmReference
Front tread154 to 223 cmReference
Rear tread154 to 248 cmReference
Electrical
GroundnegativeReference
Batteries2Reference
Battery CCA950Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
