Tractor · 2010Unverified

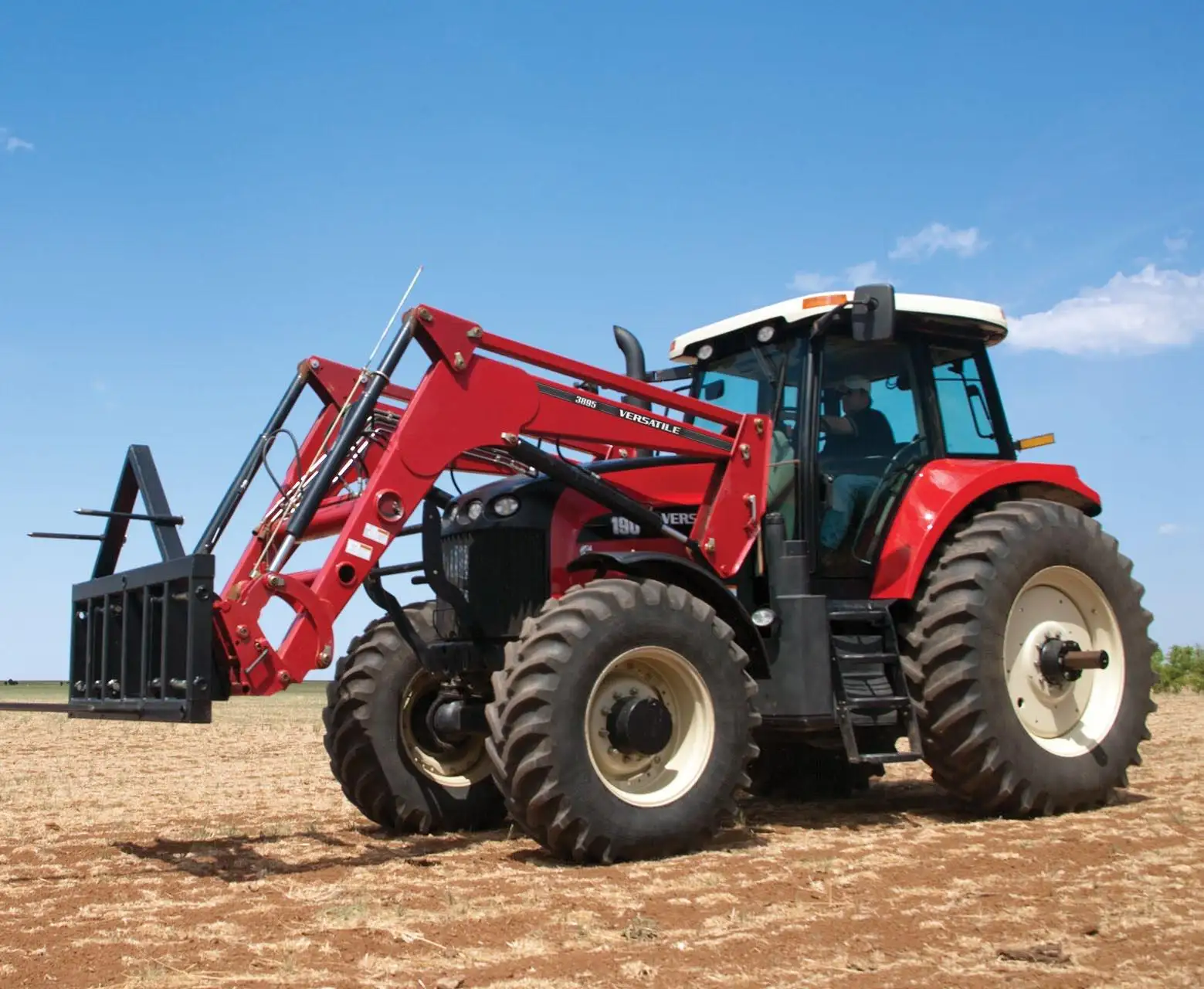

Versatile 190

Name: Versatile 190
Brand: Versatile

Versatile 190 — Row-Crop tractor · 155 hp. Reference specifications; pending source verification.

The Versatile 190 is a tractor model with an engine rating of approximately 155 horsepower. It was manufactured in 2010. The tractor is equipped with a 6-cylinder turbocharged diesel liquid-cooled engine, coupled with four-wheel drive and a hydrostatic transmission. Its operating weight is listed at 8051 kilograms.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

155 hp

Max power

190 hp

Weight

8051 kg

Catalogue coverage

Variants represented

Richest spec table

101 rows

Recorded power

155 hp

Recorded weight

8051 kg

Transmissions

24-speed four-speed power shift

Production years

2010-2010

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerVersatile (a part of Rostselmash)Reference

Row-Crop tractorReference

Built in Winnipeg, Manitoba, CanadaReference

Two- or four-wheel driveReference

Final drivesinboard planetaryReference

Steeringhydrostatic powerReference

Cab standard with air-conditioning.Reference

Engine

Cummins 6.7L 6-cyl dieselReference

Engine141.7 kWReference

Cummins QSBReference

turbocharged and air-to-air aftercooled dieselReference

6-cylinderReference

liquid-cooled inlineReference

Displacement6.7 LReference

Bore/Stroke107 x 124 mmReference

EmissionsTier IIIReference

Power141.7 kWReference

Rated RPM2200Reference

Torque931.6 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Oil capacity14.2 LReference

Coolant capacity26.0 LReference

Fuel TypedieselReference

No of Cylinders6 cylinderReference

Rated engine speed2,200 RPMReference

Emissions complianceTier IIIReference

Engine torque at rated speed311.6 kgReference

Bore and stroke4.21x4.88 inchesReference

Cooling systemliquid-cooled inlineReference

Transmission

24-speed four-speed power shiftReference

Typefour-speed power shiftReference

Gears24 forward and reverseReference

Four push-button power shift gears in six ranges.Reference

Transmission TypePowershiftReference

forward and reverse options24 F and 24RReference

Wheel Drive4WDReference

ClutchFour push-button power shift gears in six rangesReference

Rear Axle Drive Typeinboard planetaryReference

PTO & Hydraulics

PTO (claimed)115.6 kWReference

Hydraulic system78.5 LReference

Typeclosed center load sensing (CCLS)Reference

Capacity78.5 LReference

Pressure200.0 barReference

Valves4Reference

Pump flow113.6 lpmReference

Rear TypeIIIReference

Controlelectronic draft sensing optionalReference

Rear lift5896 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Capacities

Fuel397.4 LReference

Fuel tank397.5 LReference

Crankcase oil volume15 qtsReference

Dimensions

Wheelbase299 cmReference

Weight8051 kgReference

Front tire14.9R28Reference

Rear tire18.4R42Reference

Ag front14.9R28Reference

Ag rear18.4R42Reference

Length505 cmReference

Height (cab)314 cmReference

Height (exhaust)314 cmReference

Ground clearance44 cmReference

Rear axle104 by 2997 mmReference

Front tread182 to 223 cmReference

Rear tread157 to 330 cmReference

Versatile 190 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps160Reference

Charging volts12Reference

Batteries2Reference

Battery CCA950Reference

Battery volts12Reference

Total cold cranking amps950 ampsReference

General

Make & ModelVersatile (a part of Rostselmash)Reference

SCV controlJoystickReference

Country of manufacturerCanadaReference

Power

Max Power190 hpReference

PTO

PTO Power155 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Hydraulics

Hydraulics Typeclosed center load sensing (CCLS)Reference

Maximum operating pressure2,900 psiReference

Remote Valves4Reference

Rear Hitch category (SAE designation)Category IIIReference

Rear Hitch maximum lift capacity5,896.7 kgReference

Rear Hitch Sensing Typeelectronic draft sensing optionalReference

Dimensions & weight

Overall Height315 cmReference

Height Over Cab315 cmReference

Overall Length505.5 cmReference

Overall weight8,051.3 kgReference

Rear Axle Length4.13 by 118 inchesReference

Wheels & tyres

Rear Wheel Type18.4R42Reference

Front Wheel Type14.9R28Reference

Front Wheel tread range72 to 88 inchesReference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Steering & brakes

Steering typehydrostatic powerReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
