Tractor · 2002Unverified

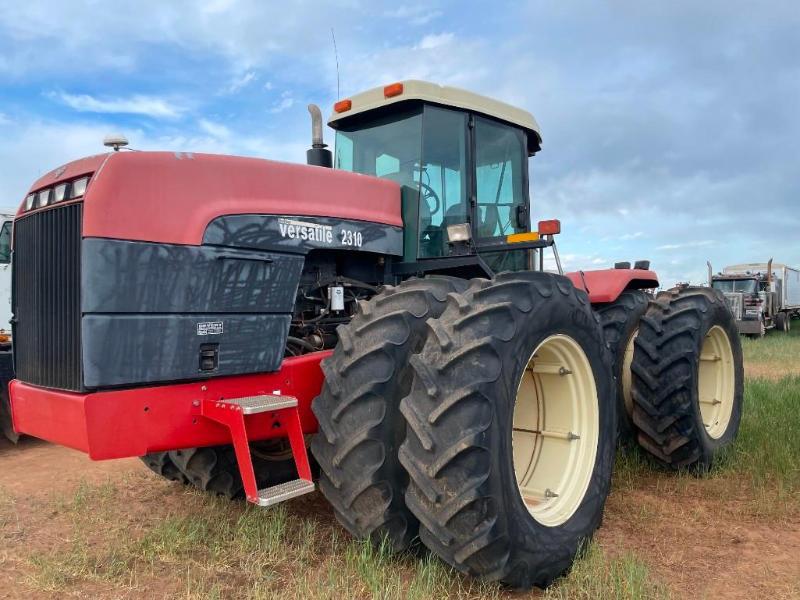

Versatile 2310
Versatile 2310 — Four-wheel Drive (4WD) tractor · 310 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
310 hp
Hover a source tag to verify
Overview
ManufacturerVersatile (a part of Buhler)Reference
Four-wheel Drive (4WD) tractorReference
Built in Winnipeg, Manitoba, CanadaReference
Four-wheel driveReference
Final drivesoutboard planetaryReference
Articulated power steeringReference
Cab standard with air-conditioning.Reference
Engine
Cummins 10.8L 6-cyl dieselReference
Engine231.2 kWReference
Cummins M11Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement10.8 LReference
Bore/Stroke125 x 147 mmReference
Power231.2 kWReference
Compression16.1:1Reference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed partially synchronizedReference
12-speed full power shiftReference
TransmissionQuadShift IIIReference
Typepartially synchronizedReference
Gears12 forward and 4 reverseReference
Four synchronized gears (1-4) in three ranges.Reference
Typefull power shiftReference
Gears12 forward and 2 reverseReference
PTO & Hydraulics
Typeclosed center load sensingReference
Pressure200.0 barReference
Valves4Reference
Pump flow170.3 lpmReference
Rear TypeIVN/IIIReference
Rear lift5896 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type1000 (1.75)Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps130Reference
Charging volts12Reference
Batteries3Reference
Battery CCA625Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
