Tractor · 2002Unverified

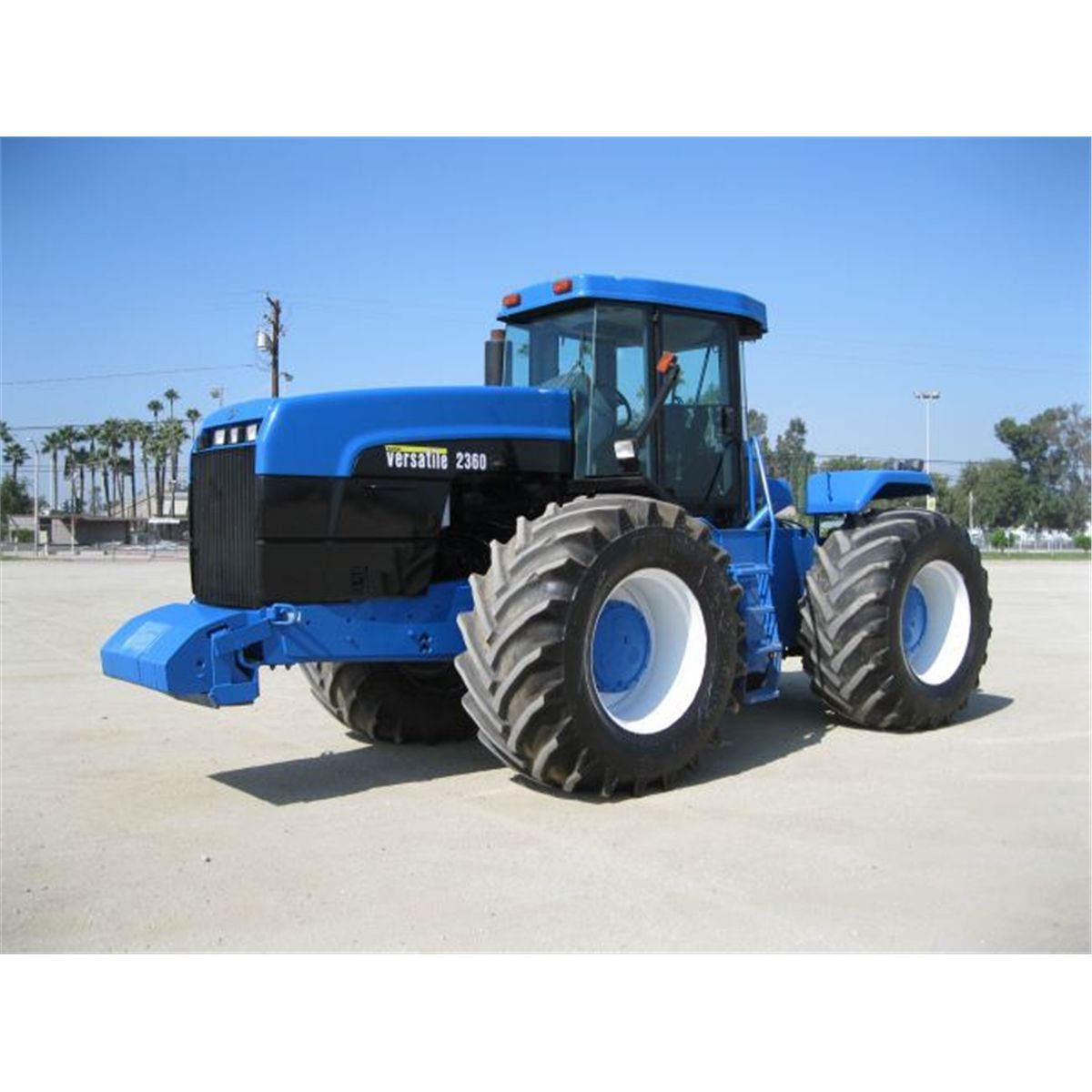

Versatile 2360
Versatile 2360 — Four-wheel Drive (4WD) tractor · 301 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
301 hp
Max power
260.3 kW
Weight
13968 kg
Hover a source tag to verify
Overview
ManufacturerVersatile (a part of Buhler)Reference
Four-wheel Drive (4WD) tractorReference
Built in Winnipeg, Manitoba, CanadaReference
Four-wheel driveReference
Final drivesoutboard planetaryReference
Articulated power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Variants
9684similar New Holland modelReference
Engine
Cummins 14.0L 6-cyl dieselReference
Engine268.5 kWReference
Drawbar (tested)206.7 kWReference
Cummins N14Reference
turbocharged dieselReference
6-cylinder 24-valveReference
liquid-cooled inlineReference
Displacement14.0 LReference
Bore/Stroke140 x 152 mmReference
Power268.5 kWReference
Compression16.5:1Reference
Rated RPM2100Reference
Starter volts12Reference
Max power260.3 kWReference
Power at rated engine speed224.7 kWReference
Max power206.7 kWReference
Transmission
12-speed partially synchronizedReference
12-speed full power shiftReference
TransmissionQuadShift IIIReference
Typepartially synchronizedReference
Gears12 forward and 4 reverseReference
Four synchronized gears in three ranges.Reference
Typefull power shiftReference
Gears12 forward and 2 reverseReference
PTO & Hydraulics
PTO (tested)260.3 kWReference
Typeclosed center load sensingReference
Pressure200.0 barReference
Valves4Reference
Valves5 (with 3-point hitch)Reference
Total flow189.2 lpmReference
Rear Type4N/3Reference
Rear lift5896 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type1000 (1.75)Reference
Dimensions
Wheelbase337 cmReference
Weight13968 kgReference
Front tire20.8R42Reference
Rear tire20.8R42Reference
Ag front20.8R42Reference
Ag rear20.8R42Reference
Length675 cmReference
Height372 cmReference
Ground clearance50 cmReference
Electrical
GroundnegativeReference
Charging amps130Reference
Batteries3Reference
Battery CCA950Reference
Battery volts12Reference
Test results
Diesel 12-speed 4WDJune 1 - July 31, 2000Link: OCED Tractor Test 1942 fileReference
PTO performanceReference
Fuel use70.0 l/hourReference
Fuel use67.4 l/hourReference
Drawbar performanceReference
Max pull14222 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
