Tractor · 2002Unverified

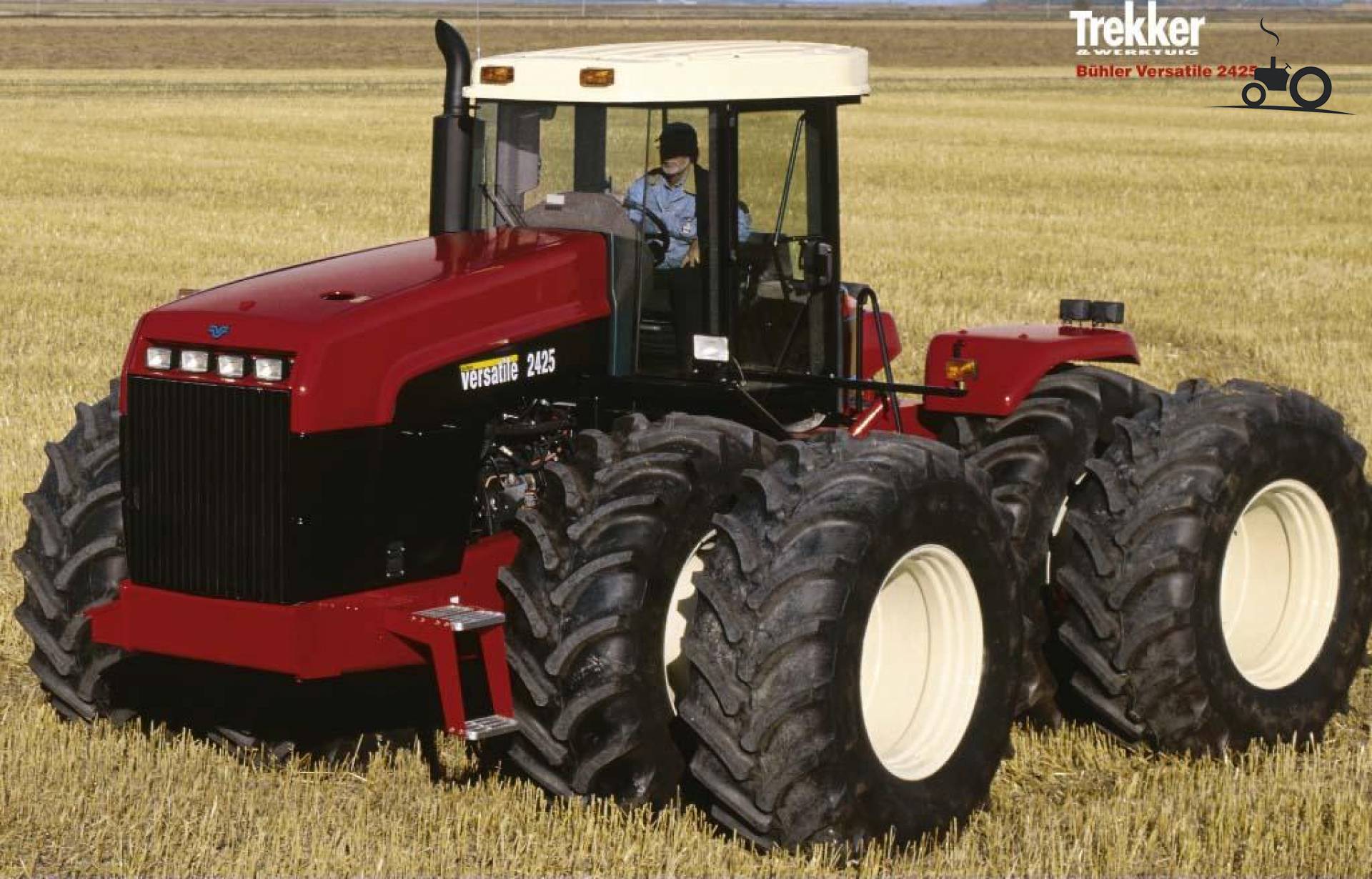

Versatile 2425
Versatile 2425 — Four-wheel Drive (4WD) tractor · 425 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
425 hp
Hover a source tag to verify
Overview
ManufacturerVersatile (a part of Buhler)Reference
Four-wheel Drive (4WD) tractorReference
Built in Winnipeg, Manitoba, CanadaReference
Four-wheel driveReference
Final drivesoutboard planetaryReference
Articulated power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Variants
9884similar New Holland modelReference
Engine
Cummins 14.0L 6-cyl dieselReference
Engine316.9 kWReference
Cummins N14Reference
turbocharged dieselReference
6-cylinder 24-valveReference
liquid-cooled inlineReference
Displacement14.0 LReference
Bore/Stroke140 x 152 mmReference
Power316.9 kWReference
Compression16.5:1Reference
Rated RPM2100Reference
Starter volts12Reference
Transmission
12-speed partially synchronizedReference
TransmissionQuadShift IIIReference
Typepartially synchronizedReference
Gears12 forward and 4 reverseReference
Four synchronized gears in three ranges.Reference
PTO & Hydraulics
Typeclosed center load sensingReference
Pressure200.0 barReference
Valves4Reference
Valves5 (with 3-point hitch)Reference
Total flow189.2 lpmReference
Rear TypeIVN/IIIReference
Rear lift5896 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulic wet discReference
Rear PTO Type1000 (1.75)Reference
Dimensions
Wheelbase337 cmReference
Length675 cmReference
Height372 cmReference
Ground clearance50 cmReference
2425 Serial Numbers
2002D108561 (NH blue)Reference
2002D300001 (red)Reference
2003D300315Reference
2004D300918Reference
2005D301551Reference
2006D302191Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging amps130Reference
Batteries3Reference
Battery CCA950Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
