Tractor · 1984Unverified

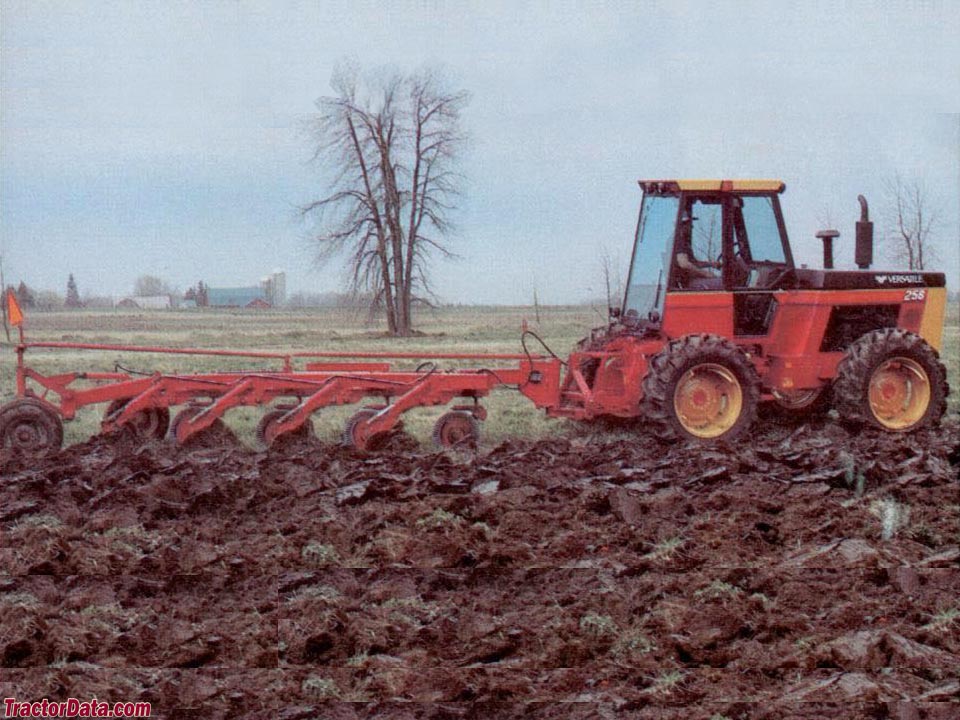

Versatile 256
Versatile 256 — 200 Series · 86 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
86 hp
Weight
8700 to 11650 pounds
Hover a source tag to verify
Overview
ManufacturerVersatileReference
Built in Winnipeg, Manitoba, CanadaReference
Original price was $41,000 in 1985Reference
The Versatile 256 is a bi-directional tractor, designed to operate in both directions of travel. The operator console rotates 180-degrees.Reference
Four-wheel driveReference
SteeringpowerReference
Hydraulic disc brakesReference
Cab standard with 180-degree console rotation.Reference
Engine
Cummins 3.9L 4-cyl dieselReference
Engine75.0 kWReference
Cummins 4BT 3.9Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke102 x 120 mmReference
Power75.0 kWReference
Rated RPM2500Reference
Torque339.0 NmReference
Torque RPM1600Reference
Coolant capacity22.0 LReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
PTO (claimed)64.0 kWReference
Hydraulic system32.2 LReference
Typeclosed center load sensingReference
Capacity32.2 LReference
Pressure193.1 barReference
Rear valves3Reference
Front valves2Reference
Pump flow87.1 lpmReference
Steering flow18.9 lpmReference
Rear TypeII/IReference
Controlposition controlReference
Rear lift (at 24"/610mm)1995 kgReference
Front HitchII/IReference
Front lift (at ends)1481 kgReference
Front lift (at 24"/610mm)907 kgReference
Rear PTOindependentReference
Clutchwet discReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2500Reference
Engine RPM1000@2500Reference
Front PTOoptionalReference
Front PTO Type540/1000 (1.375)Reference
Capacities
Fuel147.6 LReference
Dimensions
Wheelbase218 cmReference
Weight8700 to 11650 poundsReference
Front tire14.9x28Reference
Rear tire14.9x28Reference
Ag front14.9x28Reference
Ag rear14.9x28Reference
Ag front13.6x28Reference
Ag front16.9x28Reference
Ag rear13.6x28Reference
Ag rear16.9x28Reference
Height284 cmReference
Shipping weight3946 kgReference
Operating weight5284 kgReference
Versatile 256 attachments

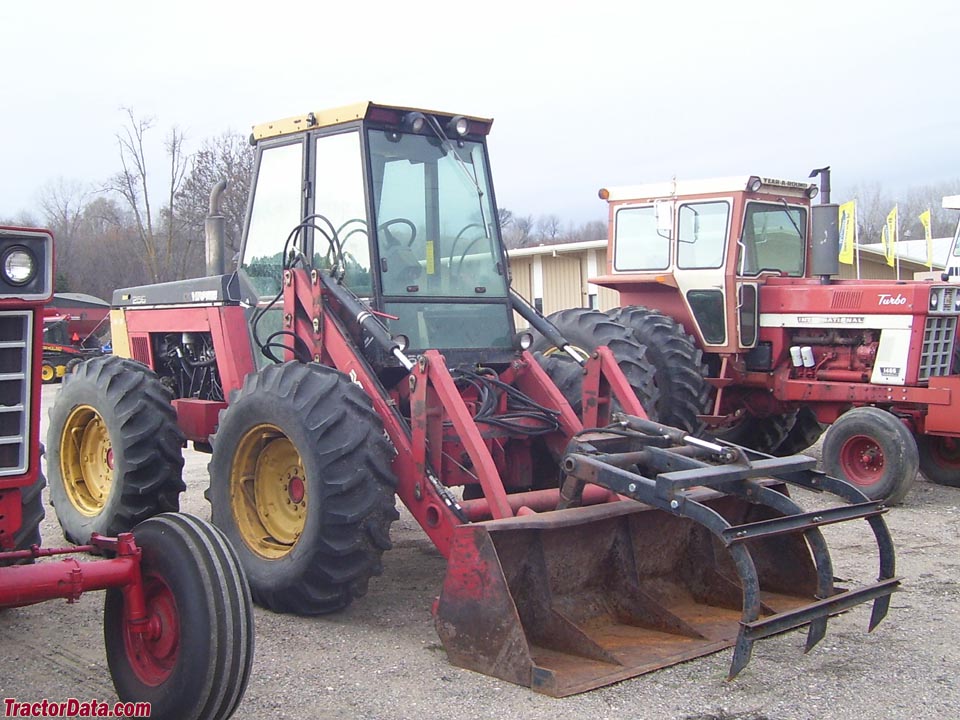

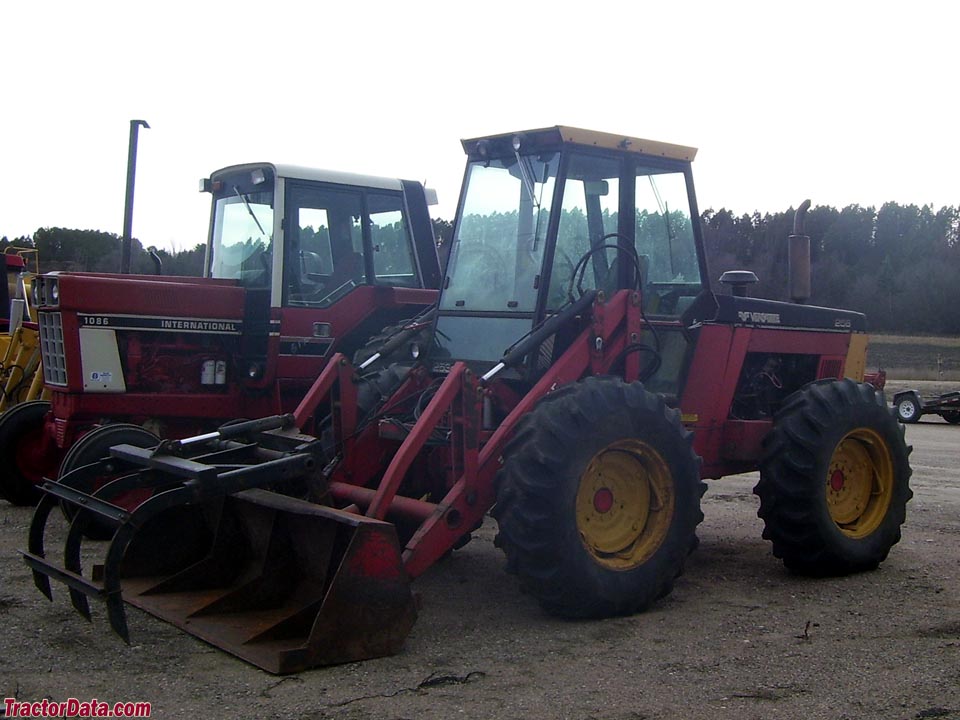

front-end loaderReference
256 Serial Numbers
1984205101Reference
1985253500Reference
Final253861Reference
FAQ: How to read a serial number table.Reference
Electrical
Charging systemalternatorReference
Batteries2Reference
Battery CCA580Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
