Tractor · 1985Unverified

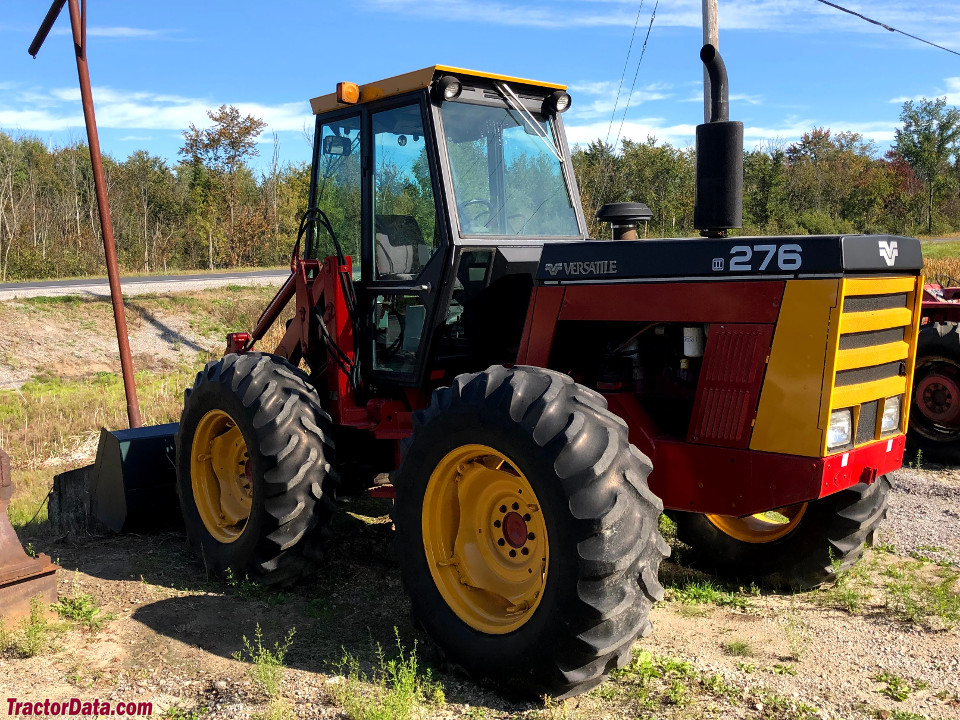

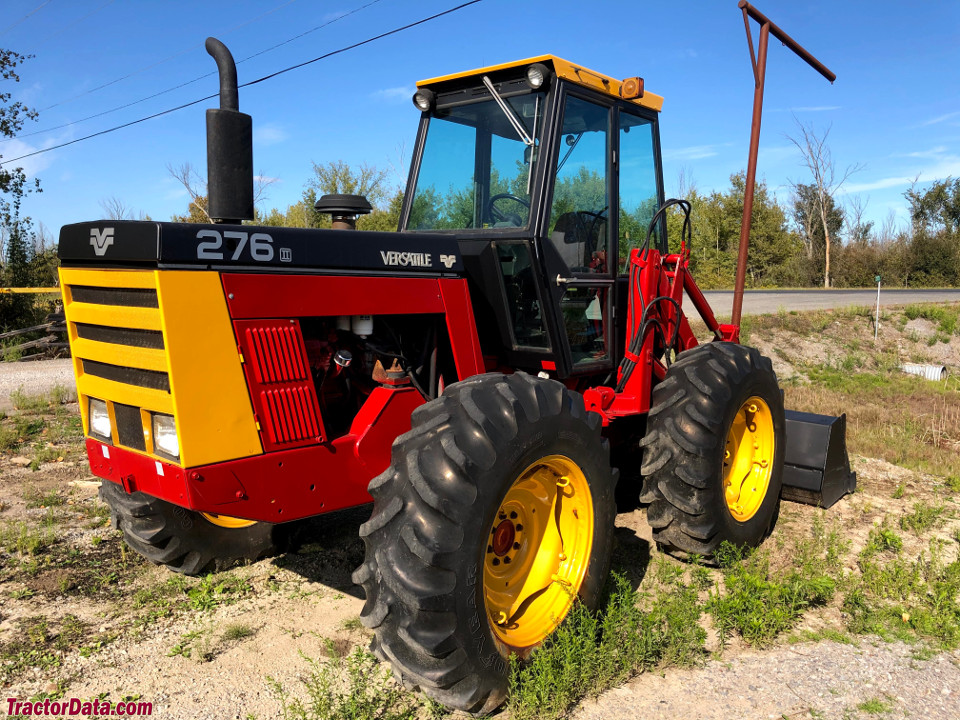

Versatile 276
Versatile 276 — 200 Series · 101 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
101 hp
Weight
8700 to 11650 pounds
Hover a source tag to verify
Overview
ManufacturerVersatileReference
Built in Winnipeg, Manitoba, CanadaReference
Original price was $48,000 in 1990Reference
The Versatile 276 is a "Bidirectional" tractor in which the operator console rotates 180-degrees to allow the tractor to be operated in either direction. The 276 was available with both front and rear, drawbars, 3-point-lift, and PTOs.Reference
Four-wheel driveReference
Steeringhydrostatic powerReference
Hydraulic disc brakesReference
Cab standard with 180-degree console rotation.Reference
Engine
Cummins 3.9L 4-cyl dieselReference
Engine87.0 kWReference
CumminsReference
aftercooled turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke102 x 120 mmReference
Power87.0 kWReference
Torque382.4 NmReference
Torque RPM1500Reference
Starter volts12Reference
Coolant capacity22.0 LReference
PTO & Hydraulics
PTO (claimed)75.0 kWReference
Hydraulic system32.2 LReference
Typeclosed center load sensingReference
Capacity32.2 LReference
Pressure193.1 barReference
Rear valves3Reference
Front valves2Reference
Pump flow87.1 lpmReference
Steering flow18.2 lpmReference
Steering press.158.6 barReference
Rear TypeII/IReference
Controlposition controlReference
Rear lift (at 24"/610mm)1995 kgReference
Front HitchII/IReference
Front lift (at ends)1481 kgReference
Front lift (at 24"/610mm)907 kgReference
Rear PTOindependentReference
Clutchwet discReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2500Reference
Engine RPM1000@2500Reference
Front PTOoptionalReference
Front PTO Type540/1000 (1.375)Reference
Capacities
Fuel147.6 LReference
Dimensions
Wheelbase218 cmReference
Weight8700 to 11650 poundsReference
Front tire14.9-28Reference
Rear tire14.9-28Reference
Ag front14.9-28Reference
Ag rear14.9-28Reference
Shipping weight3946 kgReference
Operating weight5284 kgReference
Versatile 276 attachments

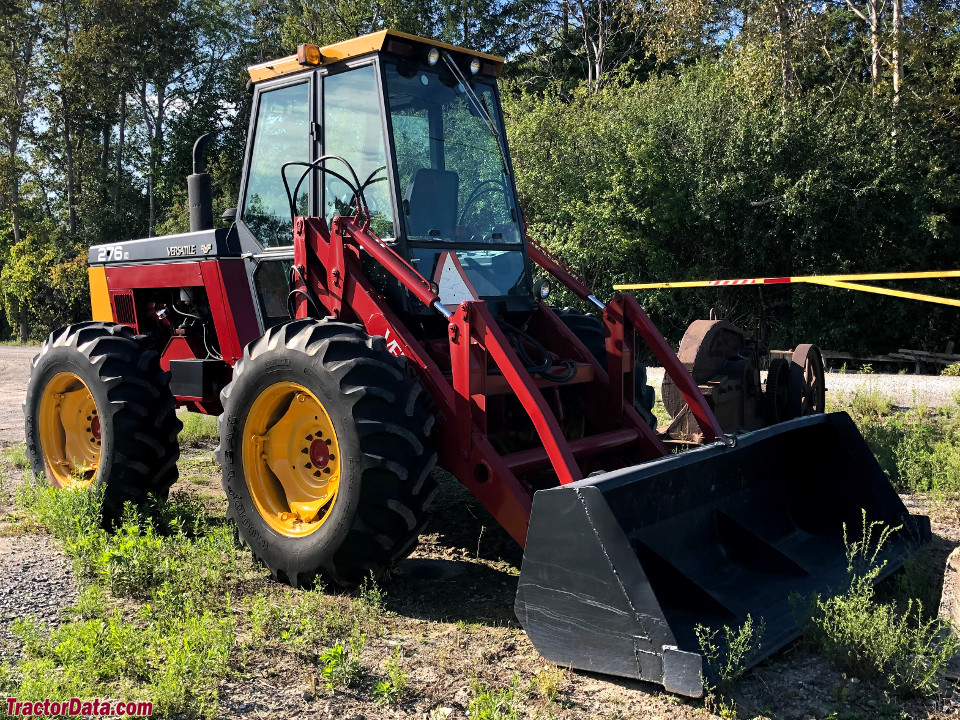

front-end loaderReference
276 Serial Numbers
Location:Serial number plate on the operator console.Reference
1985241025Reference
1986273100Reference
1987------Reference
1988332100Reference
1989432100Reference
1990453100Reference
Final453972Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps72Reference
Batteries2Reference
Battery volts12Reference
Transmission
TransmissionhydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
Oil capacity32.2 LReference
Hydrostatic drive matched to a 3-speed constant mesh transmission.Reference
Speeds
16.9x28 tiresReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
