Tractor · 2009Unverified

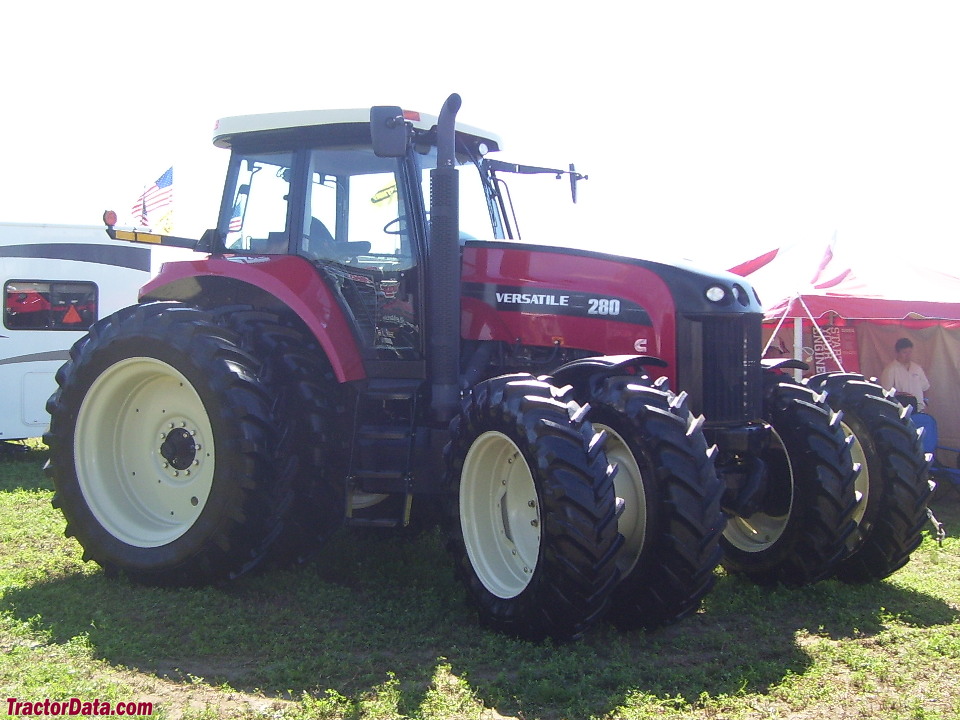

Versatile 280
Versatile 280 — Model year 2009-20112012-2014 · 225 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
225 hp
Weight
17700 to 20050 pounds
Hover a source tag to verify
Overview
ManufacturerVersatileReference
Row-Crop tractorReference
Built in Winnipeg, Manitoba, CanadaReference
Two- or four-wheel driveReference
Power steeringReference
Cab standardReference
Engine
Cummins 8.3L 6-cyl dieselReference
Engine208.8 kWReference
Cummins QSCReference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement8.3 LReference
Bore/Stroke114 x 135 mmReference
Power208.8 kWReference
Rated RPM2200Reference
Torque1356.0 NmReference
Torque RPM1400Reference
Oil capacity18.9 LReference
Coolant capacity27.4 LReference
Transmission
18-speedReference
Transmissionpower shiftReference
Gears18 forward and 9 reverseReference
PTO & Hydraulics
PTO (claimed)167.8 kWReference
Hydraulic system117.3 LReference
Typeclosed center load sensingReference
Capacity117.3 LReference
Pressure200.0 barReference
Valves3 to 4Reference
Total flow113.6 lpmReference
Total flow208.2 lpmReference
Rear TypeIIIReference
Rear lift6804 kgReference
Capacities
Fuel416.4 LReference
Dimensions
Wheelbase307 cmReference
Wheelbase317 cmReference
Weight17700 to 20050 poundsReference
Length508 cmReference
Length520 cmReference
Height (cab)317 cmReference
Height (exhaust)320 cmReference
Ground clearance47 cmReference
Shipping8028 kgReference
Shipping8686 kgReference
Shipping9094 kgReference
Electrical
Charging systemalternatorReference
Charging amps130Reference
Charging amps160Reference
Batteries2Reference
Battery CCA950Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
