Tractor · 1973Unverified

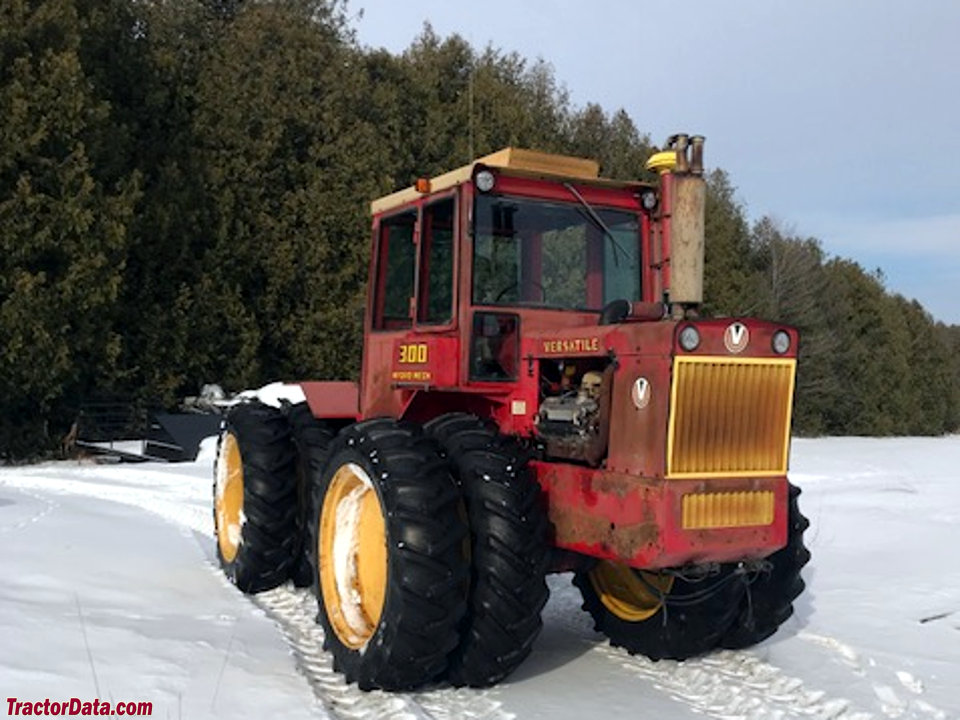

Versatile 300
Versatile 300 — Four-wheel Drive (4WD) tractor · 120 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
120 hp
Weight
5760 kg
Hover a source tag to verify
Overview
ManufacturerVersatileReference
Four-wheel Drive (4WD) tractorReference
Built in Winnipeg, Manitoba, CanadaReference
Total built200Reference
Original price was $17,000 in 1973Reference
Drive4x4 4WDReference
Cab standard with available air-conditioning..Reference
Engine
Cummins 6.2L 6-cyl dieselReference
Fuel tank246.0 LReference
Engine115.6 kWReference
Cummins V378Reference
dieselReference
6-cylinder V-6-valveReference
liquid-cooledReference
Displacement6.2 LReference
Bore/Stroke117 x 95 mmReference
Power115.6 kWReference
Rated RPM2800Reference
Coolant capacity26.5 LReference
Transmission
hydrostaticReference
TransmissionHydro-MechReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
Clutch330.2mm dry discReference
PTO & Hydraulics
PTO (claimed)89.5 kWReference
Rear TypeIIIReference
Rear lift (at 24"/610mm)1995 kgReference
Rear PTOliveReference
Rear PTO Type1000Reference
Dimensions
Wheelbase279 cmReference
Weight5760 kgReference
Front tire18.4x34Reference
Rear tire18.4x34Reference
Ag front18.4x34Reference
Ag rear18.4x34Reference
Length538 cmReference
Width142 cmReference
Height (hood)203 cmReference
Height (cab)314 cmReference
Shipping weight5760 kgReference
Front tread142 to 243 cmReference
Rear tread142 to 243 cmReference
300 Serial Numbers
197330201Reference
Final30400Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging amps58Reference
Batteries2Reference
Battery CCA204Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
