Tractor · 2014Unverified
Versatile 310

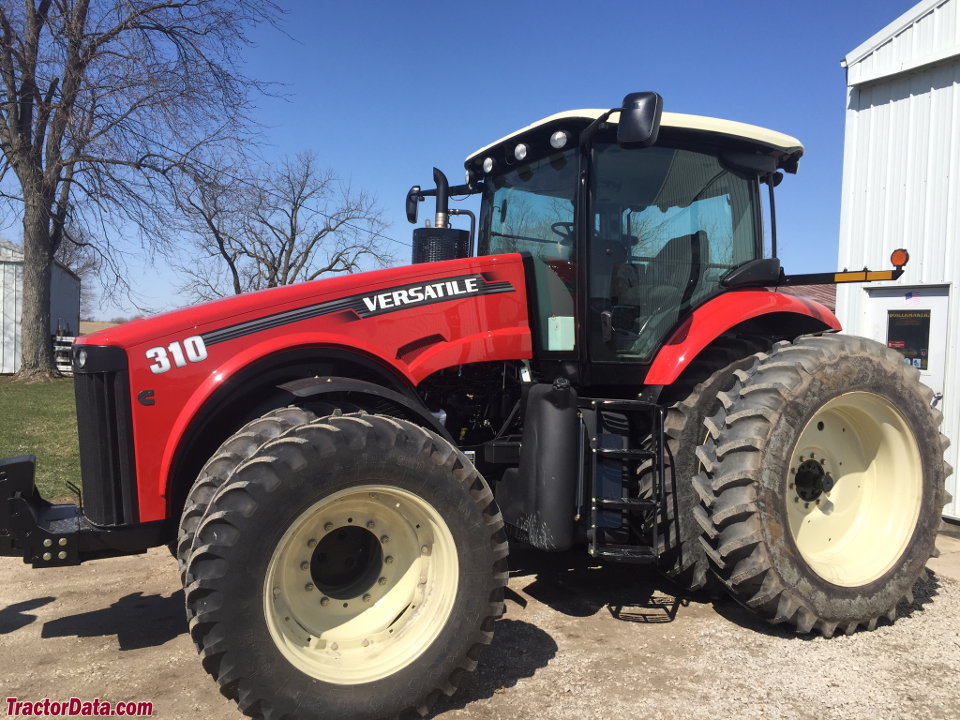

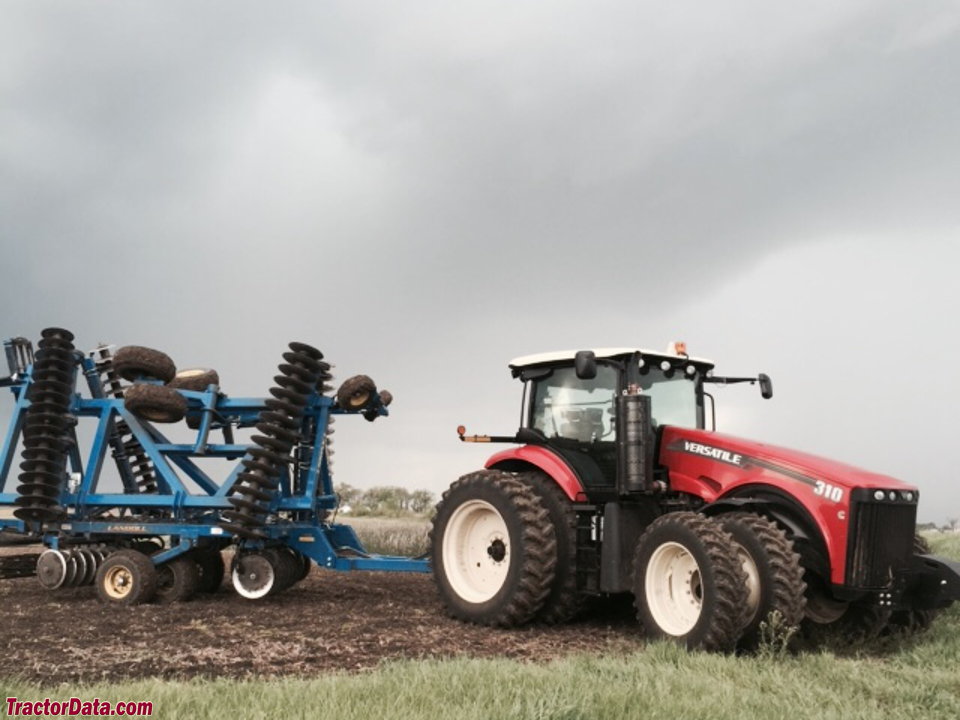

Versatile 310 — Row-Crop tractor · 310 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
310 hp
Weight
10861 kg
Hover a source tag to verify
Overview
ManufacturerVersatile (a part of Rostselmash)Reference
Row-Crop tractorReference
Built in Winnipeg, Manitoba, CanadaReference
Four-wheel driveReference
Final drivesinboard planetaryReference
Power steeringReference
Cab standard with air-conditioning.Reference
Engine
Cummins 8.9L 6-cyl dieselReference
Fuel tank643.5 LReference
Engine231.2 kWReference
Cummins QSL9Reference
turbocharged and air-to-air aftercooled dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement8.9 LReference
Bore/Stroke114 x 145 mmReference
EmissionsInterim Tier IVReference
Emission controlexhaust gas recirculation and diesel particulate filter (DPF) (EGR)Reference
Power231.2 kWReference
Maximum Power253.5 kWReference
Rated RPM2100Reference
Torque1349.2 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed full power shiftReference
Typefull power shiftReference
Gears16 forward and 9 reverseReference
PTO & Hydraulics
Typeclosed center load sensing (CCLS)Reference
Pressure200.0 barReference
Valves4 to 6Reference
Pump flow208.2 lpmReference
Pump flow283.9 lpmReference
Rear TypeIII/IIINReference
Rear lift8550 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase316 cmReference
Weight10861 kgReference
Front tire420/90R30Reference
Rear tire480/80R46Reference
Ag front420/90R30Reference
Ag rear480/80R46Reference
Length640 cmReference
Height (cab)342 cmReference
Max weight14878 kgReference
Bar rear axle109 by 3048 mmReference
Front tread152 to 223 cmReference
Rear tread152 to 335 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Charging volts12Reference
Batteries2Reference
Battery CCA950Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
