Tractor · 2008Unverified

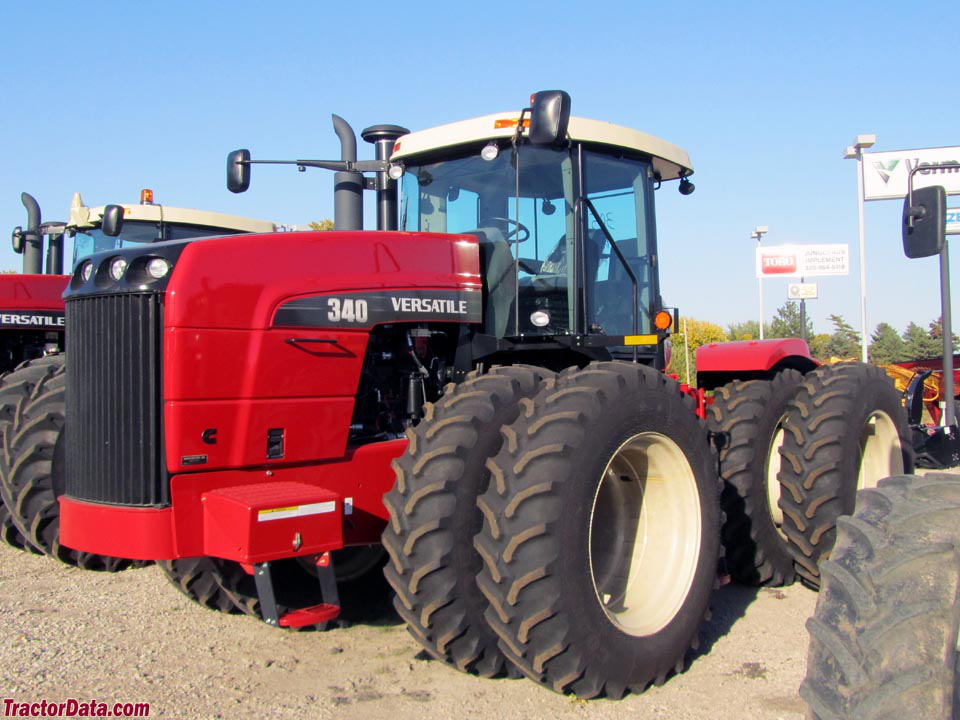

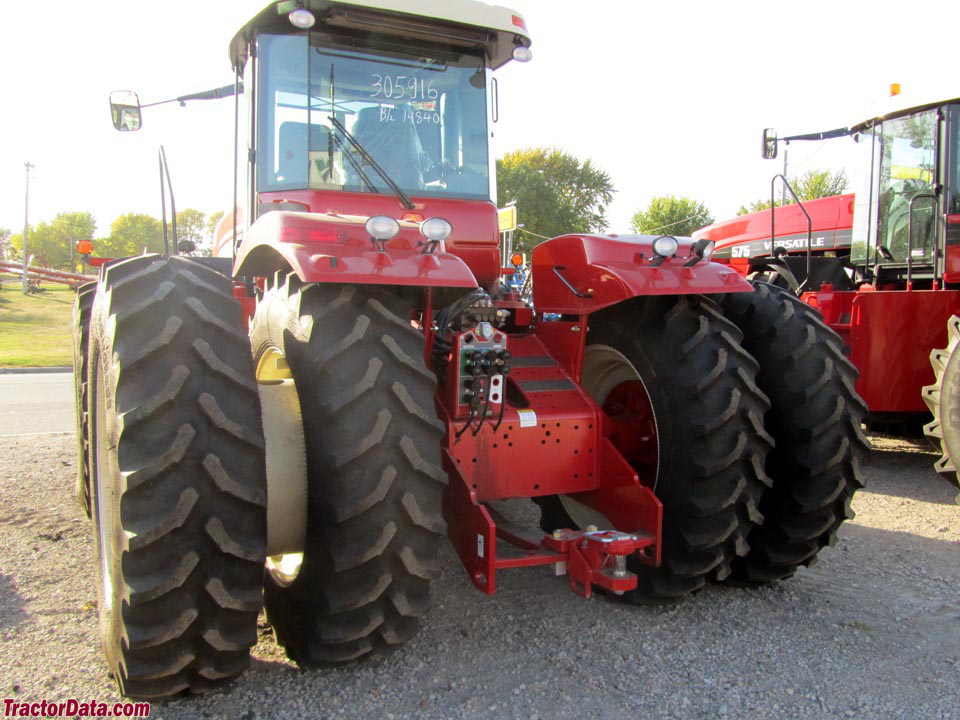

Versatile 340
Versatile 340 — Four-wheel Drive (4WD) tractor · 340 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
340 hp
Weight
14288 kg
Hover a source tag to verify
Overview
ManufacturerVersatile (a part of Rostselmash)Reference
Four-wheel Drive (4WD) tractorReference
Built in Winnipeg, Manitoba, CanadaReference
Four-wheel driveReference
Final drivesoutboard planetaryReference
Differential lockoptionalReference
Steeringhydrostatic powerReference
Dry caliper brakesReference
Cab standard with air-conditioning.Reference
Engine
Cummins 10.8L 6-cyl dieselReference
Engine253.5 kWReference
Cummins QSM11Reference
turbocharged and air-to-air aftercooled dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement10.8 LReference
Bore/Stroke125 x 147 mmReference
Power253.5 kWReference
Maximum Power279.6 kWReference
Torque1559.4 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Oil capacity36.7 LReference
Coolant capacity60.0 LReference
Transmission
12-speed partiallly synchronizedReference
12-speed full power shiftReference
TransmissionQuadshiftReference
Typepartiallly synchronizedReference
Gears12 forward and 4 reverseReference
Typefull power shiftReference
Gears12 forward and 2 reverseReference
Capacities
Fuel946.2 LReference
Max capacity15422 kgReference
PTO & Hydraulics
Hydraulic system75.7 LReference
Typeclosed center load sensing (CCLS)Reference
Capacity75.7 LReference
Pressure200.0 barReference
Valves4 to 6Reference
Pump flow189.2 lpmReference
Dimensions
Wheelbase360 cmReference
Weight14288 kgReference
Front tire710/70R38Reference
Rear tire710/70R38Reference
Ag front710/70R38Reference
Ag rear710/70R38Reference
Length673 cmReference
Height (cab)363 cmReference
Height (exhaust)370 cmReference
Ground clearance42 cmReference
14288 kgReference
Max Drawbar2721 kgReference
Max Drawbar4082 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps160Reference
Charging volts12Reference
Batteries3Reference
Battery CCA950Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
