Tractor · 2016Unverified

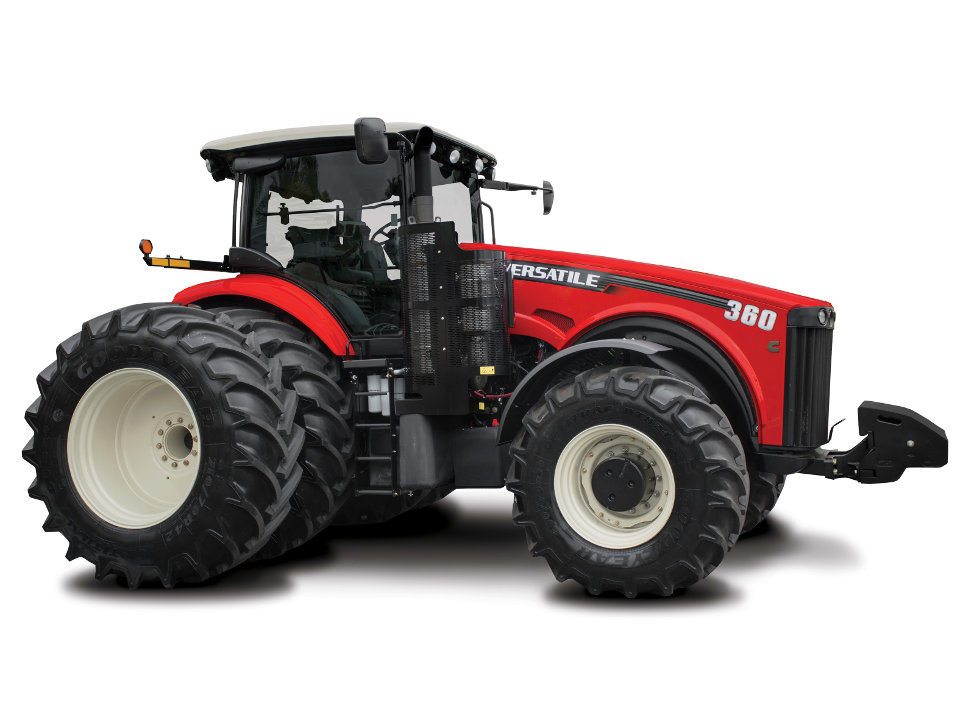

Versatile 360
Versatile 360 — Row-Crop tractor · 360 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
360 hp
Weight
10861 kg
Hover a source tag to verify
Overview
ManufacturerVersatile (a part of Rostselmash)Reference
Row-Crop tractorReference
Built in Winnipeg, Manitoba, CanadaReference
Four-wheel driveReference
Power steeringReference
Cab standard with air-conditioning.Reference
Engine
Cummins 8.9L 6-cyl dieselReference
Fuel tank624.5 LReference
Exhaust fluid (DEF)34.1 LReference
Engine268.5 kWReference
Cummins QSL9Reference
turbocharged and intercooled dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement8.9 LReference
Bore/Stroke114 x 145 mmReference
EmissionsTier IVReference
Power268.5 kWReference
Maximum Power298.3 kWReference
Rated RPM2100Reference
Torque1625.8 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed full power shiftReference
Typefull power shiftReference
Gears16 forward and 9 reverseReference
PTO & Hydraulics
Typeclosed center load sensing (CCLS)Reference
Pressure200.0 barReference
Valves4 to 6Reference
Pump flow208.2 lpmReference
Pump flow272.5 lpmReference
Rear TypeIVNReference
Rear lift7829 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Dimensions
Wheelbase327 cmReference
Weight10861 kgReference
Length637 cmReference
Height (cab)334 cmReference
Max weight16057 kgReference
Bar rear axle119 by 3048 mmReference
Front tread152 to 223 cmReference
Rear tread152 to 304 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Batteries2Reference
Battery CCA950Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
