Tractor · 2008Unverified

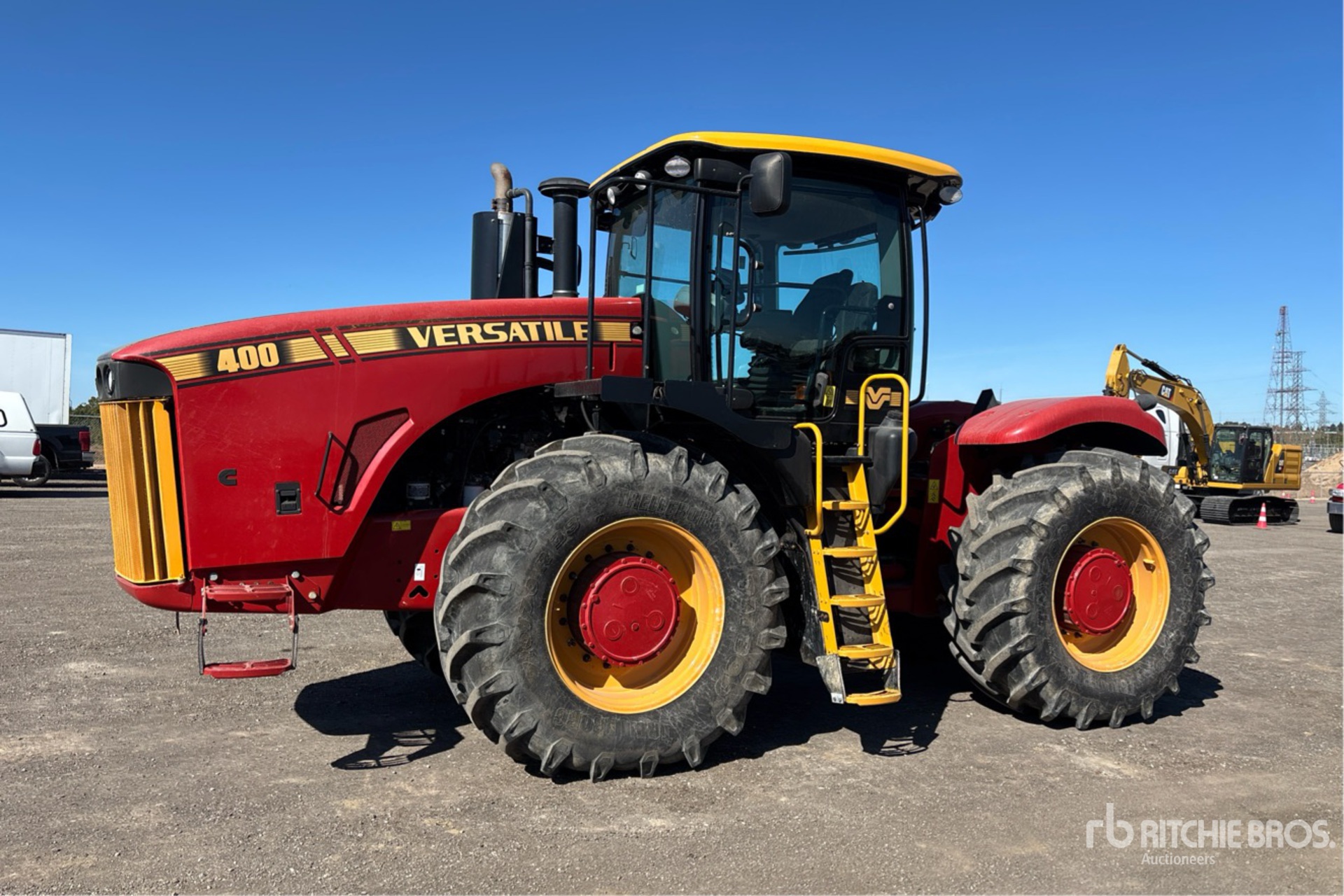

Versatile 400
Versatile 400 — Model year 2008-20112012-2017 · 320 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
320 hp
Weight
14288 kg
Hover a source tag to verify
Overview
ManufacturerVersatile (a part of Rostselmash)Reference
Four-wheel Drive (4WD) tractorReference
Built in Winnipeg, Manitoba, CanadaReference
Four-wheel driveReference
Final drivesoutboard planetaryReference
Differential lockoptionalReference
Steeringhydrostatic powerReference
Dual dry caliper brakesReference
Cab standard with air-conditioning.Reference
Engine
Cummins 11.9L 6-cyl dieselReference
Fuel tank1135.5 LReference
Engine298.3 kWReference
Cummins QSX11.9Reference
turbocharged and air-to-air aftercooled dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement11.9 LReference
Bore/Stroke130 x 150 mmReference
EmissionsInterim Tier IVReference
Power298.3 kWReference
Maximum Power335.6 kWReference
Rated RPM2100Reference
Torque2169.6 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed partiallly synchronizedReference
16-speed full power shiftReference
Typepartiallly synchronizedReference
Gears12 forward and 4 reverseReference
TransmissionCaterpillar TA19Reference
Typefull power shiftReference
Gears16 forward and 4 reverseReference
Clutchwet discReference
PTO & Hydraulics
PTO (claimed)238.6 kWReference
Typeclosed center load sensing (CCLS)Reference
Pressure200.0 barReference
Valves4 to 6Reference
Pump flow200.6 lpmReference
Pump flow401.2 lpmReference
Rear TypeIII/IVNReference
Rear PTO Type1000 (1.75)Reference
Dimensions
Wheelbase342 cmReference
Weight14288 kgReference
Front tire710/70R38Reference
Rear tire710/70R38Reference
Ag front710/70R38Reference
Ag rear710/70R38Reference
14288 kgReference
Max Drawbar2721 kgReference
Max Drawbar4082 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps200Reference
Charging volts12Reference
Batteries3Reference
Battery CCA950Reference
Battery volts12Reference
Capacities
Max capacity18144 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
