Tractor · 2018Unverified

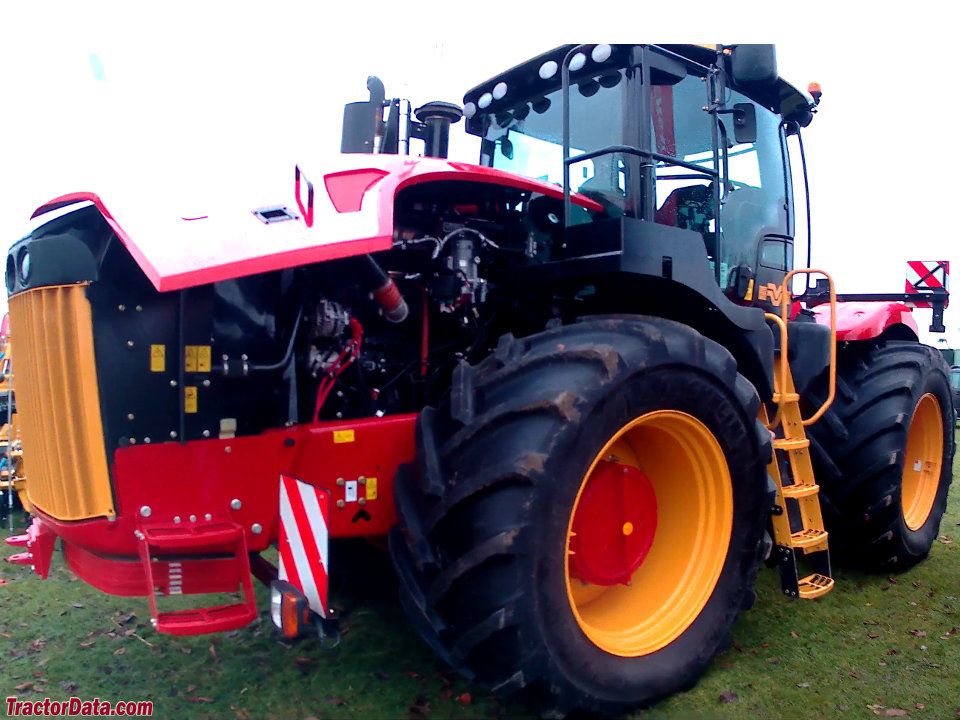

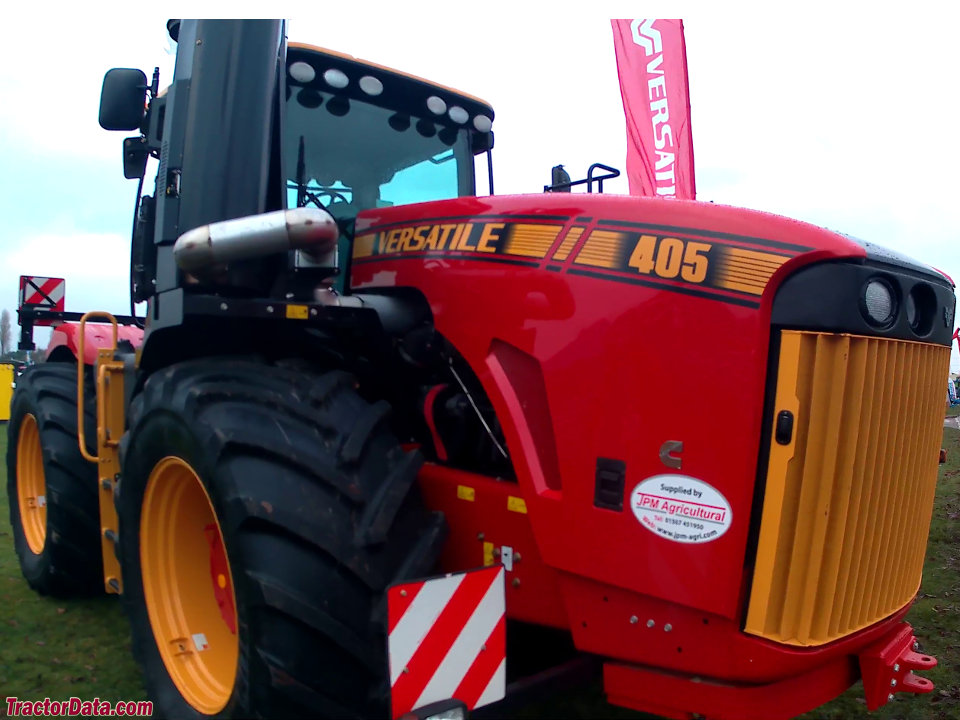

Versatile 405

Name: Versatile 405
Brand: Versatile

Versatile 405 — Four-wheel Drive (4WD) tractor · 320 hp. Reference specifications; pending source verification.

The Versatile 405 is a tractor with a rated power output of 320 hp, positioning it at the more powerful end of its class. It was manufactured in 2018. It features a 6-cylinder turbocharged diesel liquid-cooled engine and four-wheel drive with a powershift transmission. The tractor has an operating weight of 14288 kg and is suitable for operations covering an area of 1,500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

320 hp

Max power

450 hp

Weight

14288 kg

Catalogue coverage

Variants represented

Richest spec table

79 rows

Recorded power

320 hp

Recorded weight

14288 kg

Transmissions

16-speed full power shift

Production years

2018-2018

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerVersatile (a part of Rostselmash)Reference

Four-wheel Drive (4WD) tractorReference

Built in Winnipeg, Manitoba, CanadaReference

Four-wheel driveReference

Final drivesoutboard planetaryReference

Hydraulic disc brakesReference

Cab standard with air-conditioning.Reference

Engine

Cummins 11.8L 6-cyl dieselReference

Fuel tank946.2 LReference

Exhaust fluid (DEF)94.6 LReference

Engine298.3 kWReference

Cummins QSG12Reference

turbocharged aftercooled dieselReference

6-cylinderReference

liquid-cooled inlineReference

Displacement11.8 LReference

Bore/Stroke132 x 144 mmReference

EmissionsTier IVReference

Power298.3 kWReference

Maximum Power335.6 kWReference

Rated RPM1800Reference

Torque1966.2 NmReference

Torque RPM1400Reference

Starter typeelectricReference

Fuel TypeDieselReference

No of Cylinders6Reference

Engine torque at rated speed725.7 kgReference

AspirationTurbocharged and air-to-air aftercooledReference

Transmission

16-speed full power shiftReference

TransmissionCaterpillar TA19Reference

Typefull power shiftReference

Gears16 forward and 4 reverseReference

Transmission TypePowershiftReference

forward and reverse options16F x 4RReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)238.6 kWReference

Typeclosed center load sensingReference

Pressure200.0 barReference

Valves4 to 6Reference

Pump flow200.6 lpmReference

Pump flow401.2 lpmReference

Rear TypeIVN/IIIReference

Rear PTO Type1000 (1.375)Reference

Dimensions

Wheelbase342 cmReference

Weight14288 kgReference

Shipping14288 kgReference

Max Drawbar2721 kgReference

Max Drawbar4082 kgReference

Electrical

Charging systemalternatorReference

Charging amps200Reference

Charging volts12Reference

Batteries3Reference

Battery CCA1000Reference

Battery volts12Reference

Alternator size12 VReference

Battery options12 VReference

Capacities

Max capacity18144 kgReference

Capacity11.8 LReference

Diesel exhaust fluid (DEF) tank95 LReference

General

Make & ModelCummins X12 (Stage V)Reference

Drawbar categoryCategory IVReference

Drawbar Maximum vertical load4,082.3 kgReference

DisplayAvailableReference

RadioAvailableReference

ISOBUS readyTRUEReference

Power

Max Power450 hpReference

Rated Power400 hpReference

PTO

PTO torque rise60 percentReference

Rear PTO PowerTRUEReference

Rear PTO RPM1,000 rpmReference

Hydraulics

Pump Rated Output (total)53 gpmReference

Hydraulics TypeClosed center load sensing systemReference

Maximum operating pressure2,900 psiReference

Rear Hitch category (SAE designation)Category IVN / IIIReference

Rear Hitch maximum lift capacity5,896.7 kgReference

Dimensions & weight

Overall weight14,288.1 kgReference

Operator station

Cab AvailabilityAvailableReference

Cab glass area85.9 sq. ftReference

Cab space175.5 cu.ft.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
