Tractor · 2018Unverified

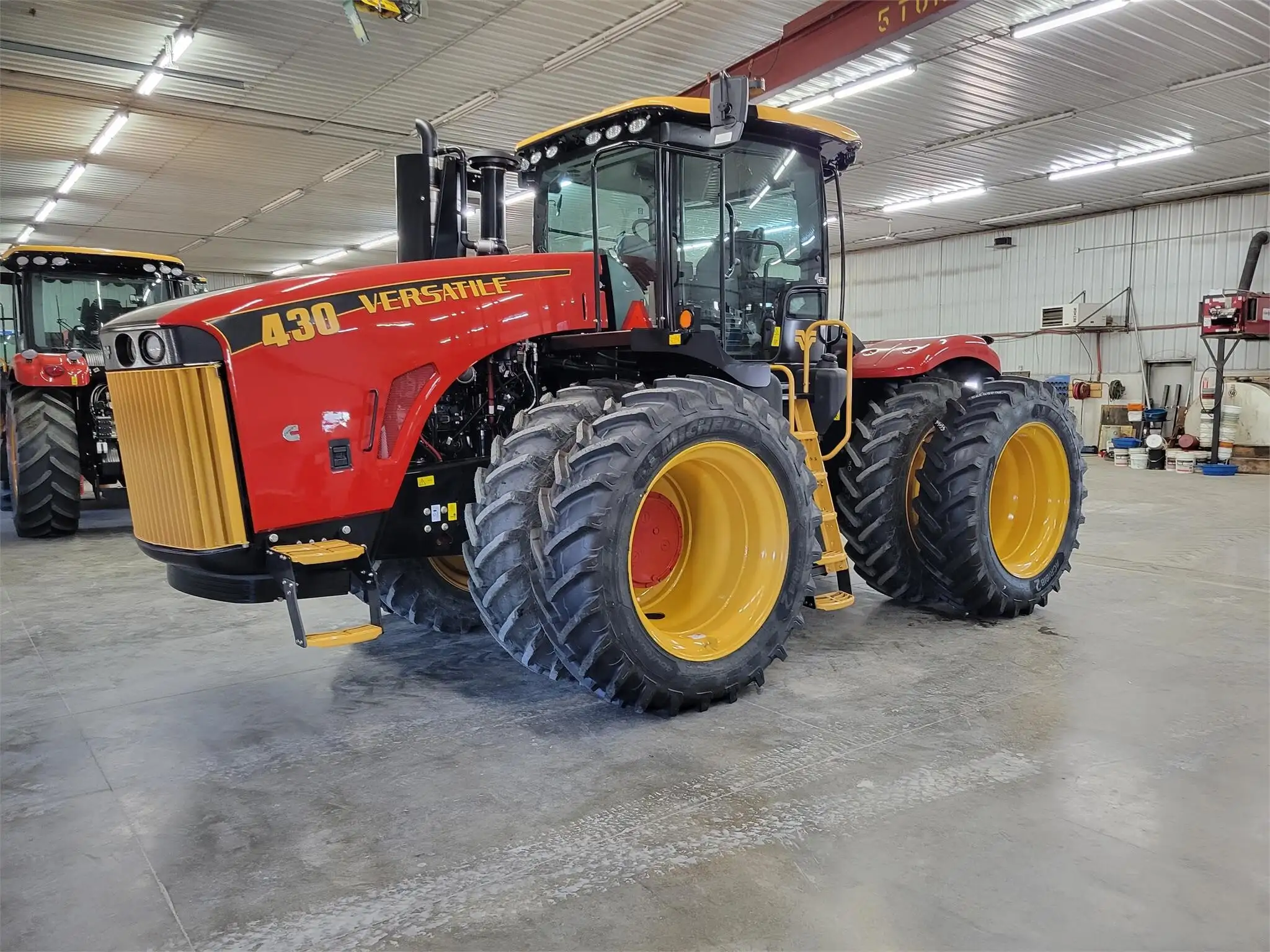

Versatile 430
Versatile 430 — Four-wheel Drive (4WD) tractor · 363 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
363 hp
Weight
14288 kg
Hover a source tag to verify
Overview
ManufacturerVersatile (a part of Rostselmash)Reference
Four-wheel Drive (4WD) tractorReference
Built in Winnipeg, Manitoba, CanadaReference
Four-wheel driveReference
Final drivesoutboard planetaryReference
Hydraulic disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Cummins 11.8L 6-cyl dieselReference
Fuel tank946.2 LReference
Exhaust fluid (DEF)94.6 LReference
Engine320.7 kWReference
Cummins QSG12Reference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement11.8 LReference
Bore/Stroke132 x 144 mmReference
EmissionsTier IVReference
Power320.7 kWReference
Maximum Power352.7 kWReference
Rated RPM1800Reference
Torque2034.0 NmReference
Torque RPM1400Reference
Starter typeelectricReference
Transmission
16-speed full power shiftReference
TransmissionCaterpillar TA19Reference
Typefull power shiftReference
Gears16 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)270.7 kWReference
Typeclosed center load sensingReference
Pressure200.0 barReference
Valves4 to 6Reference
Pump flow200.6 lpmReference
Pump flow401.2 lpmReference
Rear TypeIVN/IIIReference
Rear PTO Type1000 (1.375)Reference
Dimensions
Wheelbase342 cmReference
Weight14288 kgReference
Shipping14288 kgReference
Max Drawbar2721 kgReference
Max Drawbar4082 kgReference
Electrical
Charging systemalternatorReference
Charging amps200Reference
Charging volts12Reference
Batteries3Reference
Battery CCA1000Reference
Battery volts12Reference
Capacities
Max capacity19504 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
