Tractor · 2008Unverified

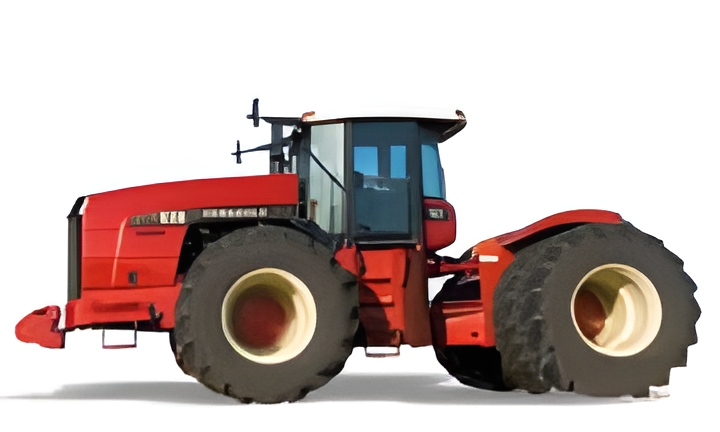

Versatile 485
Versatile 485 — Four-wheel Drive (4WD) tractor · 485 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
485 hp
Weight
19051 kg
Hover a source tag to verify
Overview
ManufacturerVersatile (a part of Rostselmash)Reference
Four-wheel Drive (4WD) tractorReference
Built in Winnipeg, Manitoba, CanadaReference
Four-wheel driveReference
Final drivesoutboard planetaryReference
Steeringhydrostatic powerReference
Dry caliper brakesReference
Trailer brakeshydraulic (optional)Reference
Cab standard with air-conditioning.Reference
Engine
Cummins 14.9L 6-cyl dieselReference
Engine361.7 kWReference
Cummins QSX15Reference
turbocharged and air-to-air aftercooled dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement14.9 LReference
Bore/Stroke137 x 169 mmReference
Power361.7 kWReference
Maximum Power391.5 kWReference
Torque2237.4 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Oil capacity47.8 LReference
Coolant capacity83.0 LReference
Transmission
12-speed partiallly synchronizedReference
16-speed full power shiftReference
TransmissionQuadshiftReference
Typepartiallly synchronizedReference
Gears12 forward and 4 reverseReference
ManufacturerCaterpillarReference
Typefull power shiftReference
Gears16 forward and 4 reverseReference
Clutchwet discReference
Capacities
Fuel1324.8 LReference
Max capacity21999 kgReference
PTO & Hydraulics
Hydraulic system113.6 LReference
Typeclosed center load sensing (CCLS)Reference
Capacity113.6 LReference
Pressure200.0 barReference
Valves4 to 6 (mechanical)Reference
Valves4 to 8 (electro-hydraulic)Reference
Pump flow208.2 lpmReference
Pump flow302.8 lpmReference
Dimensions
Wheelbase391 cmReference
Weight19051 kgReference
Front tire710/70R42Reference
Rear tire710/70R42Reference
Ag front710/70R42Reference
Ag rear710/70R42Reference
Length759 cmReference
Height (cab)344 cmReference
Ground clearance55 cmReference
19051 kgReference
Max Drawbar4082 kgReference
Max Drawbar5443 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps160Reference
Charging volts12Reference
Batteries3Reference
Battery CCA950Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
