Tractor · 2013Unverified

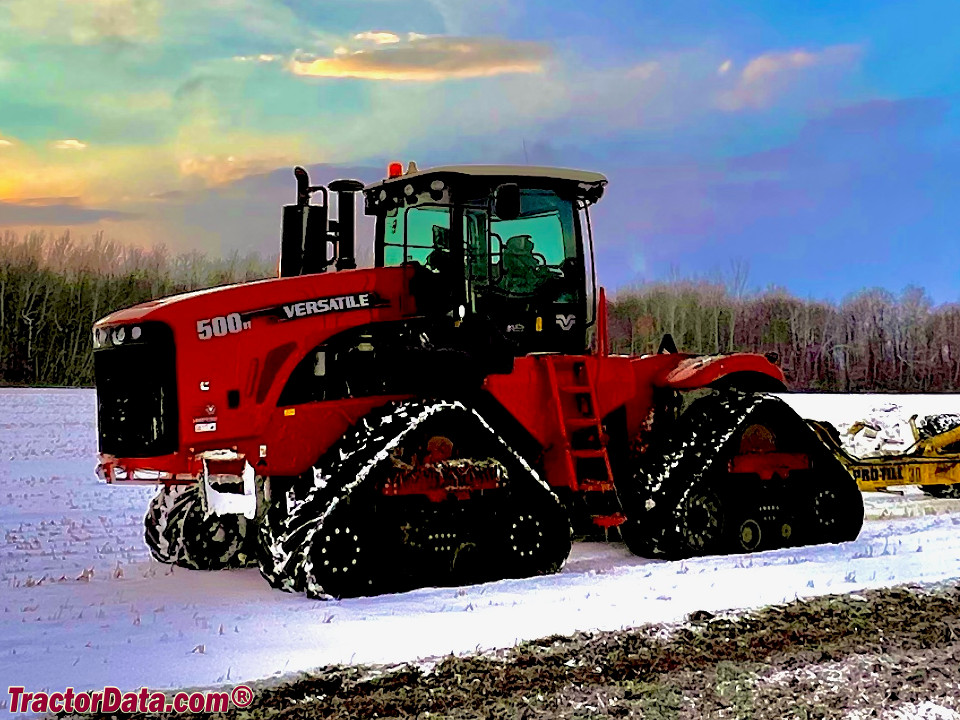

Versatile 500DT

Name: Versatile 500DT
Brand: Versatile

Versatile 500DT — DeltaTrack Series · 500 hp. Reference specifications; pending source verification.

The Versatile 500DT is a tractor model with a rated output of 500 hp, categorising it as one of the higher-powered machines in its class. This model was manufactured from 2013 to 2017. It features a 6-cylinder turbocharged diesel liquid-cooled engine, which powers a tracked undercarriage via a hydrostatic transmission. The listed weight is 26694 kg, with an operating capacity of approximately 1,500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

500 hp

Max power

500 hp

Weight

26694 kg

Catalogue coverage

Variants represented

Richest spec table

71 rows

Recorded power

500 hp

Recorded weight

26694 kg

Transmissions

16-speed full power shift

Production years

2013-2017

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerVersatile (a part of Rostselmash)Reference

Articulated Crawler tractorReference

Built in Winnipeg, Manitoba, CanadaReference

DrivecrawlerReference

Final drivesoutboard planetaryReference

Steeringhydrostatic powerReference

Dual dry caliper brakesReference

Cab standard with air-conditioning.Reference

Engine

Cummins 14.9L 6-cyl dieselReference

Fuel tank1797.9 LReference

Engine372.9 kWReference

Cummins QSX15Reference

turbocharged and air-to-air aftercooled dieselReference

6-cylinderReference

liquid-cooled inlineReference

Displacement14.9 LReference

Bore/Stroke137 x 169 mmReference

EmissionsInterim Tier IVReference

Emission controlexhaust gas recirculation and diesel particulate filter (DPF) (EGR)Reference

Power372.9 kWReference

Rated RPM2100Reference

Torque2508.6 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders6 cylinderReference

Rated engine speed2,100 RPMReference

Engine torque at rated speed839.1 kgReference

Bore and stroke5.39x6.65 inchesReference

Cooling systemliquid-cooledReference

Transmission

16-speed full power shiftReference

TransmissionCaterpillar TA22Reference

Typefull power shiftReference

Gears16 forward and 4 reverseReference

Transmission TypePowershiftReference

forward and reverse optionsfull power shift - 16 F and 4 RReference

Rear Axle Drive Typeoutboard planetaryReference

PTO & Hydraulics

Typeclosed center load sensing (CCLS)Reference

Pressure200.0 barReference

Valves4 to 6Reference

Pump flow200.6 lpmReference

Pump flow401.2 lpmReference

Dimensions

Wheelbase391 cmReference

Weight26694 kgReference

TracksReference

26694 kgReference

Max Drawbar4082 kgReference

Max Drawbar5443 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps200Reference

Charging volts12Reference

Batteries3Reference

Battery CCA950Reference

Battery volts12Reference

Total cold cranking amps950 ccaReference

Capacities

Max capacity27805 kgReference

Capacity6/30/1,902 ciReference

General

Make & ModelVersatile (a part of Rostselmash)Reference

Cruise controlAvailableReference

Country of manufacturerCanadaReference

Power

Max Power500 hpReference

Steering & brakes

Brakesdual dry caliperReference

Steering typehydrostatic powerReference

Hydraulics

Hydraulics Typeclosed center load sensing (CCLS)Reference

Maximum operating pressure2,900 psiReference

Remote Valves4 to 6 valvesReference

Dimensions & weight

Overall weight26,693.9 kgReference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
