Tractor · 2008Unverified

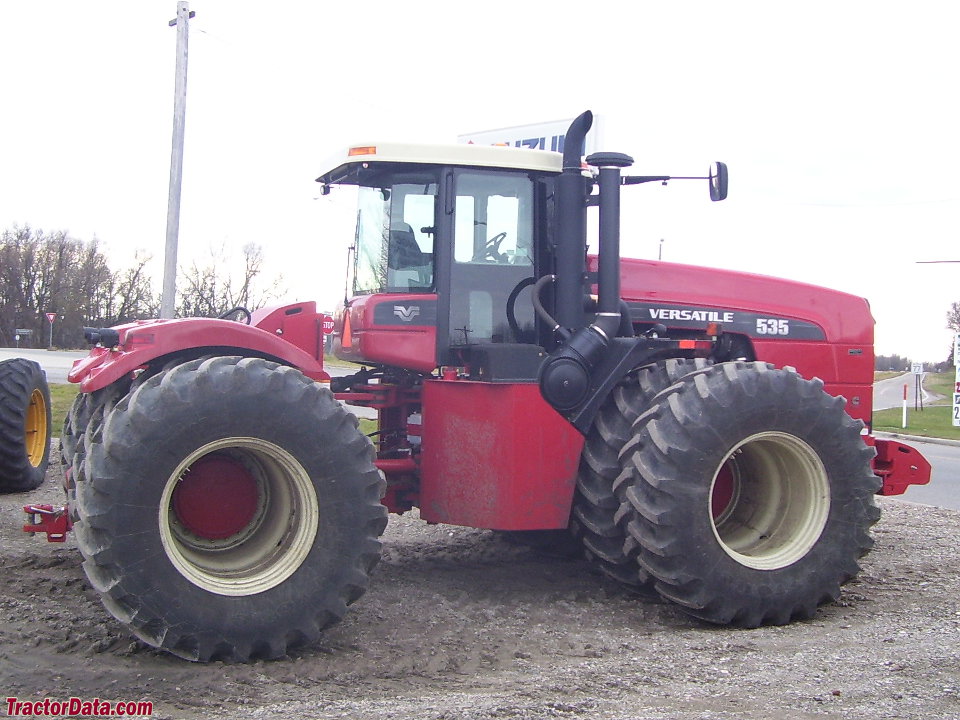

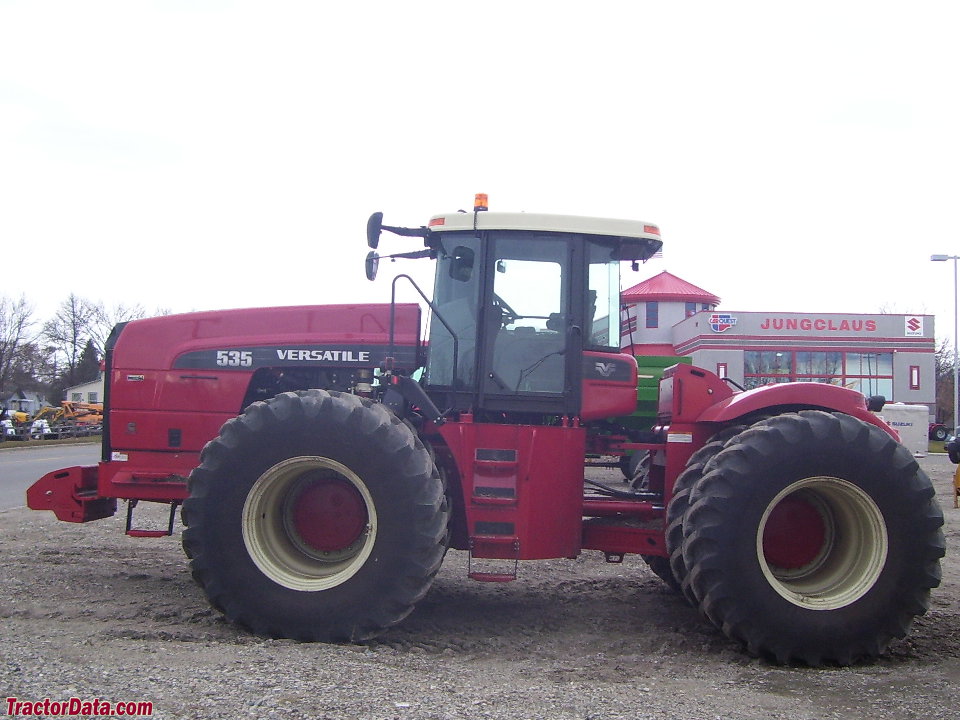

Versatile 535

Name: Versatile 535
Brand: Versatile

Versatile 535 — Four-wheel Drive (4WD) tractor · 535 hp. Reference specifications; pending source verification.

The Versatile 535 is a tractor model with a rated power output of 535 hp, categorising it among the higher-powered machines in its class. Manufactured from 2008 to 2011, this model features a 6-cylinder turbocharged diesel liquid-cooled engine, which powers a four-wheel drive system via a hydrostatic transmission. The tractor's listed weight is 19051 kg and it is suitable for tasks covering areas of approximately 1,500 acres or more.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

535 hp

Max power

580 hp

Weight

19051 kg

Catalogue coverage

Variants represented

Richest spec table

91 rows

Recorded power

535 hp

Recorded weight

19051 kg

Transmissions

12-speed partiallly synchronized

Production years

2008-2011

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerVersatile (a part of Rostselmash)Reference

Four-wheel Drive (4WD) tractorReference

Built in Winnipeg, Manitoba, CanadaReference

Four-wheel driveReference

Final drivesoutboard planetaryReference

Steeringhydrostatic powerReference

Dry caliper brakesReference

Trailer brakeshydraulic (optional)Reference

Cab standard with air-conditioning.Reference

Engine

Cummins 14.9L 6-cyl dieselReference

Engine398.9 kWReference

Cummins QSX15Reference

turbocharged and air-to-air aftercooled dieselReference

6-cylinderReference

liquid-cooled inlineReference

Displacement14.9 LReference

Bore/Stroke137 x 169 mmReference

Power398.9 kWReference

Maximum Power432.5 kWReference

Torque2440.8 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Oil capacity47.8 LReference

Coolant capacity83.0 LReference

Fuel TypedieselReference

No of Cylinders6 CylinderReference

Engine torque at rated speed816.5 kgReference

Bore and stroke5.39x6.65 inchesReference

Cooling systemliquid-cooledReference

Transmission

12-speed partiallly synchronizedReference

16-speed full power shiftReference

TransmissionQuadshiftReference

Typepartiallly synchronizedReference

Gears12 forward and 4 reverseReference

ManufacturerCaterpillarReference

Typefull power shiftReference

Gears16 forward and 4 reverseReference

Clutchwet discReference

Transmission TypePowershiftReference

Wheel Drive4WDReference

Track Drive typeoutboard planetaryReference

Capacities

Fuel1324.8 LReference

Max capacity24267 kgReference

Fuel tank1,324.9 LReference

Crankcase oil volume50.5 qtsReference

PTO & Hydraulics

Hydraulic system113.6 LReference

Typeclosed center load sensing (CCLS)Reference

Capacity113.6 LReference

Pressure200.0 barReference

Valves4 to 6 (mechanical)Reference

Valves4 to 8 (electro-hydraulic)Reference

Pump flow208.2 lpmReference

Pump flow302.8 lpmReference

Dimensions

Wheelbase391 cmReference

Weight19051 kgReference

Front tire710/70R42Reference

Rear tire710/70R42Reference

Ag front710/70R42Reference

Ag rear710/70R42Reference

Length759 cmReference

Height (cab)344 cmReference

Ground clearance55 cmReference

19051 kgReference

Max Drawbar4082 kgReference

Max Drawbar5443 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps160Reference

Charging volts12Reference

Batteries3Reference

Battery CCA950Reference

Battery volts12Reference

Total cold cranking amps950 CCAReference

General

Make & ModelVersatile (a part of Rostselmash)Reference

Cruise controlAvailableReference

Country of manufacturerCanadaReference

Power

Max Power580 hpReference

Rated Power535 hpReference

Steering & brakes

Brakesdry caliperReference

Steering typehydrostatic powerReference

Hydraulics

Hydraulics Typeclosed center load sensing (CCLS)Reference

Maximum operating pressure2,900 psiReference

Remote Valves4 to 8 ValvesReference

Dimensions & weight

Height Over Cab344.9 cmReference

Overall Length759.5 cmReference

Overall weight19,050.9 kgReference

Wheels & tyres

Rear Wheel Type710/70R42Reference

Front Wheel Type710/70R42Reference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
