Tractor · 2018Unverified

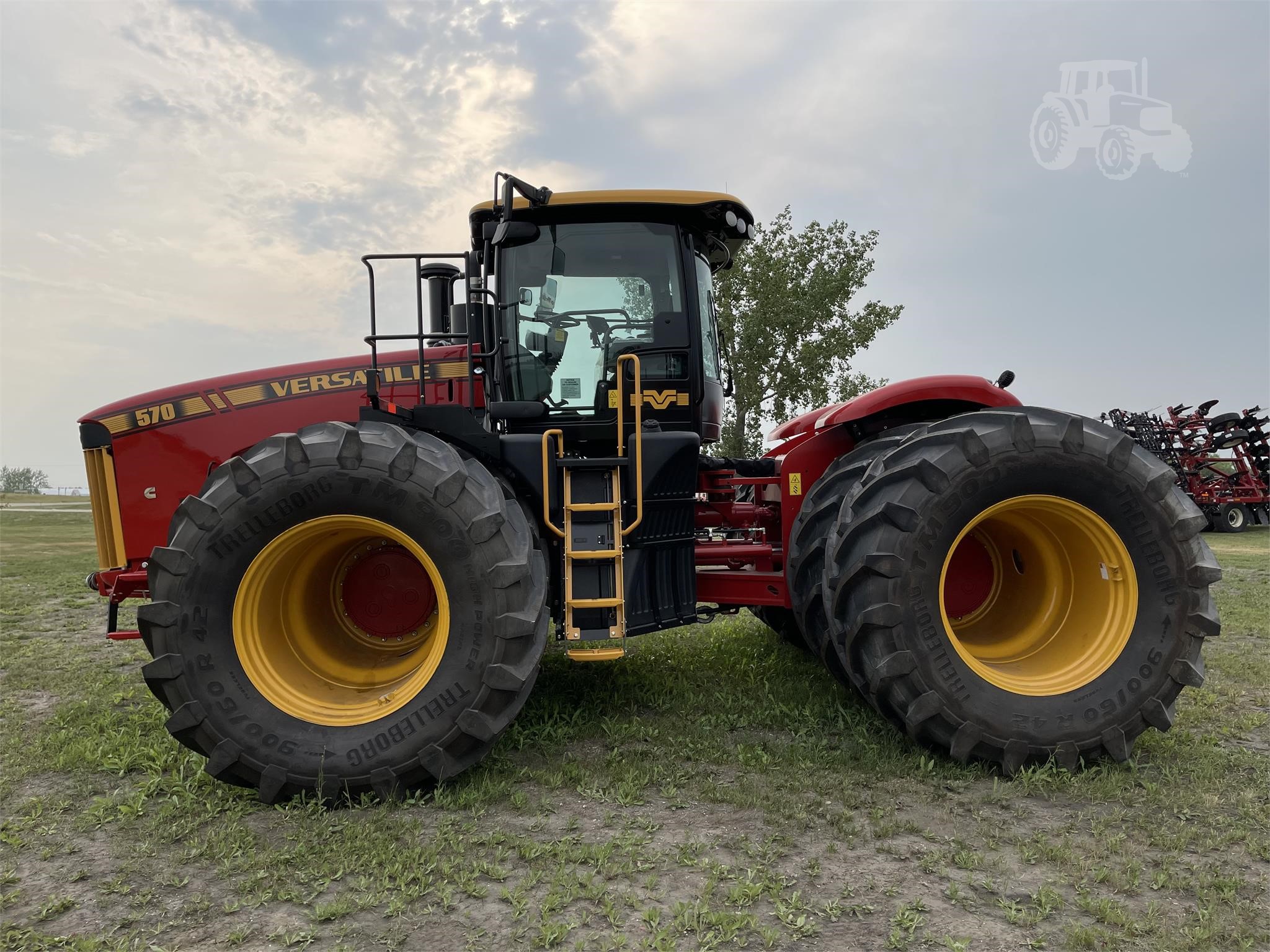

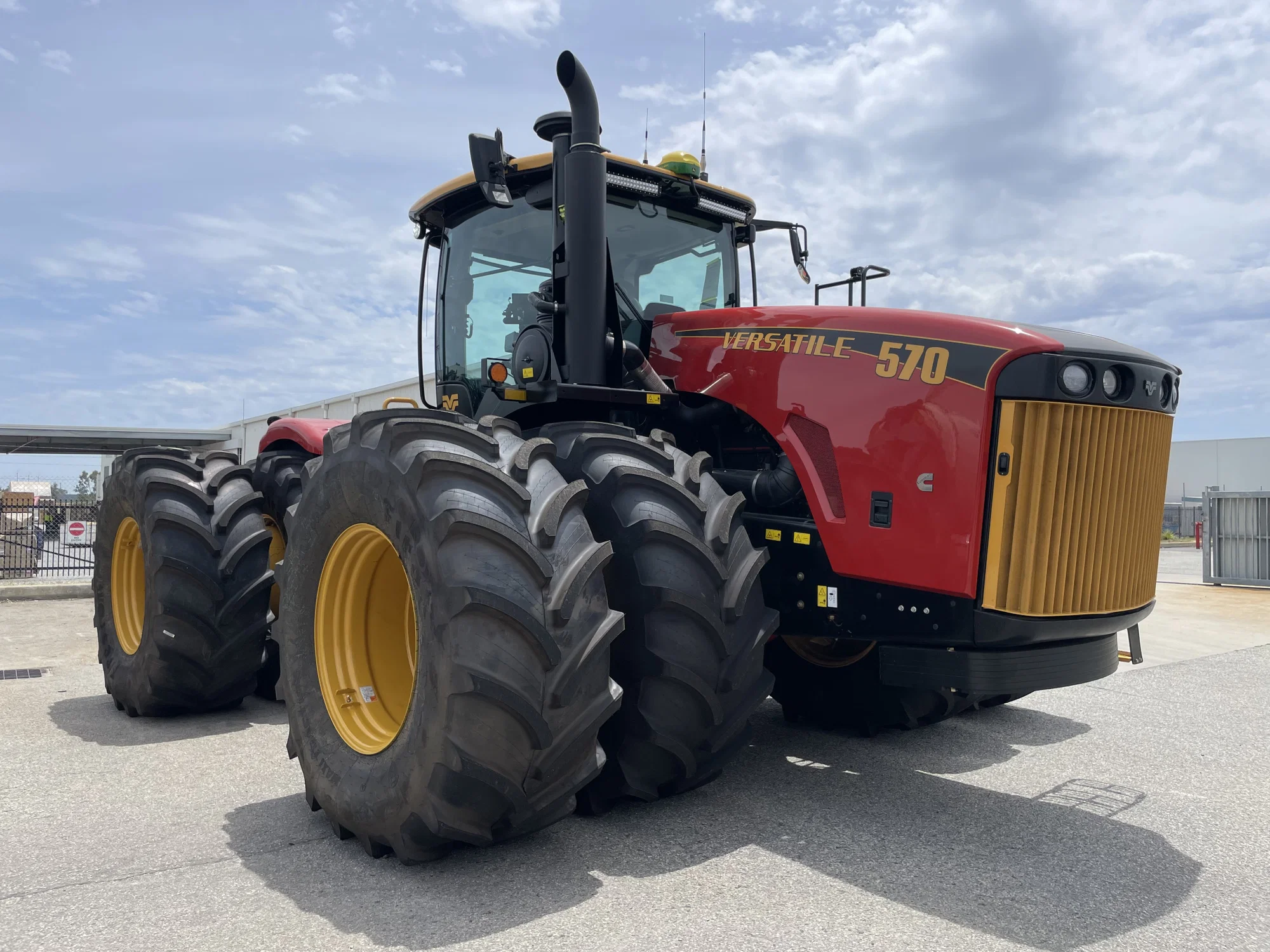

Versatile 570
Versatile 570 — Four-wheel Drive (4WD) tractor · 320 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
320 hp
Weight
19051 kg
Hover a source tag to verify
Overview
ManufacturerVersatile (a part of Rostselmash)Reference
Four-wheel Drive (4WD) tractorReference
Built in Winnipeg, Manitoba, CanadaReference
Four-wheel driveReference
Final drivesoutboard planetaryReference
Hydraulic disc brakesReference
Cab standard with air-conditioning.Reference
Variants
570wheeled tractorReference
570DTcrawlerReference
Engine
Cummins 14.9L 6-cyl dieselReference
Fuel tank1298.3 LReference
Exhaust fluid (DEF)132.5 LReference
Engine425.0 kWReference
Cummins QSX15Reference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement14.9 LReference
Bore/Stroke137 x 169 mmReference
EmissionsTier IVReference
Power425.0 kWReference
Maximum Power466.8 kWReference
Rated RPM1800Reference
Torque2508.6 NmReference
Torque RPM1400Reference
Starter typeelectricReference
Transmission
16-speed full power shiftReference
TransmissionCaterpillar TA22Reference
Typefull power shiftReference
Gears16 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)238.6 kWReference
Typeclosed center load sensingReference
Pressure200.0 barReference
Valves4 to 6Reference
Pump flow200.6 lpmReference
Pump flow401.2 lpmReference
Rear TypeIVReference
Rear PTO Type1000 (1.375)Reference
Dimensions
Wheelbase391 cmReference
Weight19051 kgReference
Shipping19051 kgReference
Max Drawbar4082 kgReference
Max Drawbar5443 kgReference
Electrical
Charging systemalternatorReference
Charging amps200Reference
Charging volts12Reference
Batteries3Reference
Battery CCA1000Reference
Battery volts12Reference
Capacities
Max capacity25855 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
