Tractor · 2018Unverified

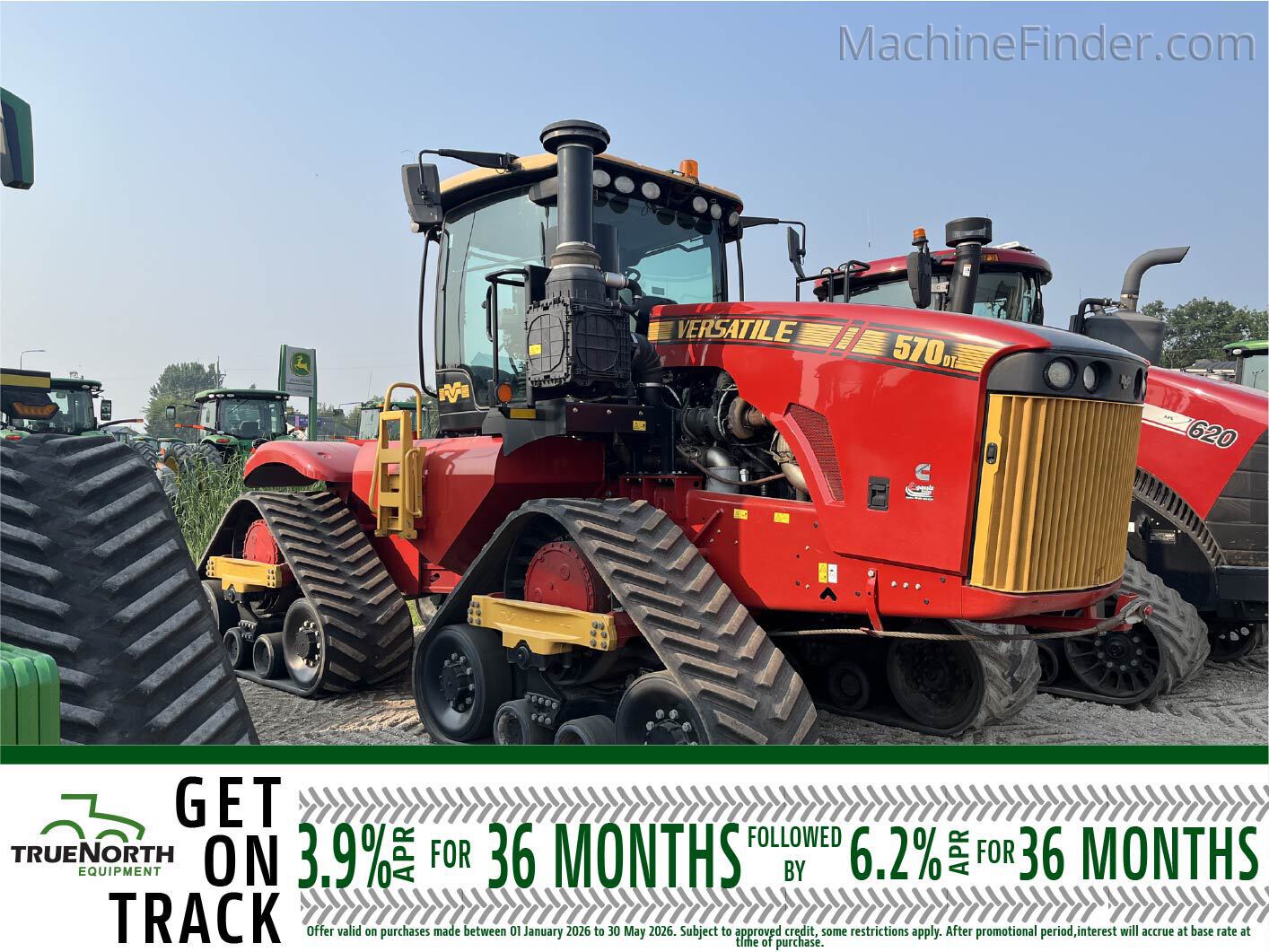

Versatile 570DT

Name: Versatile 570DT
Brand: Versatile

Versatile 570DT — DeltaTrack Series · 570 hp. Reference specifications; pending source verification.

The Versatile 570DT is a high-powered tractor, rated at approximately 570 horsepower, which positions it at the upper end of its class. It was manufactured in 2018. The tractor features a 6-cylinder turbocharged diesel liquid-cooled engine and is equipped with a tracked undercarriage paired with a powershift transmission. Its operating weight is specified as 26,694 kg and it is suitable for operations in areas exceeding 1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

570 hp

Weight

26694 kg

Catalogue coverage

Variants represented

Richest spec table

50 rows

Recorded power

570 hp

Recorded weight

26694 kg

Transmissions

16-speed full power shift

Production years

2018-2018

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerVersatile (a part of Rostselmash)Reference

Articulated Crawler tractorReference

Built in Winnipeg, Manitoba, CanadaReference

DrivecrawlerReference

Hydraulic disc brakesReference

Cab standard with air-conditioning.Reference

Variants

570wheeled tractorReference

570DTcrawlerReference

Engine

Cummins 14.9L 6-cyl dieselReference

Fuel tank1748.7 LReference

Exhaust fluid (DEF)90.8 LReference

Engine425.0 kWReference

Cummins QSX15Reference

turbocharged aftercooled dieselReference

6-cylinderReference

liquid-cooled inlineReference

Displacement14.9 LReference

Bore/Stroke137 x 169 mmReference

EmissionsTier IVReference

Power425.0 kWReference

Maximum Power466.8 kWReference

Rated RPM1800Reference

Torque2508.6 NmReference

Torque RPM1400Reference

Starter typeelectricReference

Transmission

16-speed full power shiftReference

TransmissionCaterpillar TA22Reference

Typefull power shiftReference

Gears16 forward and 4 reverseReference

PTO & Hydraulics

Typeclosed center load sensingReference

Pressure200.0 barReference

Valves4 to 6Reference

Pump flow200.6 lpmReference

Pump flow401.2 lpmReference

Rear TypeIVReference

Rear PTO Type1000 (1.375)Reference

Dimensions

Wheelbase391 cmReference

Weight26694 kgReference

TracksReference

Shipping26694 kgReference

Max Drawbar4082 kgReference

Max Drawbar5443 kgReference

Max Drawbar6804 kgReference

Electrical

Charging systemalternatorReference

Charging amps200Reference

Charging volts12Reference

Batteries3Reference

Battery CCA1000Reference

Battery volts12Reference

Capacities

Max capacity30345 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
