Tractor · 2010Unverified

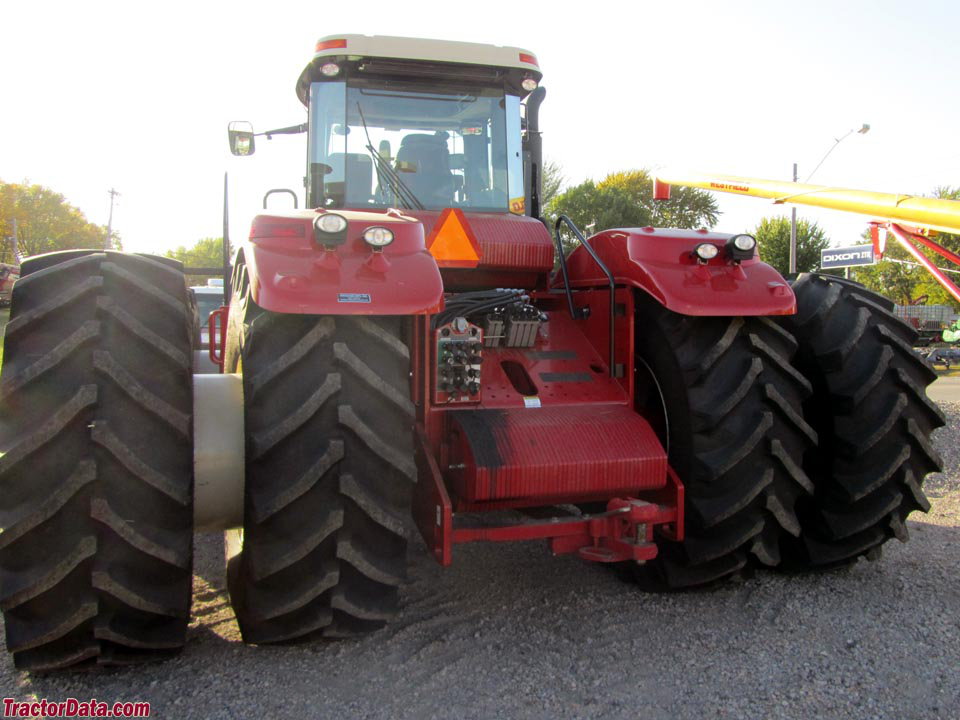

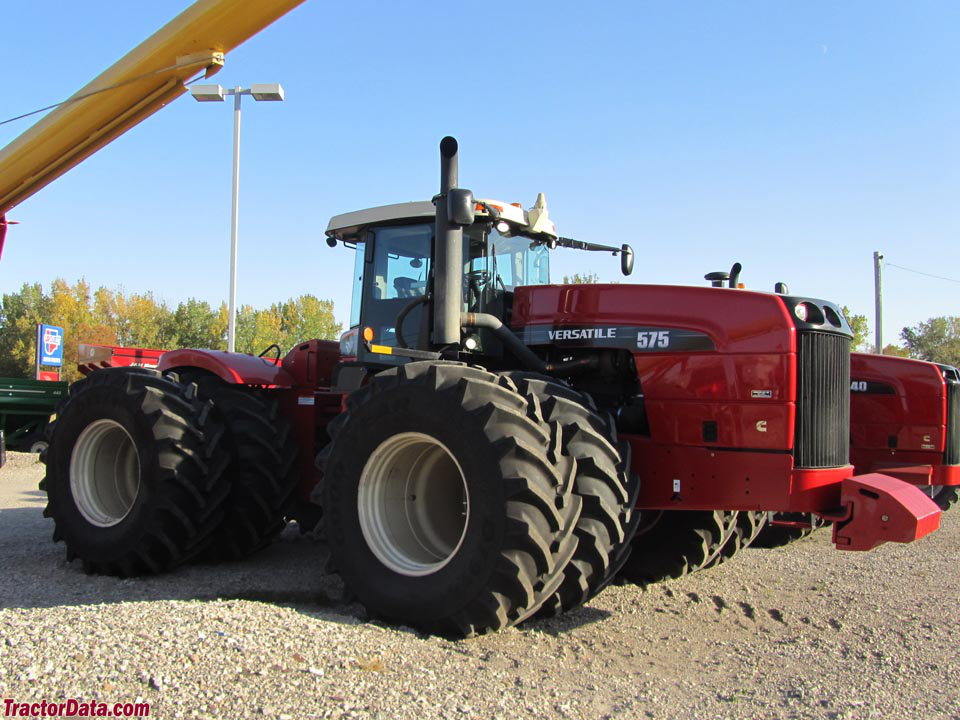

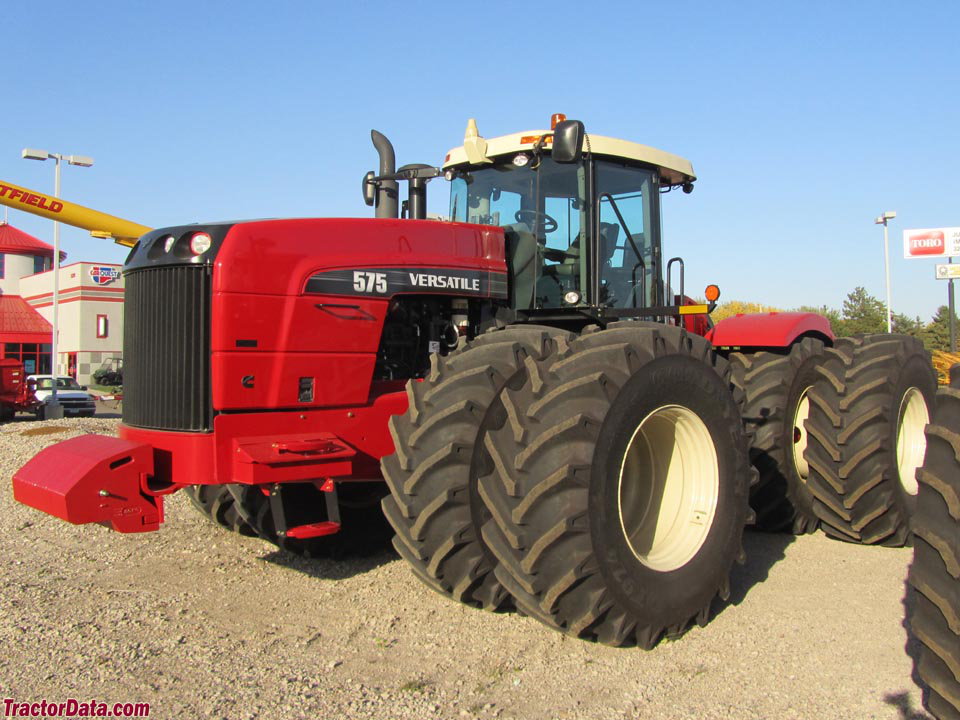

Versatile 575
Versatile 575 — Four-wheel Drive (4WD) tractor · 575 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
575 hp
Weight
20729 kg
Hover a source tag to verify
Overview
ManufacturerVersatile (a part of Rostselmash)Reference
Four-wheel Drive (4WD) tractorReference
Built in Winnipeg, Manitoba, CanadaReference
Four-wheel driveReference
Final drivesoutboard planetaryReference
Differential lockhydraulicReference
Steeringhydrostatic powerReference
Dry caliper brakesReference
Trailer brakeshydraulicReference
Deluxe cab standard with air-contidioning, automatic temperature control, and leather seating.Reference
Engine
Cummins 14.9L 6-cyl dieselReference
Engine428.8 kWReference
Cummins QSX15Reference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement14.9 LReference
Bore/Stroke137 x 169 mmReference
Power428.8 kWReference
Maximum Power454.9 kWReference
Torque2542.5 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Oil capacity47.8 LReference
Coolant capacity83.0 LReference
Transmission
16-speed full power shiftReference
TransmissionCaterpillar TA22Reference
Typefull power shiftReference
Gears16 forward and 4 reverseReference
Clutchwet discReference
Capacities
Fuel1324.8 LReference
Max capacity26082 kgReference
PTO & Hydraulics
Hydraulic system113.6 LReference
Typeclosed center load sensing (CCLS)Reference
Capacity113.6 LReference
Pressure200.0 barReference
Valves6Reference
Pump flow302.8 lpmReference
DrawbarCat. VReference
Rear PTOoptionalReference
Rear PTO Type1000Reference
Dimensions
Wheelbase391 cmReference
Weight20729 kgReference
Front tire710/70R42Reference
Rear tire710/70R42Reference
Ag front710/70R42Reference
Ag rear710/70R42Reference
Length759 cmReference
Height (cab)344 cmReference
Height (exhaust)393 cmReference
Ground clearance55 cmReference
20729 kgReference
Max Drawbar4082 kgReference
Max Drawbar5443 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps180Reference
Charging volts12Reference
Batteries3Reference
Battery CCA950Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
