Tractor · 1986Unverified

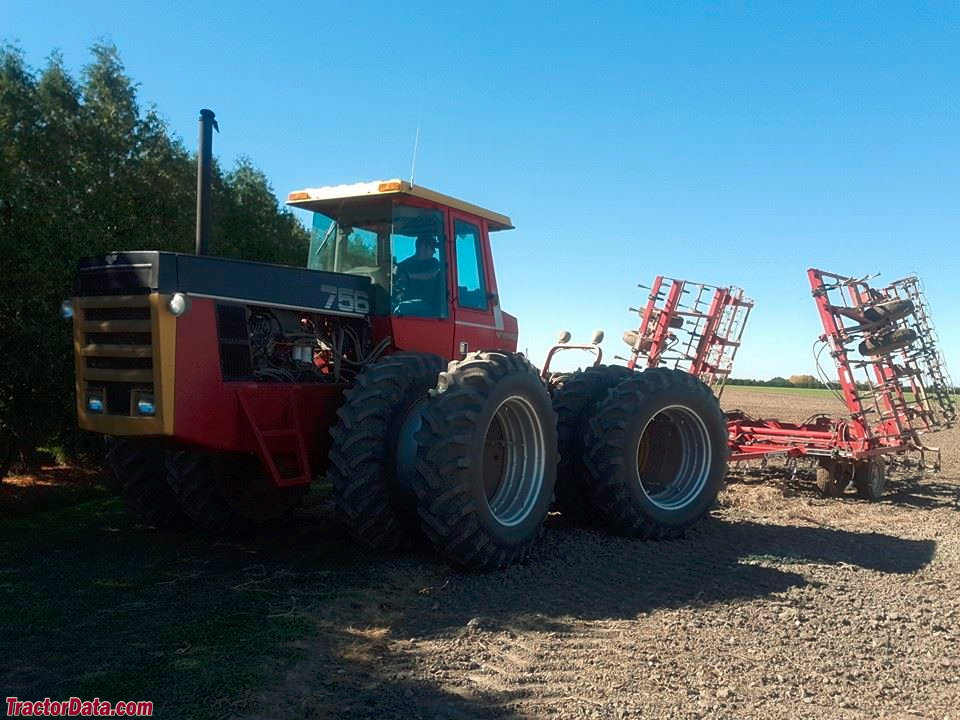

Versatile 756
Versatile 756 — 6 Series · 168 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
168 hp
Weight
9525 kg
Hover a source tag to verify
Overview
ManufacturerVersatileReference
Four-wheel Drive (4WD) tractorReference
Built in Winnipeg, Manitoba, CanadaReference
Original price was $52,000 in 1986Reference
Four-wheel driveReference
Articulated power steeringReference
Cab standardReference
Engine
Cummins 8.3L 6-cyl dieselReference
Fuel tank931.1 LReference
Engine141.7 kWReference
Drawbar (claimed)111.9 kWReference
CumminsReference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement8.3 LReference
Bore/Stroke114 x 135 mmReference
Power141.7 kWReference
Starter typeelectricReference
Transmission
15-speedReference
12-speedReference
Gears15 forward and 5 reverseReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)125.3 kWReference
Typeclosed centerReference
Valves2Reference
Pump flow94.6 lpmReference
Rear TypeIIIReference
Rear lift4710 kgReference
Dimensions
Wheelbase330 cmReference
Weight9525 kgReference
Front tire18.4-38Reference
Rear tire18.4-38Reference
Ag front18.4-38Reference
Ag rear18.4-38Reference
Electrical
GroundnegativeReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
