Tractor · 1977Unverified

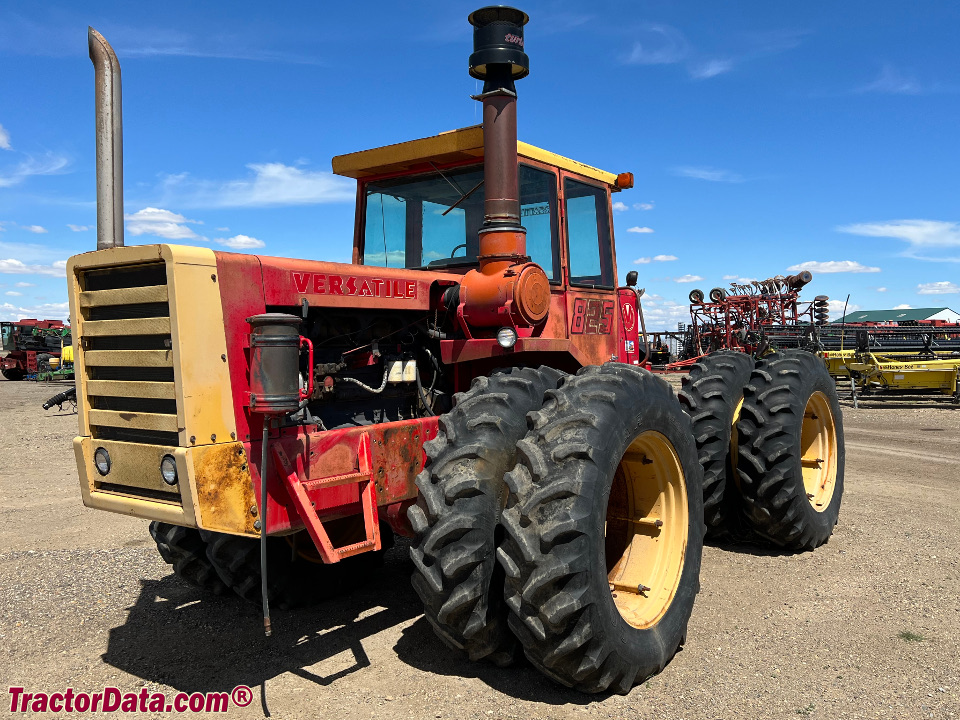

Versatile 825

Name: Versatile 825
Brand: Versatile

Versatile 825 — 2 Series · 250 hp. Reference specifications; pending source verification.

The Versatile 825 is a tractor with a rated output of 250 hp, categorising it as a high-powered machine in its class. It was produced in 1977. Power is provided by a 6-cylinder turbocharged diesel liquid-cooled engine, and it features a four-wheel drive system with a 12-speed gearbox. The listed weight of the Versatile 825 ranges from 18100 to 26000 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

250 hp

Weight

18100 to 26000 pounds

Catalogue coverage

Variants represented

Richest spec table

72 rows

Recorded power

250 hp

Transmissions

12-speed gear

Production years

1977-1977

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerVersatileReference

Four-wheel Drive (4WD) tractorReference

Built in Winnipeg, Manitoba, CanadaReference

Four-wheel driveReference

Final drivesplanetaryReference

Articulated power steeringReference

Hydraulic disc brakesReference

Cab standard with available heater and air-conditioning.Reference

Engine

Cummins 14.0L 6-cyl dieselReference

Engine186.4 kWReference

Cummins NT-855-C250Reference

turbocharged dieselReference

6-cylinderReference

liquid-cooled inlineReference

Displacement14.0 LReference

Bore/Stroke140 x 152 mmReference

Power186.4 kWReference

Air cleanerdual dry elementReference

Pre-heatingether injectionReference

Compression15.8:1Reference

Rated RPM2100Reference

Idle RPM1000-2300Reference

Torque1017.0 NmReference

Torque RPM1500Reference

Starter volts12Reference

Coolant capacity46.4 LReference

Oil capacity38.8 LReference

Transmission

12-speed gearReference

TypegearReference

Gears12 forward and 4 reverseReference

Clutch355.6mm ceramic discReference

Oil capacity20.3 LReference

Three gears, plus reverse, in four ranges.Reference

Capacities

Fuel700.2 LReference

Max capacity12700 kgReference

PTO & Hydraulics

Hydraulic system70.4 LReference

Typeopen centerReference

Capacity70.4 LReference

Pressure137.9 barReference

Valves3Reference

Pump flow88.9 lpmReference

Rear TypeIIIReference

Controlposition and depth controlReference

Rear lift (at ends)8287 kgReference

Rear lift (at 24"/610mm)5611 kgReference

Dimensions

Wheelbase330 cmReference

Weight18100 to 26000 poundsReference

Front tire24.5x32Reference

Rear tire24.5x32Reference

Ag front24.5x32Reference

Ag rear24.5x32Reference

Ag front18.4x38Reference

Ag front20.8x38Reference

Ag front30.5x32Reference

Ag rear18.4x38Reference

Ag rear20.8x38Reference

Ag rear30.5x32Reference

Length642 cmReference

Height (cab)317 cmReference

Height (exhaust)330 cmReference

Shipping8210 kgReference

Operating11793 kgReference

825 Serial Numbers

Location:Serial number plate on the cab door post.Reference

1977825 77 150001Reference

Final825 77 150265Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps75Reference

Batteries2Reference

Battery volts12Reference

Speeds

With 24.5x32 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
