Tractor · 1985Unverified

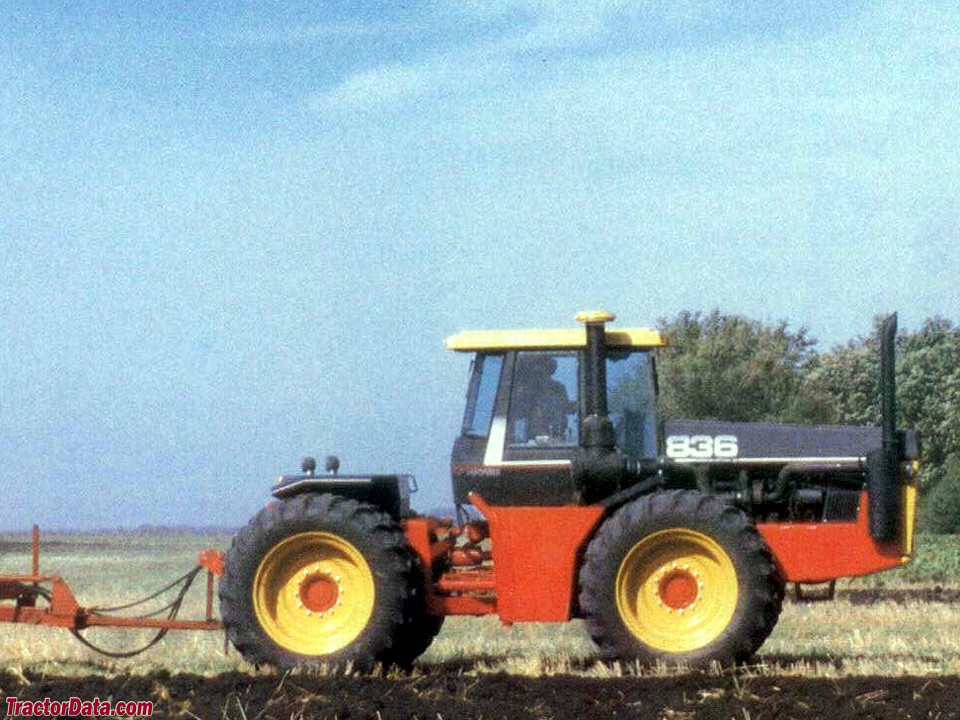

Versatile 836
Versatile 836 — 6 Series · 193 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
193 hp
Max power
124.2 kW
Weight
11013 kg
Hover a source tag to verify
Overview
ManufacturerVersatileReference
Four-wheel Drive (4WD) tractorReference
Built in Winnipeg, Manitoba, CanadaReference
Original price was $62,000 in 1986Reference
A 1000 RPM PTO was standard equipment on the 836 with the power shift or 3x5 (15-speed) transmission. The PTO was not available with manual shift.Reference
Four-wheel driveReference
Final drivesoutboard planetaryReference
Final drivesinboard planetary (row-crop axle)Reference
Steeringhydraulic powerReference
Hydraulic disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Cummins 10.0L 6-cyl dieselReference
Engine156.6 kWReference
Drawbar (tested)124.2 kWReference
Cummins L10Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement10.0 LReference
Bore/Stroke125 x 136 mmReference
Power156.6 kWReference
Air cleanerdual dry elementReference
Compression16:1Reference
Rated RPM2100Reference
Torque926.1 NmReference
Torque RPM1300Reference
Starter volts12Reference
Coolant capacity52.1 LReference
Power at rated engine speed143.6 kWReference
Max power124.2 kWReference
Power at rated engine speed135.0 kWReference
Max power118.1 kWReference
Transmission
12-speed constant meshReference
15-speed partially synchronizedReference
12-speed full power shiftReference
TransmissionVersatileReference
Typeconstant meshReference
Gears12 forward and 4 reverseReference
Oil capacity20.3 LReference
TransmissionVersatile Three-by-FiveReference
Typepartially synchronizedReference
Gears15 forward and 5 reverseReference
Clutch228mm hydraulic wet discReference
Oil capacity23.7 LReference
Typefull power shiftReference
Gears12 forward and 3 reverseReference
Oil capacity17.0 LReference
PTO & Hydraulics
PTO (tested)143.6 kWReference
Hydraulic system57.9 LReference
Typeclosed center load sensingReference
Capacity57.9 LReference
Valves4 to 5Reference
Pump flow95.4 lpmReference
Steering flow98.0 lpmReference
Steering press.158.6 barReference
Rear TypeIVN/IIIReference
Rear lift (at 24"/610mm)9843 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Capacities
Fuel931.1 LReference
Dimensions
Wheelbase330 cmReference
Weight11013 kgReference
Front tire18.4-38Reference
Rear tire18.4-38Reference
Ag front18.4-38Reference
Ag rear18.4-38Reference
Length660 cmReference
Height (exhaust)332 cmReference
Weight11013 kgReference
Front axle101 mmReference
Front axleFlangeReference
Bar rear axle101 mmReference
Flange rear axleReference
836 Serial Numbers
Location:Serial number plate on the cab door post.Reference
1985836 85 215025Reference
1986836 86 270376Reference
Final836 86 270425Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Batteries4Reference
Battery CCA625Reference
Battery volts12Reference
Test results
NTTL 1566: diesel 15-speed 4WDReference
NTTL 1567: diesel power shift 4WDReference
Diesel 15-speed 4WDMay 16 - 28, 1985Link: Nebraska Tractor Test 1566 fileReference
PTO performanceReference
Fuel use41.3 l/hourReference
Drawbar performanceReference
Fuel use40.5 l/hourReference
Gear 2-4 used for power test.Reference
Max pull10942 kgReference
Gear 1-3 used for pull test.Reference
Diesel power shift 4WDMay 7 - 31, 1985Link: Nebraska Tractor Test 1567 fileReference
Gear 7 used for power test.Reference
Max pull11214 kgReference
Gear 2 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
