Tractor · 1988Unverified
Versatile 846
Versatile 846 — 6 Series · 202 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
202 hp
Weight
18000 to 23000 pounds
Hover a source tag to verify
Overview
ManufacturerVersatileReference
Four-wheel Drive (4WD) tractorReference
Built in Winnipeg, Manitoba, CanadaReference

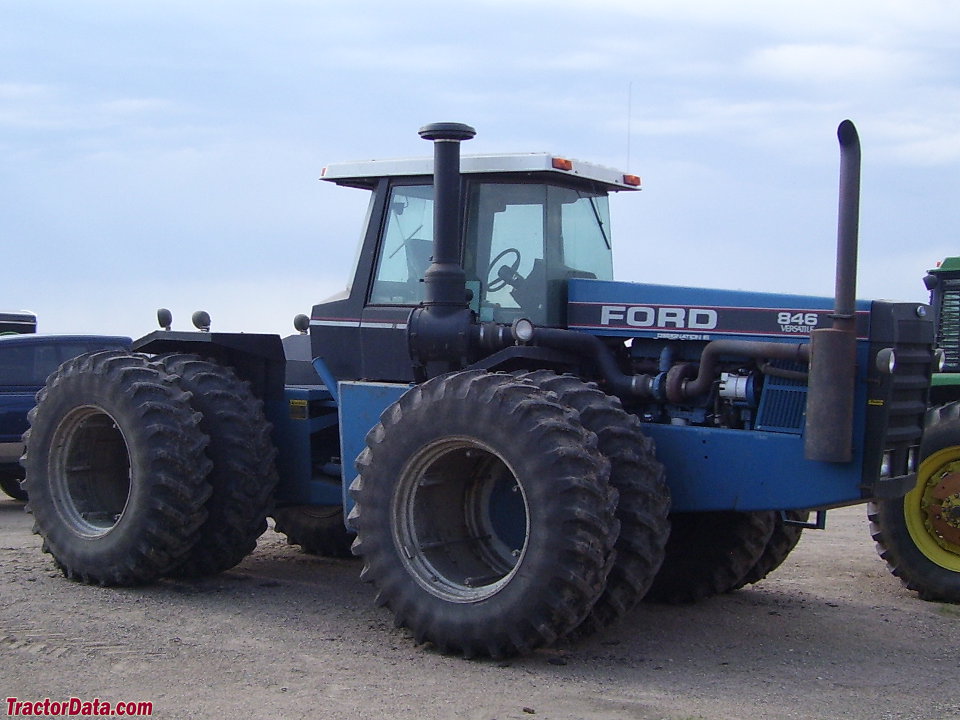

The 846 appeared in Versatile black, red, and gold until 1989; afterwards it was produced in Ford blue.Reference
Four-wheel driveReference
Final drivesoutboard planetaryReference
Final drivesinboard planetary (row-crop)Reference
Articulated power steeringReference
Hydraulic disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Cummins 10.0L 6-cyl dieselReference
Engine171.5 kWReference
Cummins L10-A230Reference
aftercooled turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement10.0 LReference
Bore/Stroke125 x 136 mmReference
Power171.5 kWReference
Air cleanerdual dry elementReference
Pre-heatingether injectionReference
Pre-heatingblock heaterReference
Rated RPM2100Reference
Torque1014.3 NmReference
Torque RPM1300Reference
Starter volts12Reference
Oil capacity26.5 LReference
Coolant capacity52.1 LReference
Transmission
12-speed constant meshReference
15-speed partially synchronizedReference
Typeconstant meshReference
Gears12 forward and 4 reverseReference
Clutch356mm dry discReference
Oil capacity20.3 LReference
TransmissionVersatile Three-by-FiveReference
Typepartially synchronizedReference
Gears15 forward and 5 reverseReference
Clutch228mm hydraulic wet discReference
Five synchronized gears in three ranges, plus reverse range.Reference
PTO & Hydraulics
PTO (claimed)150.6 kWReference
Hydraulic system57.9 LReference
Typeclosed center load sensingReference
Capacity57.9 LReference
Pressure155.1 barReference
Valves4 to 5Reference
Pump flow95.4 lpmReference
Steering flow98.0 lpmReference
Steering press.158.6 barReference
Rear TypeIIIReference
Rear TypeIII/IVNReference
Controlposition controlReference
Rear lift (at 24"/610mm)4677 kgReference
Rear lift (at 24"/610mm)5913 kgReference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Capacities
Fuel931.1 LReference
Max capacity12700 kgReference
Dimensions
Wheelbase330 cmReference
Weight18000 to 23000 poundsReference
Ag front18.4x38Reference
Ag front18.4x42Reference
Ag front24.5x32Reference
Ag front30.5x32Reference
Ag rear18.4x38Reference
Ag rear18.4x42Reference
Ag rear24.5x32Reference
Ag rear30.5x32Reference
Length660 cmReference
Ground clearance40 cmReference
Front axleBarReference
Bar rear axle (row-crop)Reference
Front tread152 to 309 cmReference
Rear tread152 to 309 cmReference
Shipping8164 kgReference
Operating10432 kgReference
Steering wheel260 cmReference
846 Serial Numbers
Location:Serial number plate on the cab door post.Reference
1988846 88 330335Reference
1989846 89 D430159Reference
1990846 90 D450298Reference
1991846 91 D475001Reference
1992846 92 D485051Reference
1993846 93 D930035Reference
Final846 93 D931211Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Batteries4Reference
Battery CCA625Reference
Battery volts12Reference
Versatile 846 Height
Cab317 cmReference
Exhaust332 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
