Tractor · 1973Unverified

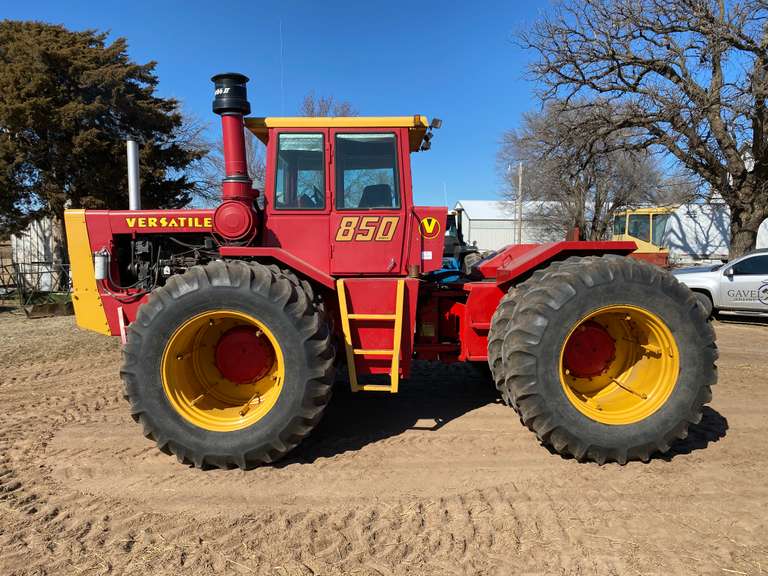

Versatile 850
Versatile 850 — Model year 1973-19751976-1977 · 280 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
280 hp
Weight
8391 kg
Hover a source tag to verify
Overview
ManufacturerVersatileReference
Four-wheel Drive (4WD) tractorReference
Built in Winnipeg, Manitoba, CanadaReference
Four-wheel driveReference
Final drivesplanetaryReference
Articulated power steeringReference
Hydraulic disc brakesReference
Cab standard with available heater and air-conditioning.Reference
Engine
Cummins 14.0L 6-cyl dieselReference
Engine208.8 kWReference
Cummins NT-855-C280Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement14.0 LReference
Bore/Stroke140 x 152 mmReference
Power208.8 kWReference
Air cleanerdual dry elementReference
Pre-heatingether injectionReference
Rated RPM2100Reference
Idle RPM900-2300Reference
Starter volts12Reference
Coolant capacity46.4 LReference
Oil capacity38.8 LReference
Oil change200 hReference
Transmission
12-speed gearReference
TypegearReference
Gears12 forward and 4 reverseReference
Clutch355.6mm ceramic discReference
Three gears, plus reverse, in four ranges.Reference
Capacities
Fuel548.8 LReference
Max capacity12700 kgReference
PTO & Hydraulics
Hydraulic system89.9 LReference
Typeopen centerReference
Capacity89.9 LReference
Pressure137.9 barReference
Valves3Reference
Pump flow75.7 lpmReference
Steering flow90.8 lpmReference
Steering press.127.6 barReference
Rear TypeIIIReference
Dimensions
Wheelbase330 cmReference
Weight8391 kgReference
Front tire24.5x32Reference
Rear tire24.5x32Reference
Ag front24.5x32Reference
Ag rear24.5x32Reference
Ag front18.4x38Reference
Ag front20.8x38Reference
Ag front30.5x32Reference
Ag rear18.4x38Reference
Ag rear20.8x38Reference
Ag rear30.5x32Reference
Length642 cmReference
Height (exhaust)365 cmReference
Clearance (drawbar)45 cmReference
8391 kgReference
Ballasted12474 kgReference
850 Serial Numbers
Location:Serial number plate on the front console.Reference
1973085101Reference
1974850 050001Reference
1975850 3050501Reference
1976850 76 051101Reference
1977850 77 051901Reference
Final850 77 052350Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps58Reference
Batteries2Reference
Battery volts12Reference
Battery AH204Reference
Speeds
With 24.5x32 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
