Tractor · 1973Unverified

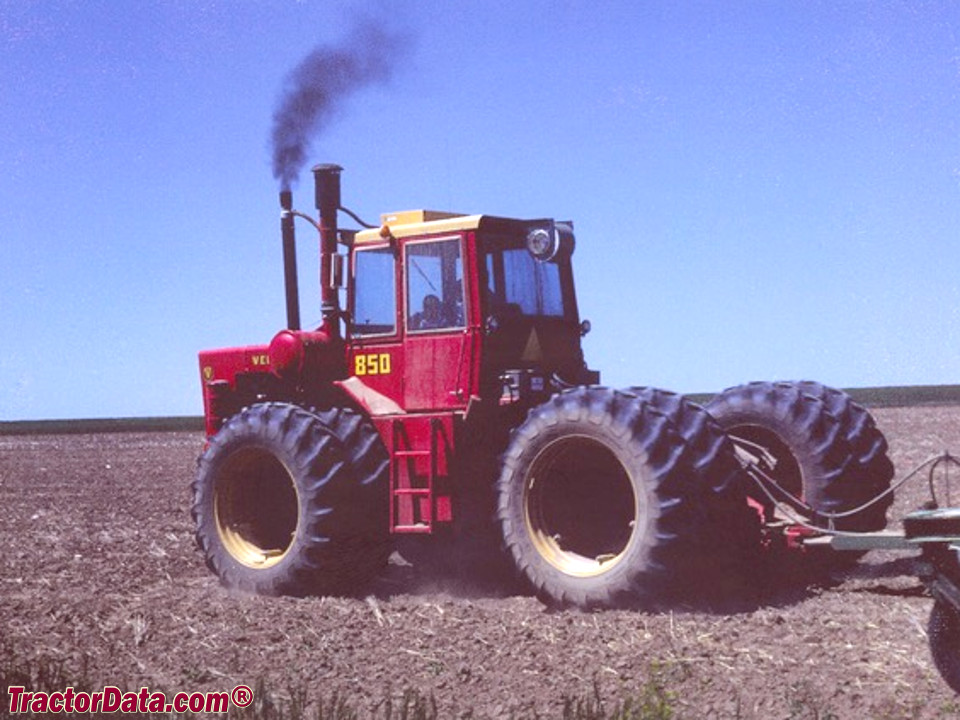

Versatile 850 Series II
Versatile 850 Series II — Model year 1973-19751976-1977 · 280 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
280 hp
Weight
18380 to 27500 pounds
Hover a source tag to verify
Overview
ManufacturerVersatileReference
Four-wheel Drive (4WD) tractorReference
Built in Winnipeg, Manitoba, CanadaReference
Original price was $49,000 in 1977Reference
Four-wheel driveReference
Final drivesplanetaryReference
Articulated power steeringReference
Hydraulic disc brakesReference
Cab standard with available heater and air-conditioning.Reference
Engine
Cummins 14.0L 6-cyl dieselReference
Engine208.8 kWReference
Drawbar (claimed)156.6 kWReference
Cummins NT-855-C280Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement14.0 LReference
Bore/Stroke140 x 152 mmReference
Power208.8 kWReference
Air cleanerdual dry elementReference
Pre-heatingether injectionReference
Compression14:1Reference
Rated RPM2100Reference
Idle RPM1000-2300Reference
Torque1092.9 NmReference
Torque RPM1500Reference
Starter volts12Reference
Coolant capacity46.4 LReference
Oil capacity38.8 LReference
Transmission
12-speed gearReference
TypegearReference
Gears12 forward and 4 reverseReference
Clutch355.6mm ceramic discReference
Oil capacity20.3 LReference
Three gears, plus reverse, in four ranges.Reference
Capacities
Fuel700.2 LReference
Max capacity12700 kgReference
PTO & Hydraulics
Hydraulic system70.4 LReference
Typeopen centerReference
Capacity70.4 LReference
Pressure137.9 barReference
Valves3Reference
Pump flow88.9 lpmReference
Rear TypeIIIReference
Controlposition and depth controlReference
Rear lift (at ends)8287 kgReference
Rear lift (at 24"/610mm)5611 kgReference
Dimensions
Wheelbase330 cmReference
Weight18380 to 27500 poundsReference
Front tire24.5x32Reference
Rear tire24.5x32Reference
Ag front24.5x32Reference
Ag rear24.5x32Reference
Ag front18.4x38Reference
Ag front20.8x38Reference
Ag front30.5x32Reference
Ag rear18.4x38Reference
Ag rear20.8x38Reference
Ag rear30.5x32Reference
Length642 cmReference
Height (cab)321 cmReference
Height (exhaust)330 cmReference
Shipping8337 kgReference
Operating12474 kgReference
850 Serial Numbers
Location:Serial number plate on the front console.Reference
1973085101Reference
1974850 050001Reference
1975850 3050501Reference
1976850 76 051101Reference
1977850 77 051901Reference
Final850 77 052350Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps75Reference
Batteries2Reference
Battery volts12Reference
Speeds
With 24.5x32 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
