Tractor · 1980Unverified

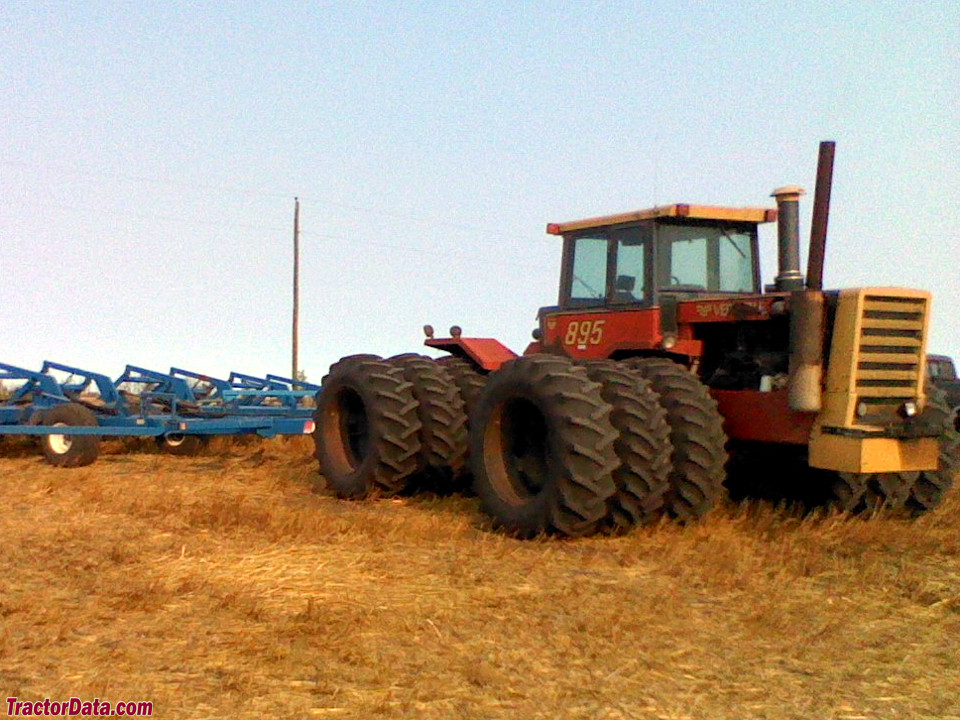

Versatile 895
Versatile 895 — 3 Series · 310 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
310 hp
Weight
11067 kg
Hover a source tag to verify
Overview
ManufacturerVersatileReference
Four-wheel Drive (4WD) tractorReference
Built in Winnipeg, Manitoba, CanadaReference
Original price was $118,000 in 1984Reference
Four-wheel driveReference
Final drivesoutboard planetaryReference
Articulated power steeringReference
Hydraulic disc brakesReference
Cab with air-conditioning.Reference
Engine
Cummins 14.0L 6-cyl dieselReference
Engine231.2 kWReference
Drawbar (claimed)194.6 kWReference
Cummins NTA-855-A310Reference
aftercooled turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement14.0 LReference
Bore/Stroke140 x 152 mmReference
Power231.2 kWReference
Air cleanerdual dry element with precleanerReference
Compression14.1:1Reference
Rated RPM2100Reference
Idle RPM1000-2300Reference
Torque1328.9 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity57.7 LReference
Oil capacity33.1 LReference
Transmission
12-speed gearReference
TypegearReference
Gears12 forward and 4 reverseReference
Clutch355.6mm ceramic discReference
Oil capacity20.3 LReference
Three gears, plus reverse, in four ranges.Reference
Capacities
Fuel700.2 LReference
PTO & Hydraulics
Hydraulic system79.5 LReference
Typeopen centerReference
Capacity79.5 LReference
Pressure155.1 barReference
Valves4Reference
Pump flow89.3 lpmReference
Steering flow98.8 lpmReference
Rear Type4N/3Reference
Dimensions
Wheelbase330 cmReference
Weight11067 kgReference
Front tire24.5x32Reference
Rear tire24.5x32Reference
Ag front24.5x32Reference
Ag rear24.5x32Reference
Ag front30.5x32Reference
Ag front18.4x38Reference
Ag front20.8x38Reference
Ag rear30.5x32Reference
Ag rear18.4x38Reference
Ag rear20.8x38Reference
Length642 cmReference
Width386 cmReference
Height (cab)321 cmReference
Max weight14742 kgReference
895 Serial Numbers
Location:Serial number plate on the cab door post.Reference
1980895 80 090001Reference
1981895 81 090351Reference
1982895 82 091201Reference
1983895 83 092101Reference
1984895 84 093275Reference
Final895 84 093775Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps75Reference
Batteries2Reference
Battery CCA900Reference
Battery volts12Reference
Battery Group80Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
