Tractor · 1972Unverified

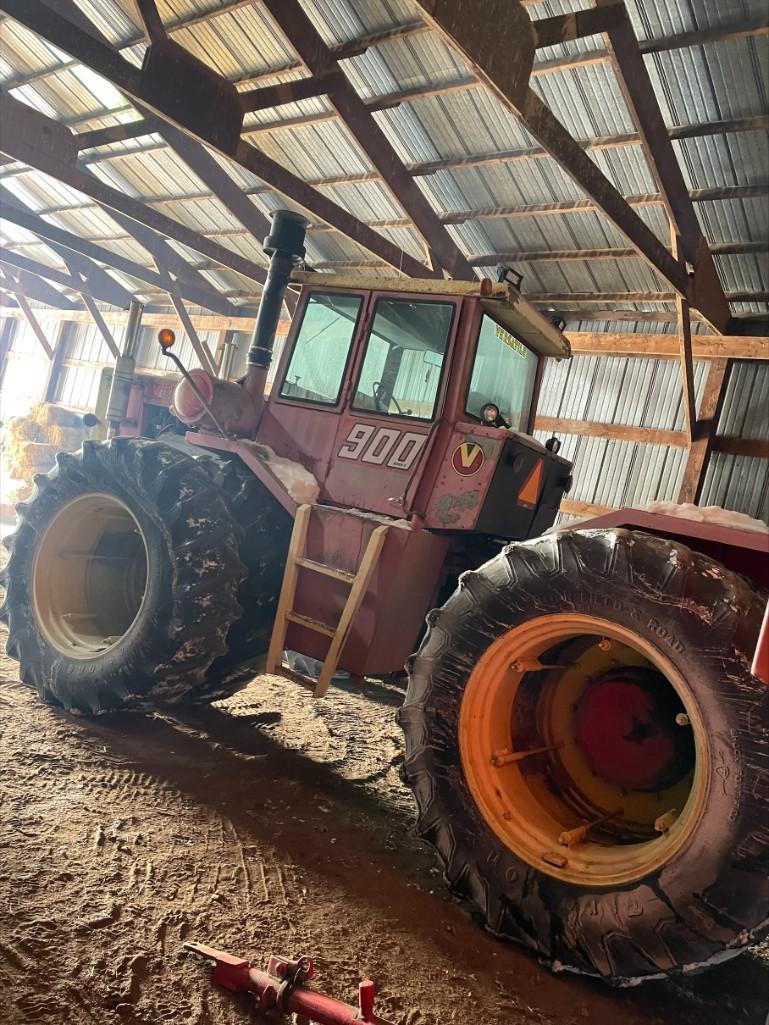

Versatile 900 Series II
Versatile 900 Series II — Model year 1972-19751976-1977 · 295 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
295 hp
Weight
17920 to 28500 pounds
Hover a source tag to verify
Overview
ManufacturerVersatileReference
Four-wheel Drive (4WD) tractorReference
Built in Winnipeg, Manitoba, CanadaReference
Original price was $51,000 in 1977Reference
Four-wheel driveReference
Final drivesplanetaryReference
Articulated power steeringReference
Hydraulic disc brakesReference
Cab standard with available heater and air-conditioning.Reference
Engine
Cummins 14.8L 8-cyl dieselReference
Engine220.0 kWReference
Drawbar (claimed)164.1 kWReference
Cummins V-903-C295Reference
dieselReference
8-cylinderReference
liquid-cooled V8Reference
Displacement14.8 LReference
Bore/Stroke140 x 121 mmReference
Power220.0 kWReference
Air cleanerdual dry elementReference
Pre-heatingether injectionReference
Compression16.5:1Reference
Rated RPM2400Reference
Idle RPM1000-2640Reference
Torque957.3 NmReference
Torque RPM1800Reference
Starter volts12Reference
Coolant capacity50.2 LReference
Oil capacity32.2 LReference
Transmission
12-speed gearReference
TypegearReference
Gears12 forward and 4 reverseReference
Clutch355.6mm ceramic discReference
Oil capacity20.3 LReference
Three gears, plus reverse, in four ranges.Reference
Capacities
Fuel700.2 LReference
Max capacity13154 kgReference
PTO & Hydraulics
Hydraulic system70.4 LReference
Typeopen centerReference
Capacity70.4 LReference
Pressure137.9 barReference
Valves3Reference
Pump flow101.8 lpmReference
Steering flow98.4 lpmReference
Rear TypeIIIReference
Controlposition and depth controlReference
Rear lift (at ends)8287 kgReference
Rear lift (at 24"/610mm)5611 kgReference
Dimensions
Wheelbase330 cmReference
Weight17920 to 28500 poundsReference
Front tire24.5x32Reference
Rear tire24.5x32Reference
Ag front24.5x32Reference
Ag rear24.5x32Reference
Ag front18.4x38Reference
Ag front20.8x38Reference
Ag front30.5x32Reference
Ag rear18.4x38Reference
Ag rear20.8x38Reference
Ag rear30.5x32Reference
Length642 cmReference
Height (cab)321 cmReference
Height (exhaust)330 cmReference
Shipping8128 kgReference
Operating12927 kgReference
900 Serial Numbers
Location:Serial number plate on the console inside the cab.Reference
1972090100Reference
19780901301Reference
1979900 0500800Reference
1975900 3070301Reference
1976900 76 070801Reference
1977900 77 071401Reference
Final900 77 071500Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps75Reference
Batteries2Reference
Battery volts12Reference
Speeds
With 24.5x32 tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
