Tractor · 1983Unverified

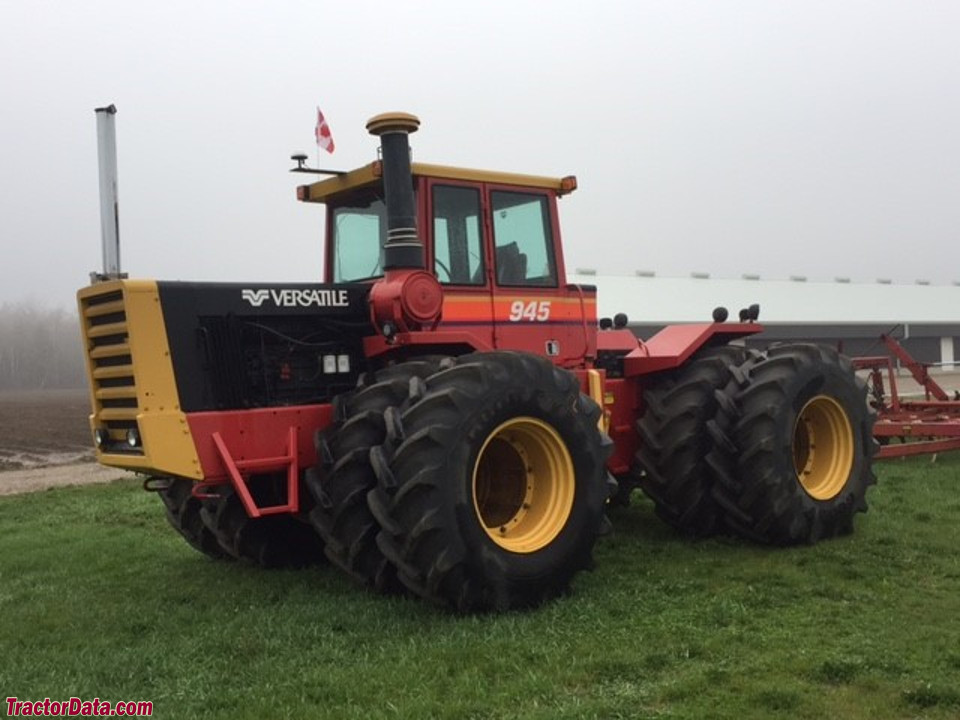

Versatile 945

Name: Versatile 945
Brand: Versatile

Versatile 945 — 3 Series · 335 hp. Reference specifications; pending source verification.

The Versatile 945 is a tractor model with a rating of approximately 335 horsepower, placing it at the high-power end of its class. It was manufactured between 1983 and 1984. The tractor features a 6-cylinder turbocharged diesel liquid-cooled engine, mated to a 12-speed gearbox with four-wheel drive. Its operating weight is listed as 11,022 kg, suitable for operations covering 1,500 acres or more.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

335 hp

Weight

11022 kg

Catalogue coverage

Variants represented

Richest spec table

58 rows

Recorded power

335 hp

Recorded weight

11022 kg

Transmissions

12-speed

Production years

1983-1984

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerVersatileReference

Four-wheel Drive (4WD) tractorReference

Built in Winnipeg, Manitoba, CanadaReference

Original price was $140,000 in 1984Reference

Drive4x4 4WDReference

Articulated power steeringReference

Hydraulic disc brakesReference

Cab standard with air-conditioning.Reference

Engine

Cummins 14.0L 6-cyl dieselReference

Engine249.8 kWReference

Cummins NTA-855-A335Reference

aftercooled turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement14.0 LReference

Bore/Stroke140 x 152 mmReference

Power249.8 kWReference

Air cleanerdual dry element with precleanerReference

Rated RPM2100Reference

Oil capacity39.7 LReference

Coolant capacity57.7 LReference

Transmission

12-speedReference

Gears12 forward and 4 reverseReference

Oil capacity20.3 LReference

Capacities

Fuel700.2 LReference

PTO & Hydraulics

Hydraulic system79.5 LReference

Typeopen centerReference

Capacity79.5 LReference

Pressure155.1 barReference

Valves4Reference

Pump flow89.3 lpmReference

Steering flow98.8 lpmReference

Rear Type4N/3Reference

Dimensions

Wheelbase330 cmReference

Weight11022 kgReference

Front tire24.5x32Reference

Rear tire24.5x32Reference

Ag front24.5x32Reference

Ag rear24.5x32Reference

Ag front30.5x32Reference

Ag front18.4x38Reference

Ag front20.8x38Reference

Ag rear30.5x32Reference

Ag rear18.4x38Reference

Ag rear20.8x38Reference

Length642 cmReference

Width386 cmReference

Height (cab)321 cmReference

Max weight14742 kgReference

945 Serial Numbers

Location:Serial number plate on the cab door post.Reference

1983945 83 111451Reference

1984945 84 011725Reference

Final945 84 111838Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps90Reference

Speeds

With 24.5x32 tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
