Tractor · 1987Unverified

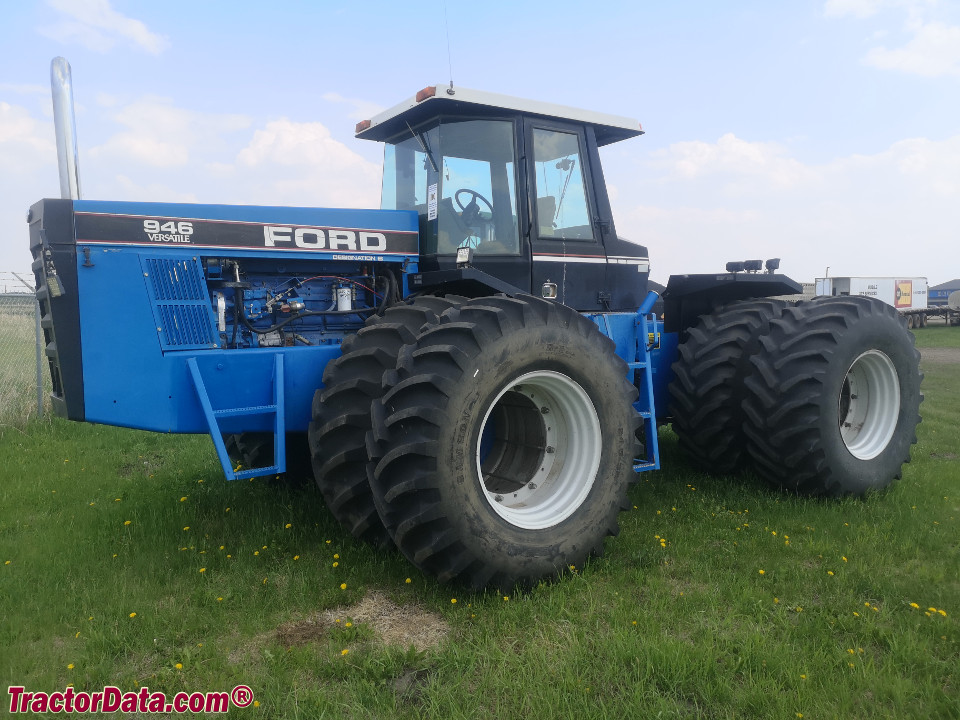

Versatile 946
Versatile 946 — 6 Series · 286 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
286 hp
Weight
14742 kg
Hover a source tag to verify
Overview
ManufacturerVersatileReference
Four-wheel Drive (4WD) tractorReference
Built in Winnipeg, Manitoba, CanadaReference
Original price was $106,000 in 1993Reference
Four-wheel driveReference
Final drivesoutboard planetaryReference
Articulated power steeringReference
Hydraulic disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Cummins 14.0L 6-cyl dieselReference
Engine242.4 kWReference
Cummins NTA-855-A325Reference
turbocharged aftercooled dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement14.0 LReference
Bore/Stroke140 x 152 mmReference
Power242.4 kWReference
Air cleanerdry dry elementReference
Pre-heatingether injectionReference
Pre-heatingblock heaterReference
Rated RPM2100Reference
Idle RPM1000-2100Reference
Torque1433.3 NmReference
Torque RPM1400Reference
Starter volts12Reference
Oil capacity37.0 LReference
Coolant capacity60.3 LReference
Transmission
12-speed constant meshReference
12-speed full power shiftReference
ManufacturerVersatileReference
Typeconstant meshReference
Gears12 forward and 4 reverseReference
Clutch394mm dry discReference
Oil capacity20.3 LReference
Four gears in three ranges, plus reverse range.Reference
Typefull power shiftReference
Gears12 forward and 2 reverseReference
Clutch228mm wet discReference
Oil capacity47.3 LReference
PTO & Hydraulics
PTO (claimed)213.3 kWReference
Hydraulic system57.9 LReference
Typeclosed center load sensingReference
Capacity57.9 LReference
Pressure165.5 barReference
Valves4 to 5Reference
Pump flow92.7 lpmReference
Steering flow98.8 lpmReference
Steering press.158.6 barReference
Rear TypeIVN/IIIReference
Controlposition controlReference
Rear lift (at 24"/610mm)5913 kgReference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Capacities
Fuel1082.5 LReference
Dimensions
Wheelbase330 cmReference
Weight14742 kgReference
Front tire24.5-32Reference
Rear tire24.5-32Reference
Ag front24.5-32Reference
Ag rear24.5-32Reference
Ag front18.4x38Reference
Ag front18.4x42Reference
Ag front20.8x38Reference
Ag front20.8x42Reference
Ag front30.5x32Reference
Ag rear18.4x38Reference
Ag rear18.4x42Reference
Ag rear20.8x38Reference
Ag rear20.8x42Reference
Ag rear30.5x32Reference
Length660 cmReference
Ground clearance40 cmReference
Steering wheel260 cmReference
946 Serial Numbers
Location:Serial number plate on the cab door post.Reference
1989946 89 D430119Reference
1990946 90 D450110Reference
1991946 91 D475066Reference
1992946 92 D485002Reference
1993946 93 D930045Reference
Final946 93 D931121Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Batteries4Reference
Battery CCA625Reference
Battery volts12Reference
Versatile 946 Height
Cab317 cmReference
Exhaust332 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
