Tractor · 1977Unverified

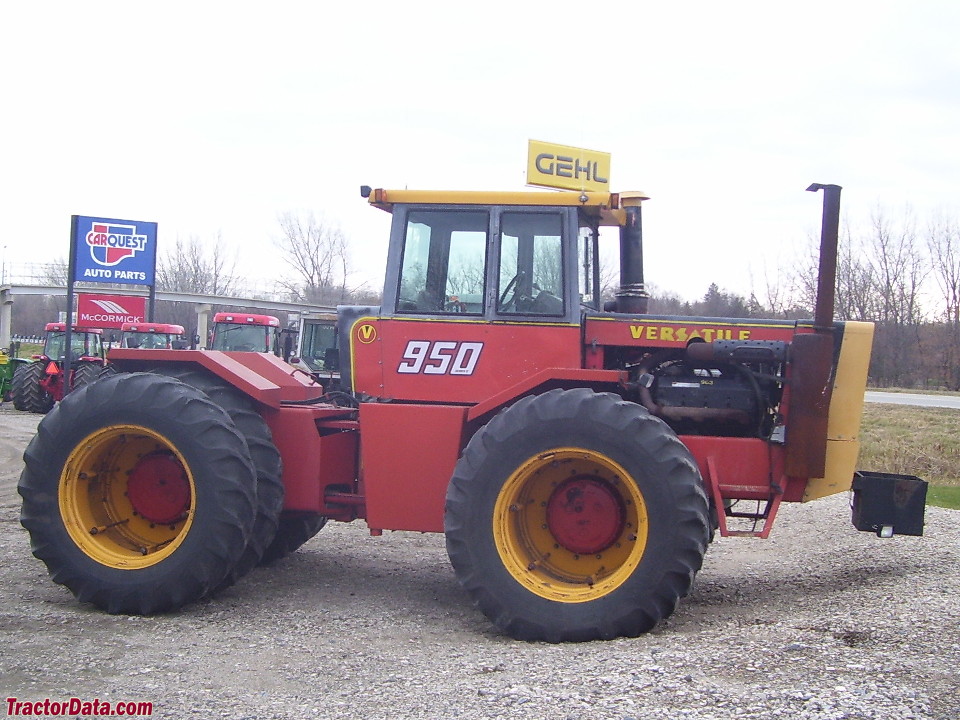

Versatile 950
Versatile 950 — 2 Series · 348 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
348 hp
Weight
18045 to 31000 pounds
Hover a source tag to verify
Overview
ManufacturerVersatileReference
Four-wheel Drive (4WD) tractorReference
Built in Winnipeg, Manitoba, CanadaReference
Original price was $113,000 in 1982Reference
Four-wheel driveReference
Final drivesoutboard planetaryReference
Articulated power steeringReference
Hydraulic disc brakesReference
Cab with air-conditioning.Reference
Engine
Cummins 14.8L 8-cyl dieselReference
Engine259.5 kWReference
Drawbar (claimed)223.7 kWReference
Cummins VT-903-C350Reference
turbocharged dieselReference
8-cylinderReference
liquid-cooled V8Reference
Displacement14.8 LReference
Bore/Stroke140 x 121 mmReference
Power259.5 kWReference
Air cleanerdual dry elementReference
Pre-heatingether injectionReference
Compression15.5:1Reference
Rated RPM2400Reference
Idle RPM1000-2640Reference
Torque1149.9 NmReference
Torque RPM1800Reference
Starter volts12Reference
Coolant capacity51.1 LReference
Oil capacity32.2 LReference
Transmission
12-speed gearReference
TypegearReference
Gears12 forward and 4 reverseReference
Clutch355.6mm ceramic discReference
Oil capacity20.3 LReference
Three gears, plus reverse, in four ranges.Reference
Capacities
Fuel700.2 LReference
Max capacity14742 kgReference
PTO & Hydraulics
Hydraulic system70.4 LReference
Typeopen centerReference
Capacity70.4 LReference
Pressure137.9 barReference
Valves3Reference
Pump flow93.1 lpmReference
Steering flow102.2 lpmReference
Rear TypeIIIReference
Controlposition and depth controlReference
Rear lift (at ends)8287 kgReference
Rear lift (at 24"/610mm)5611 kgReference
Dimensions
Wheelbase330 cmReference
Weight18045 to 31000 poundsReference
Front tire24.5x32Reference
Rear tire24.5x32Reference
Ag front24.5x32Reference
Ag rear24.5x32Reference
Ag front18.4x38Reference
Ag front20.8x38Reference
Ag front30.5x32Reference
Ag rear18.4x38Reference
Ag rear20.8x38Reference
Ag rear30.5x32Reference
Length642 cmReference
Height (cab)321 cmReference
Height (exhaust)330 cmReference
Shipping8185 kgReference
Operating14061 kgReference
950 Serial Numbers
Location:Serial number plate on the cab door post.Reference
1977950 77 110301Reference
1978950 78 110676Reference
1979950 79 110801Reference
1980950 80 110851Reference
1981950 81 111051Reference
1982950 82 111201Reference
Final950 82 111269Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps75Reference
Batteries2Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
